We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
Performance
Battery, Range, and Charging
The battery has a gross capacity of 30.5 kWh and a net usable capacity of 28.0 kWh, with a 2.5 kWh buffer (8.2%) for battery protection. With a nominal voltage of 360 volts, the system is classified as a 400-volt battery system.
This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.
For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 69 kW. Charging from 0% to 100% takes approximately 92 minutes, while a typical 10% to 80% charge takes about 25 minutes with an average charging speed of 47 kW.
Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 0% to 60%. This results in an effective charging speed, including time lost, of 47 kW, with each charging session taking about 21 minutes and 24 seconds.
Onboard Charger
The standard onboard charger supports up to 6.6 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 4 hours and 14 minutes with a standard home setup.
Charge Port
The charge port is located on the left rear side, making it easy to use charge stations where you need to back up into the charger.
Drivetrain
The Hyundai IONIQ Electric 28 kWh has a front-wheel drive system supported by one motor on the front axle.
The motor used is Permanent Magnet Synchronous Motor.
Suspension
en drivetrain.suspension.standard.frontconstruction_macphersonstrut.rearconstruction_torsionbeam.frontdampers_notset.reardampers_notset.frontspring_coil.rearspring_coil
The Standard suspension has a fixed height and damping characteristics.
Ground clearance with this setup is 140 mm.
Drive Modes
The Hyundai IONIQ Electric 28 kWh lets the user select different drive modes that affect the car's handling.
The driver can choose between 3 modes:
- Eco: Comfort steering and efficient throttle.
- Normal: Balanced steering and throttle.
- Sport: Dynamic steering and throttle.
Brakes
The Hyundai IONIQ Electric 28 kWh is equipped with cast-iron disc brakes on both the front and rear.
The front discs measure 280 mm, while the rear discs are 284 mm.
Regenerative Braking
Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen.
Drivers can also adjust the regenerative braking strength when lifting off the accelerator. There are four levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.
The maximum regenerative braking power is 50 kW.

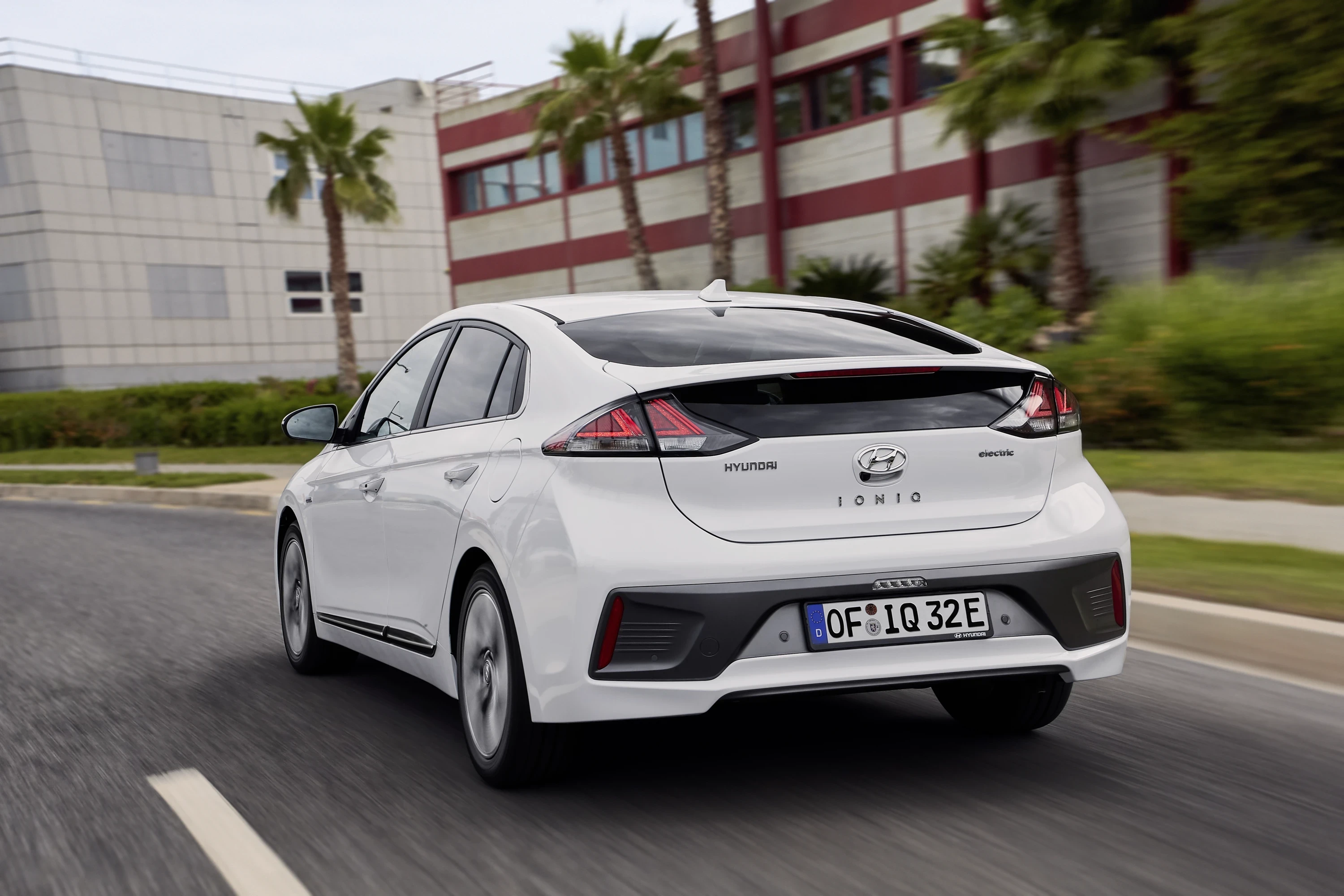

Exterior
The Hyundai IONIQ Electric 28 kWh, with dimensions of 4470 mm in length, 1820 mm in width, and 1450 mm in height, falls into the C-segment, also known as compact cars.
The Hyundai IONIQ Electric 28 kWh is available in a total of 5 paint colors, including both solid and metallic options.
You can select from multiple wheel designs, all available in the same size, on the Hyundai IONIQ Electric 28 kWh. The available tire and wheel combinations include:
- 205/55 tires on 16" rims
The car has four regular doors and a hatchback-style liftgate.
There is only one roof option for this model.
The standard is just a regular roof.
Hyundai IONIQ Electric 28 kWh
Interior
Seats
The Hyundai IONIQ Electric 28 kWh accommodates five passengers with two front seats and a three-seat bench in the rear.
First Row Seats
The Hyundai IONIQ Electric 28 kWh offers a single type of front seat.
The following functionalities are available on the seat:
- Fore-and-aft adjustment (manually adjustable)
- Recline adjustment (manually adjustable)
- Height adjustable headrest
- Heating
Available in:
- Black/Gray fabric upholstering
Second Row Seat
The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space.
Additional functionalities include:
- Height adjustable headrest (standard for outer seats)
- ISOFIX (standard for outer seats)
Interior Storage
The Hyundai IONIQ Electric 28 kWh has the following interior storage:
- Glove Compartment: Located in the dashboard in front of the passenger.
- Center Console: A storage compartment is located beneath the front center armrest.
- Door Pockets: The front and rear doors include integrated storage pockets.
Interior Lighting
The Hyundai IONIQ Electric 28 kWh offers several interior lighting options.
- Ambient Lighting: Extends across the dashboard.
Climate System
There is one climate system available:
- 1-zone climate system: Controls a single zone for the whole cabin.
This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.

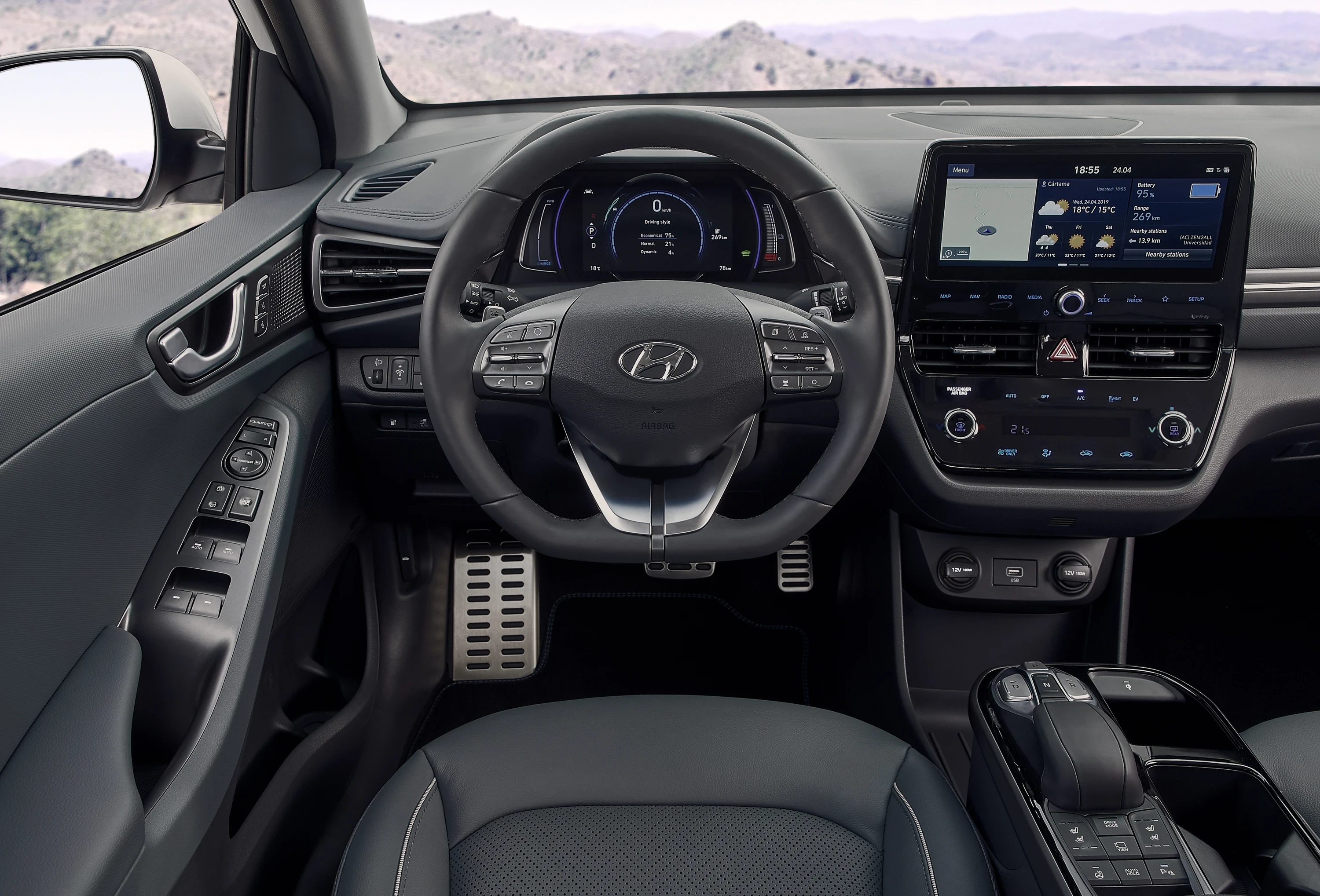

User Interface and Control
The Hyundai IONIQ Electric 28 kWh features a screen-focused control interface with limited physical buttons and no stalks, providing a minimalist approach to vehicle controls. This design prioritizes touchscreen interaction, which may appeal to tech-savvy users but could be less intuitive for those accustomed to traditional controls.
Key screen details:
- en uicontrols.screen.info.InCenterOfDash.touch
The Hyundai IONIQ Electric 28 kWh does not include a head-up display, so driving information such as speed and navigation cues is not projected into the driver’s line of sight on the windshield.
Hyundai IONIQ Electric 28 kWh
Steering Wheel
The Hyundai IONIQ Electric 28 kWh is equipped with a single type of steering wheel:
The steering wheel is adjustable for both tilt and telescope. The adjustment is manual.
Design: Circular flat-bottom
Controls: Physical buttons, Scroll wheels
Heating: Heated (standard)
From the steering wheel you can control:
- Audio control
- Phone Controls: Buttons on the steering wheel allow you to answer, end, and manage phone calls.
- Cruise Control: A stalk or button on the steering wheel allows you to set and adjust the cruise control speed.
- Voice Control: A button on the steering wheel activates the voice control system.
- Drive Mode Selector: A dedicated control allows you to switch between different drive modes.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
Voice control is standard.
Infotainment
The Hyundai IONIQ Electric 28 kWh features a proprietary infotainment system with basic navigation and vehicle information.
Navigation System
With the optional in-car navigation system, you have all the assistance you need to reach your destination effortlessly.
Phone Mirroring
The Hyundai IONIQ Electric 28 kWh supports Android Auto and Apple CarPlay, allowing you to mirror your phone's screen on the car's display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
The Hyundai IONIQ Electric 28 kWh has one sound system option:
- Standard Audio: Features six speakers.
The model has 1 USB-A connections as standard.
Mobile App
The Hyundai IONIQ Electric 28 kWh has a mobile app for Android and iOS to manage and monitor the vehicle remotely. Features:
- Locate Your Vehicle: Check the current location of your car.
- Preconditioning: Preheat or cool your car before you start your journey.
- Lock & Unlock: Securely lock or unlock your car doors.
- Adjust Charging Target: Set your desired State of Charge to start or stop charging.
- Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
Lights
Standard Headlights: These use LED technology and include corner lights that illuminate the side when turning.
The taillights use LED technology.
Advanced Driver Assistance Systems
The Hyundai IONIQ Electric 28 kWh offers standard and optional advanced driver assistance systems (ADAS).
Safety Systems
Anti-lock Braking System (ABS): Standard on the Hyundai IONIQ Electric 28 kWh, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the Hyundai IONIQ Electric 28 kWh, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.
Lane-Keeping Assist (LKA): Standard on the Hyundai IONIQ Electric 28 kWh, this system helps prevent the vehicle from drifting out of its lane.
It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Rear Cross Traffic Alert (RCTA): Standard on the Hyundai IONIQ Electric 28 kWh, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Forward Collision Warning (FCW): Standard on the Hyundai IONIQ Electric 28 kWh, this driver assist system helps drivers avoid or mitigate frontal collisions.
Automatic Emergency Braking (AEB): Standard on the Hyundai IONIQ Electric 28 kWh, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Blind-spot Monitoring (BSM): Standard on the Hyundai IONIQ Electric 28 kWh, this system helps detect traffic in blind spots.
Driving Automation
With the standard system the model offers no driving automation.
- Cruise control.
Safety
The Hyundai IONIQ Electric 28 kWh is equipped with the following airbags:
- Front airbags for the driver and front passenger
- Side curtain airbags for both the first and second rows
- Side airbags for the driver and front passenger
The front and rear seatbelts are equipped with pyrotechnic pretensioners and load limiters. In the event of a collision, the pretensioners tighten the seatbelts to secure occupants firmly in their seats, while the load limiters allow a controlled amount of webbing to extend, reducing the risk of injury from excessive force.
Security and Access Technologies
The Hyundai IONIQ Electric 28 kWh is equipped with advanced security features to protect you and your vehicle. These include:
- Keyless Entry and Start: Unlock and start the car with the key in your pocket or bag.
- Alarm System: An integrated alarm system monitors for unauthorized entry or tampering and triggers an alert.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 350 liters (12.4 CU FT). With the rear seat folded down, this expands to 1410 liters (49.8 CU FT).
The vehicle’s maximum weight is 1880 kg (4145 lbs), with a base weight of 1475 kg (3252 lbs). This allows for a maximum load of 405 kg (893 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
This model is not available with a towbar and cannot tow a trailer.
