Volkswagen ID. Buzz GTX LWB

Volkswagen ID. Buzz GTX LWB is an all-electric MPV with a WLTP range of up to 450 km (280 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The Volkswagen ID. Buzz GTX LWB delivers a solid performance with a maximum power of 250 kW (340 hp / 335 bhp) and a total torque of 560 Nm (413 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 6.5 seconds and reaches a top speed of 160 km/h (99 mph), making it competitive within its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 91.0 kWh and a net usable capacity of 86.0 kWh, providing a 5.0 kWh buffer (5.5%) for battery protection. With a nominal voltage of 350 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range is 450 km (280 miles), with an energy consumption rate of 19.1 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 200 kW. Charging from 0% to 100% takes approximately 57 minutes, while a more typical scenario from 10% to 80% takes 33 minutes with an average charging speed of 109 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 0% to 42%. This results in an effective charging speed, including time lost, of 112 kW, with each charging session taking about 19 minutes and 24 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 28 kWh/100 km, the trip would take about 10 hours and 5 minutes, requiring six charging stops from 0% to 38%, totaling 106 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging, allowing a full charge from 0 to 100% in about 7 hours and 49 minutes using a home setup.

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Volkswagen ID. Buzz GTX LWB features an all-wheel drive system powered by two motors, one on each axle. The motors used are Induction Motors at the front axle and Permanent Magnet Synchronous Motors at the rear axle.

Suspension

Steering

Dynamic steering is an optional on the Volkswagen ID. Buzz GTX LWB, varying the steering ratio based on driving speed for enhanced control and comfort.

Brakes

The Volkswagen ID. Buzz GTX LWB uses disc brakes in the front for superior stopping power and heat dissipation, while drum brakes are employed in the rear for cost efficiency and durability. Drum brakes provide adequate performance for the rear wheels, require less maintenance, and integrate seamlessly with the vehicle’s regenerative braking system. This combination ensures optimal braking performance and cost-effectiveness, aligning with the overall efficiency goals of the EV. The front discs are 358 mm.

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving.

Exterior

The Volkswagen ID. Buzz GTX LWB is available in a total of 12 paint colors, including solid, metallic, and pearlescent options.

The Volkswagen ID. Buzz GTX LWB offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

• 235/55 tires on 19" rims front and 255/50 tires on 19" rims rear
• 235/50 tires on 20" rims front and 265/45 tires on 20" rims rear
• 235/45 tires on 21" rims front and 255/40 tires on 21" rims rear

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has two regular doors in the first row, sliding doors in the second row and a tailgate. Powered doors are a standard function for the side doors. You can choose an option to have the liftgate electrically powered. You can also have the liftgate with a kick sensor, making it possible to open it by just kicking the foot under the tailgate.

There is only one roof option for this model. The standard is just a regular roof.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

Seats

Volkswagen ID. Buzz GTX LWB is available in a six or seven-seat layout for added versatility.

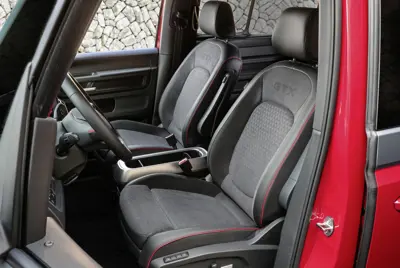

First Row Seats

The front row offers two seat types to cater to various comfort and style preferences:

The following functionalities are available on the standard seat:

• Fore-and-aft adjustment (manually adjustable)
• Height adjustable headrest
• Heating

Available in:

• Black fabric upholstering
• White microfiber/leatherette upholstering
• Green fabric upholstering
• Yellow fabric upholstering
• Orange fabric upholstering
• Blue fabric upholstering

The following functionalities are available on the comfort seat:

• Fore-and-aft adjustment (electrically adjustable)
• Heating
• Memory (standard for driver, not available for passenger)
• Adjustable lumbar support (electrically adjustable)
• Adjustable thigh support
• Massage

Available in:

• White microfiber/leatherette upholstering
• Green fabric upholstering
• Yellow fabric upholstering
• Orange fabric upholstering
• Blue fabric upholstering

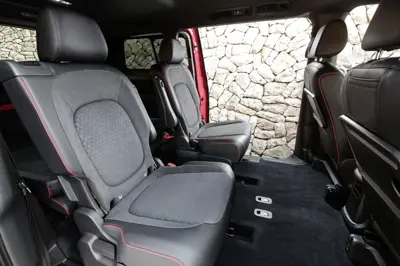

Second Row Seats

You can choose two seat types for the second row in the Volkswagen ID. Buzz GTX LWB.

The standard option is a three-seat bench with a 60:40 split where you can fold each section separately to increase the cargo space. Additional functionalities include:

The second option is two captain chairs. Additional functionalities include:

• Recline adjustment (manually adjustable)
• Heating

Third Row Seats

The third row has a two-seat bench with a 50:50 split. Again, you can fold down the seats when not used to create a larger cargo capacity.

Climate System

There is one climate system available:

• 2-zone climate system: Supports different temperatures for the driver and passenger.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Volkswagen ID. Buzz GTX LWB includes several features to enhance comfort and convenience:

• Easy Entry Function: Moves the driver seat to facilitate easier entry into the car.
• Wireless Phone Charging

User Interface and Control

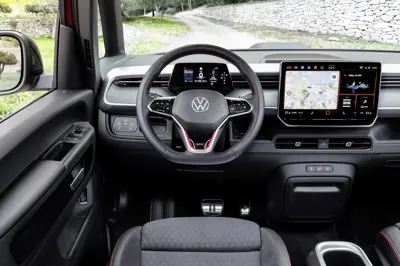

The Volkswagen ID. Buzz GTX LWB has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster mounted on the steering wheel column, and on top of the dashboard is an infotainment screen.

Key screen details:

• The screen on the steering column is 5.3 inches large
• The touch screen on the dashboard’s center is 12.9 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

Steering Wheel

The Volkswagen ID. Buzz GTX LWB is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The Volkswagen ID. Buzz GTX LWB supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The Volkswagen ID. Buzz GTX LWB comes equipped with one sound system option:

• Volkswagen Soundsystem: Features six speakers and delivers a maximum output of 450 watts.

Additionally, the model includes 5 USB-C connections as standard.

Lights

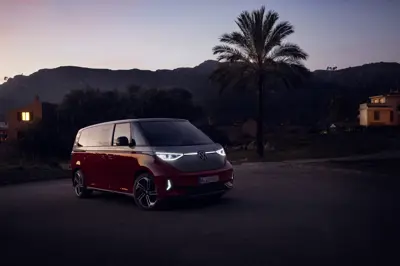

You can choose between two types of headlights for the Volkswagen ID. Buzz GTX LWB.

• Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
• LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Volkswagen ID. Buzz GTX LWB features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Efficiency Assist: A Standard feature that helps drivers anticipate driving conditions and conserve energy.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Volkswagen ID. Buzz GTX LWB, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Volkswagen ID. Buzz GTX LWB, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Volkswagen ID. Buzz GTX LWB, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Volkswagen ID. Buzz GTX LWB, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Forward Collision Warning (FCW): Standard on the Volkswagen ID. Buzz GTX LWB, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Volkswagen ID. Buzz GTX LWB, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Standard on the Volkswagen ID. Buzz GTX LWB, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Optional on the Volkswagen ID. Buzz GTX LWB, this side assist system helps to detect traffic in blind spots.

Driving Automation

The Volkswagen ID. Buzz GTX LWB offers driving automation at levels 1 or 2, depending on the equipment level.

With the level 1 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Automatic parking. (optional)

With the optional Assistantpackage plus level 2 system, you get additional driving automation features to the ones listed above:

• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.

Security and Access Technologies

The Volkswagen ID. Buzz GTX LWB is equipped with advanced security features to protect you and your vehicle. These include:

• Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 306 liters (10.8 CU FT). With the rear seat folded down, this expands to 2469 liters (87.2 CU FT). On the roof, you can load up to 100 kg (220.5 lbs).

The vehicle’s maximum weight is 3000 kg (6614 lbs), with a base weight of 2625 kg (5787 lbs). This allows for a maximum load of 375 kg (827 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1000 kg (2205 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
