Genesis Electrified GV70
Genesis Electrified GV70 is an all-electric premium SUV with a WLTP range of up to 470 km (292 miles). EVKX.net has all the details.
Genesis Electrified GV70
We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
- Performance
- Battery, Range, and Charging
- Drivetrain (suspension, brakes, steering)
- Exterior (paint colors, wheels ++)
- Interior (seats++)
- User interface and control
- Infotainment
- Lights
- Advanced driver-assistance systems
- Cargo Capacity and Towing Ability
Performance
The Genesis Electrified GV70 delivers a solid performance with a maximum power of 320 kW (435 hp / 429 bhp) and a total torque of 700 Nm (517 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.8 seconds and reaches a top speed of 235 km/h (146 mph), making it competitive within its class.
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 77.4 kWh and a net usable capacity of 74.0 kWh, providing a 3.4 kWh buffer (4.4%) for battery protection. Operating at a nominal voltage of 697 volts, it qualifies as an 800-volt battery system. This high voltage is pivotal in enabling the system’s charging capabilities.
According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range is 470 km (292 miles), with an energy consumption rate of 15.7 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 233 kW. Charging from 0% to 100% takes approximately 38 minutes, while a more typical scenario from 10% to 80% takes 16 minutes with an average charging speed of 192 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 76%. This results in an effective charging speed, including time lost, of 152 kW, with each charging session taking about 22 minutes and 59 seconds. This efficient charging capability makes the Genesis Electrified GV70 a convenient option for long-distance travel.
In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 24 kWh/100 km, the trip would take approximately 9 hours and 25 minutes. This journey would require three charging stops from 1% to 76%, with a total charging time of 66 minutes.
Onboard Charger
The onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 6 hours and 43 minutes using a home charging setup.
Charge Port
The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.
Drivetrain
The Genesis Electrified GV70 features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.
Suspension
The front suspension employs a double wishbone design, while the rear uses a Multilink setup. The standard suspension includes steel springs and hydraulic dampers.
Brakes
Regenerative Braking
The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.
Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.
Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.
Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are three levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.
The maximum regenerative power is 150 kW.
Exterior

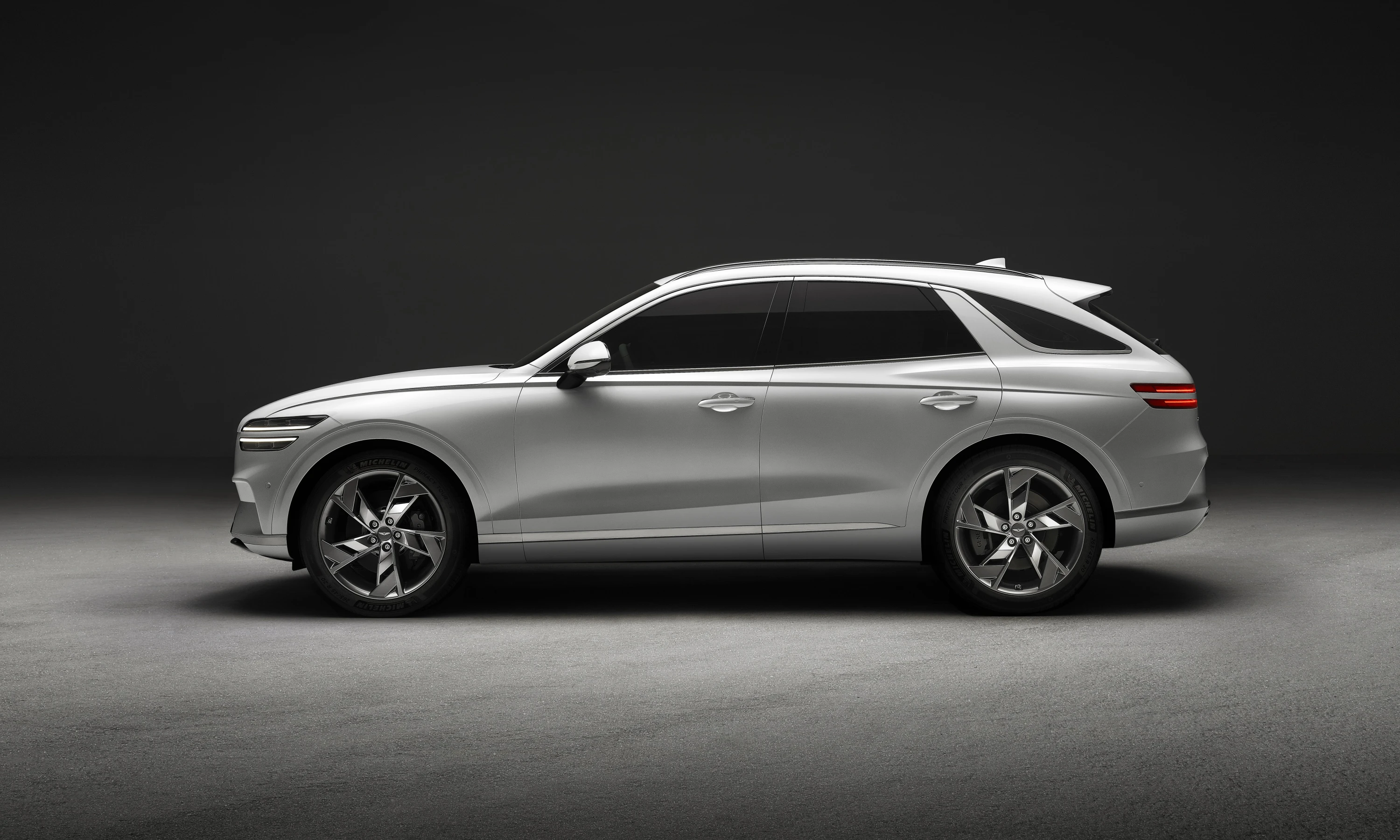

The Genesis Electrified GV70, with dimensions of 4715 mm in length, 1910 mm in width, and 1630 mm in height, falls into the Compact SUVs category, also known as C-SUVs. These offer a balance between the practicality and maneuverability of smaller vehicles and the space and versatility of larger SUVs. The Genesis Electrified GV70 is available in a total of 8 paint colors, including several striking metallic options.
The Genesis Electrified GV70 offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:
- 265/50 tires on 19" rims
- 265/45 tires on 20" rims
Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.
The car has four regular doors and a hatchback-style liftgate.
There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a large panoramic roof extending over most of the areas from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun.
Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.
Genesis Electrified GV70
Interior
There is one seat type you can select in different materials.
Seats
First Row Seats
The Genesis Electrified GV70 offers a single type of front seat.
The following functionalities are available on the **** seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustable headrest
- Heating
- Memory (standard for driver, not available for passenger)
- Electric lumbar support (electrically adjustable as an option)
- Backrest side bolsters adjustment
- Adjustable thigh support
- Ventilation (optional)
Available in:
- Black leather upholstering
- Green leather upholstering
- Black/White leather upholstering
- Black Nappa leather upholstering
- Green Nappa leather upholstering
- Black/White Nappa leather upholstering
Second Row Seat
The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:
- Recline adjustment (manually adjustable)
- Heating (standard for outer seats)
Climate System
There is one climate system available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.
Comfort Features
The Genesis Electrified GV70 includes several features to enhance comfort and convenience:
- Wireless Phone Charging
User Interface and Control

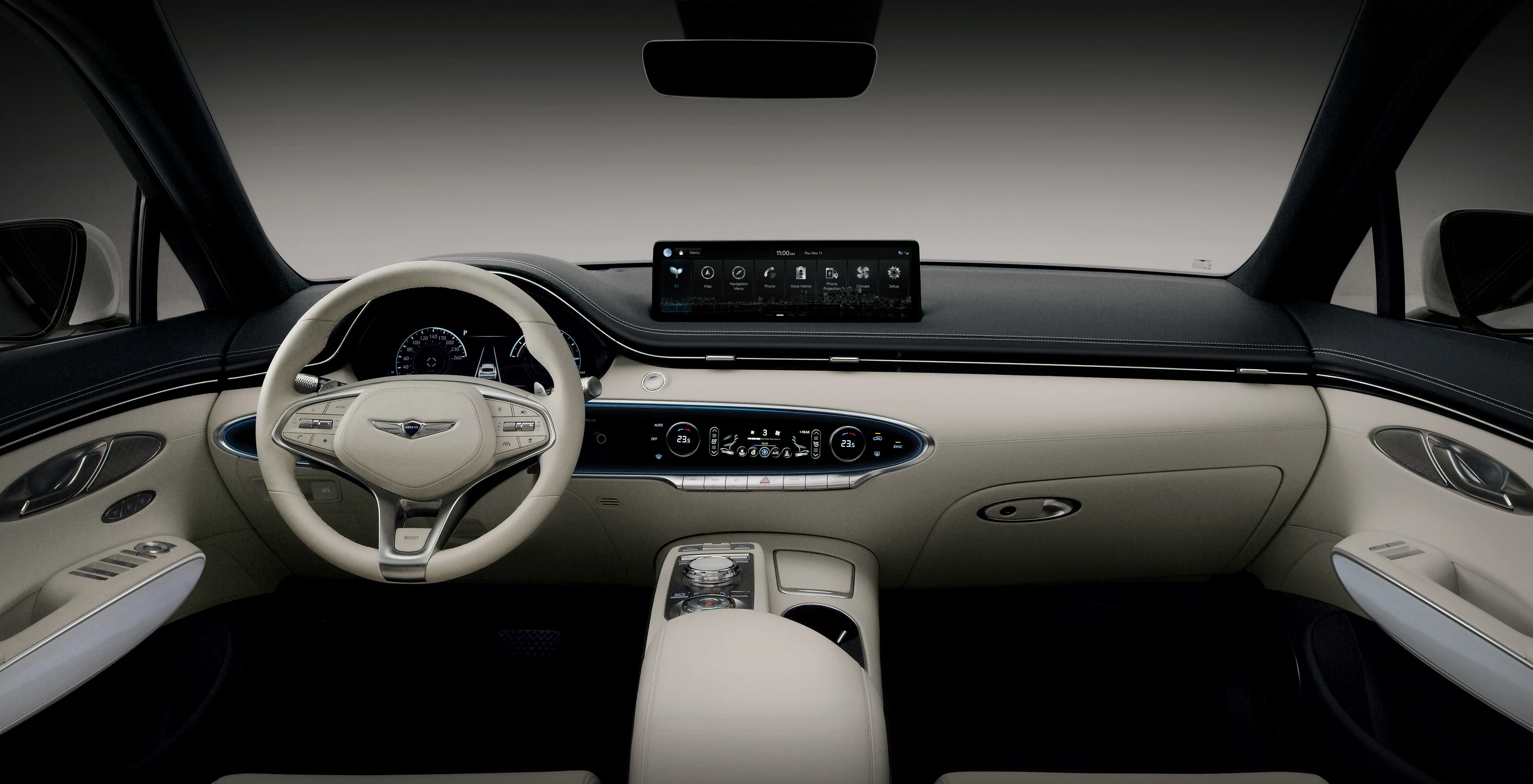

Key screen details:
- The screen behind the steering wheel integrated into the dashboard is 8.0 inches large
- The touch screen on the dashboard’s center is 14.9 inches large
- The touch screen at the bottom of the center console is 5.0 inches large
A head-up display is an optional system that projects speed and other important driver information onto the windshield.
Genesis Electrified GV70
Steering Wheel
The Genesis Electrified GV70 is equipped with a single type of steering wheel:
- Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
Infotainment
Navigation System
With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.
Phone Mirroring
The Genesis Electrified GV70 supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
The Genesis Electrified GV70 comes equipped with one sound system option:
- Bose Premium Sound System: Features eight speakers and delivers a maximum output of watts.
The model has 4 USB-A connections as standard.
Lights
Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
The taillights use LED technology, ensuring both high visibility and energy efficiency.
Advanced Driver Assistance Systems
The Genesis Electrified GV70 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.
Safety Systems
Anti-lock Braking System (ABS): Standard on the Genesis Electrified GV70, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the Genesis Electrified GV70, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.
Lane-Keeping Assist (LKA): Standard on the Genesis Electrified GV70, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Front Cross Traffic Assist (FCTA) : Standard on the Genesis Electrified GV70, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.
Rear Cross Traffic Alert (RCTA): Standard on the Genesis Electrified GV70, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Automatic Emergency Braking (AEB): Standard on the Genesis Electrified GV70, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Automatic Emergency Steering (AES): Standard on the Genesis Electrified GV70, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.
Blind-spot Monitoring (BSM) : Standard on the Genesis Electrified GV70, this side assist system helps to detect traffic in blind spots.
Driving Automation
With the level 2 system, you get the following driving automation features.
- Adaptive Cruise Control (ACC)
- Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
- Automatic Lane Change (ALC)
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 503 liters (17.8 CU FT). With the rear seat folded down, this expands to 1678 liters (59.3 CU FT). On the roof, you can load up to 100 kg (220.5 lbs). Roof rails are standard for easy mounting of a roof box or rack. Additionally, there is a frunk (front trunk) with a storage capacity of 25 liters (0.9 CU FT).
The vehicle’s maximum weight is 2845 kg (6272 lbs), with a base weight of 2235 kg (4927 lbs). This allows for a maximum load of 610 kg (1345 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1800 kg (3968 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
