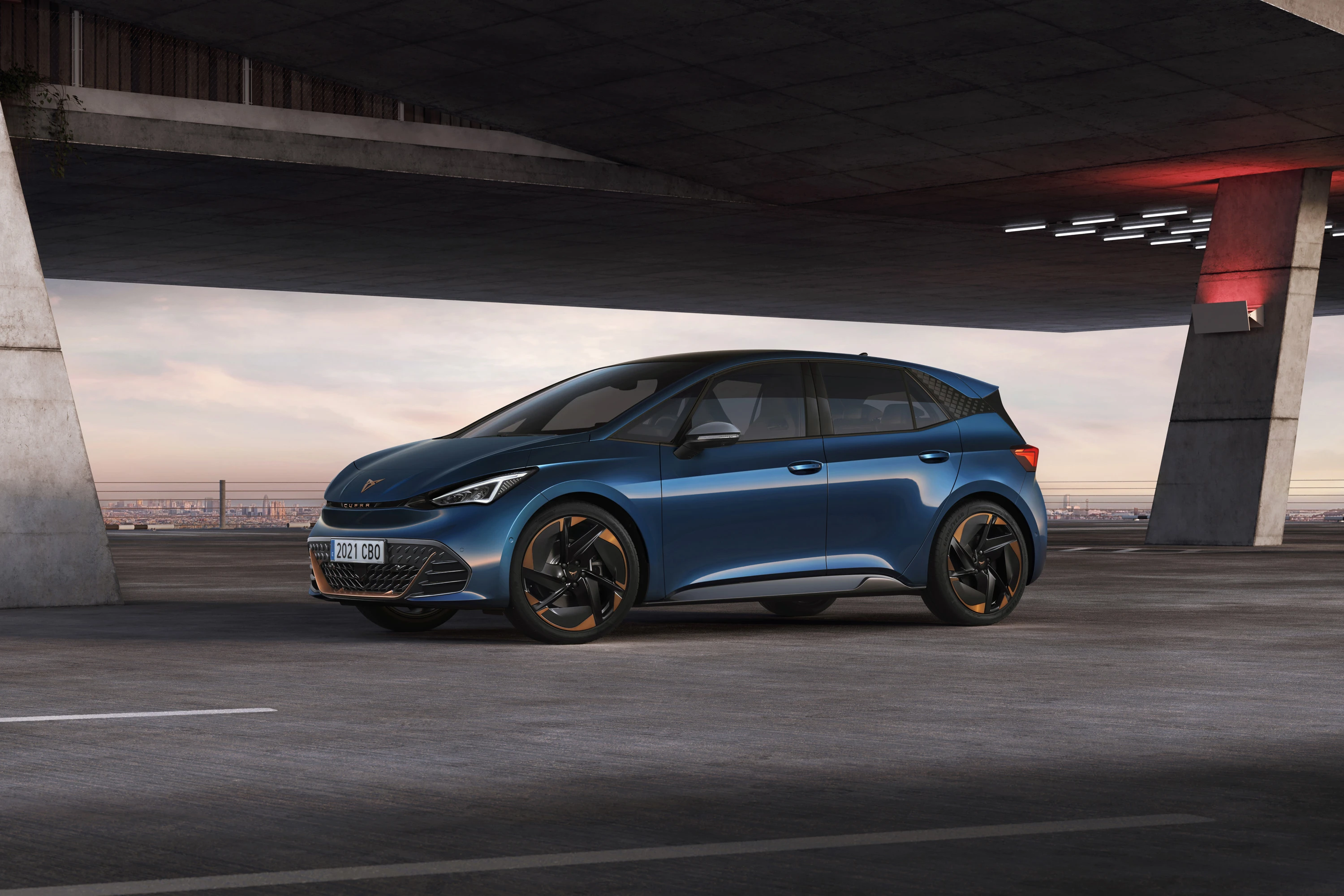

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST is an all-electric hatchback with a WLTP range of up to 548 km (341 miles). EVKX.net has all the details.

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

With overboost, the CUPRA BORN 77 e-BOOST achieves a maximum power of 170 kW (231 hp / 228 bhp). Without overboost, it delivers 150 kW (204 hp / 201 bhp). The maximum torque is 310 Nm (229 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 7 seconds and reaches a top speed of 160 km/h (99 mph), offering performance more akin to traditional internal combustion engine vehicles.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 82.0 kWh and a net usable capacity of 77.0 kWh, providing a 5.0 kWh buffer (6.1%) for battery protection. With a nominal voltage of 350 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 548 to 492 km (341-306 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 14.1 kWh/100 km for the base model and 15.7 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 120 kW. Charging from 0% to 100% takes approximately 67 minutes, while a more typical scenario from 10% to 80% takes 37 minutes with an average charging speed of 88 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 6% to 53%. This results in an effective charging speed, including time lost, of 88 kW, with each charging session taking about 25 minutes and 42 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 22 kWh/100 km, the trip would take approximately 9 hours and 58 minutes. This journey would require four charging stops from 6% to 53%, with a total charging time of 99 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 7 hours and 0 minutes using a home charging setup.

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The CUPRA BORN 77 e-BOOST has a rear-wheel drive system supported by one motor on the rear axle. The motor used are Induction Motors.

Suspension

The standard suspension has steel springs with a fixed height but an optional damping adjustment. The ground clearance with this suspension is 131 mm.

Steering

Dynamic steering is an optional on the CUPRA BORN 77 e-BOOST, varying the steering ratio based on driving speed for enhanced control and comfort.

Brakes

The CUPRA BORN 77 e-BOOST uses disc brakes in the front for superior stopping power and heat dissipation, while drum brakes are employed in the rear for cost efficiency and durability. Drum brakes provide adequate performance for the rear wheels, require less maintenance, and integrate seamlessly with the vehicle’s regenerative braking system. This combination ensures optimal braking performance and cost-effectiveness, aligning with the overall efficiency goals of the EV. The front discs are 330 mm.

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving.

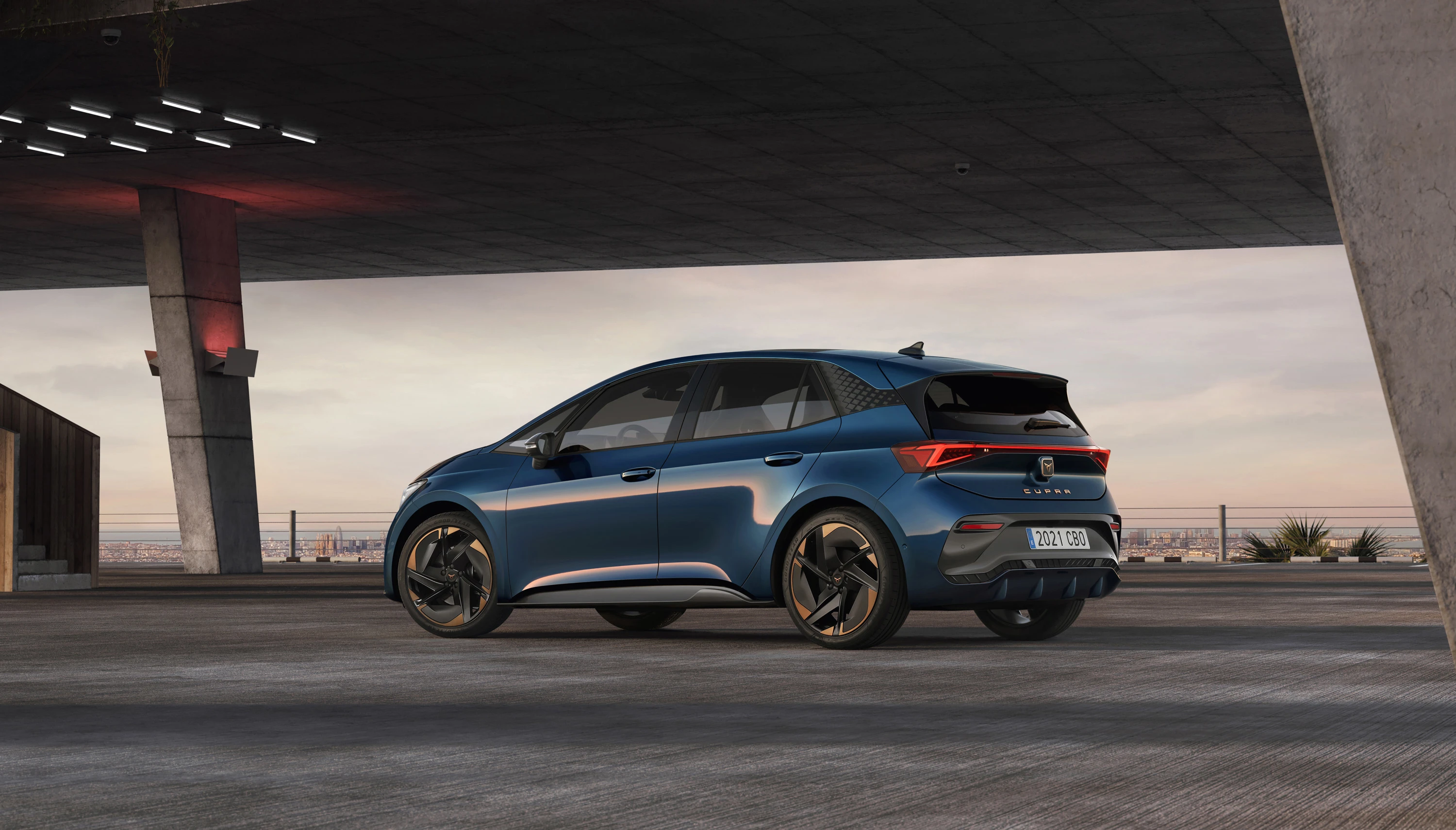

Exterior

The CUPRA BORN 77 e-BOOST, with dimensions of 4322 mm in length, 1809 mm in width, and 1540 mm in height, falls into the C-segment cars, also known as compact cars, strike a balance between size, performance, and affordability, making them versatile for a variety of drivers. The CUPRA BORN 77 e-BOOST is available in a total of 5 paint colors, including both solid and metallic options.

The CUPRA BORN 77 e-BOOST offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

  • 215/55 tires on 18" rims
  • 215/50 tires on 19" rims
  • 215/45 tires on 20" rims

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a liftgate. You can choose an option to have the liftgate electrically powered. You can also have the liftgate with a kick sensor, making it possible to open it by just kicking the foot under the tailgate.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a large panoramic roof extending over most of the areas from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST

Interior

Seats

The CUPRA BORN 77 e-BOOST accommodates five passengers with two front seats and a three-seat bench in the rear.

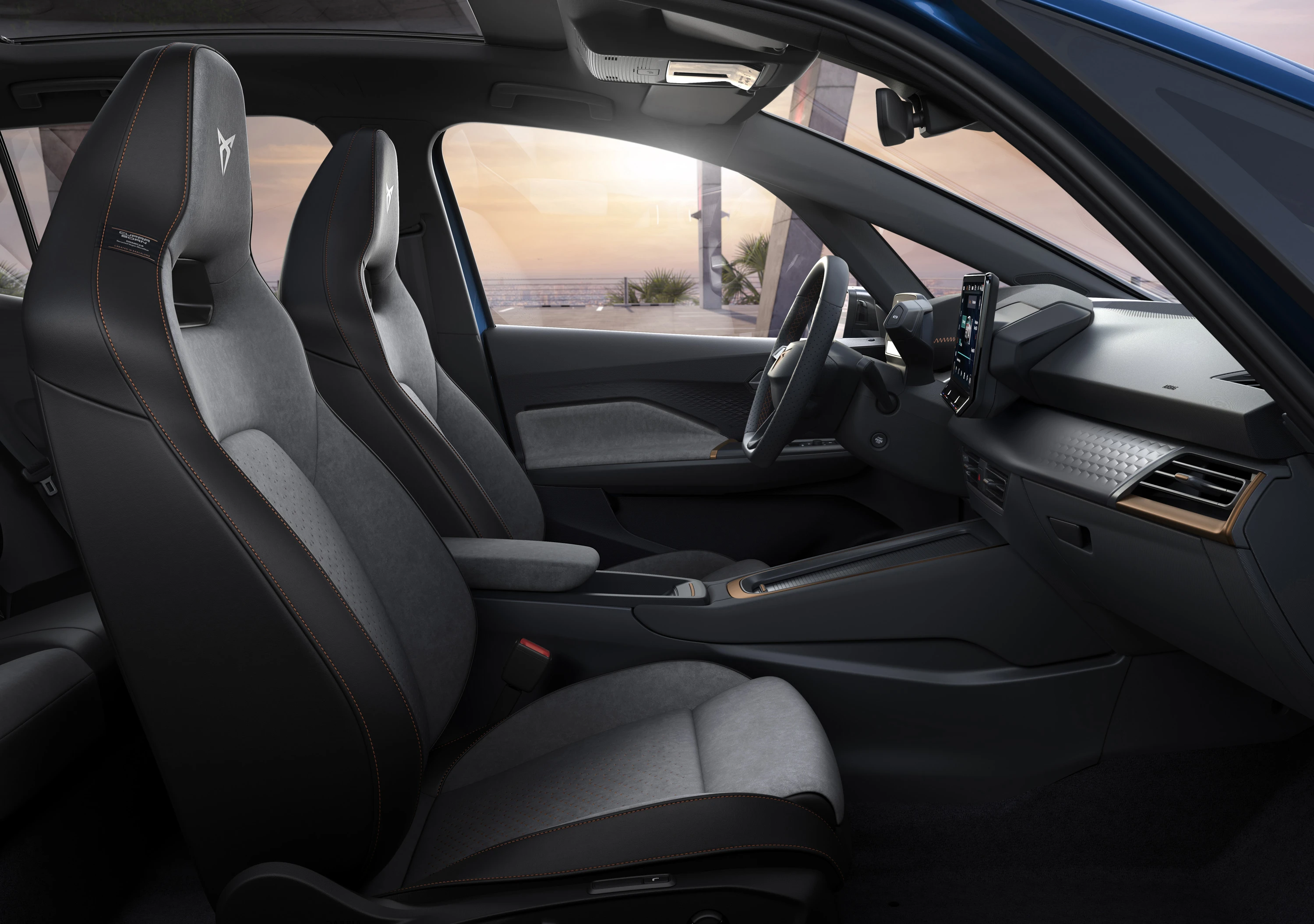

First Row Seats

The CUPRA BORN 77 e-BOOST offers a single type of front seat.

The following functionalities are available on the standard seat:

Available in:

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST

Second Row Seat

The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Climate System

There is one climate system available:

  • 2-zone climate system: Supports different temperatures for the driver and passenger.

This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.

Comfort Features

The CUPRA BORN 77 e-BOOST includes several features to enhance comfort and convenience:

  • Wireless Phone Charging

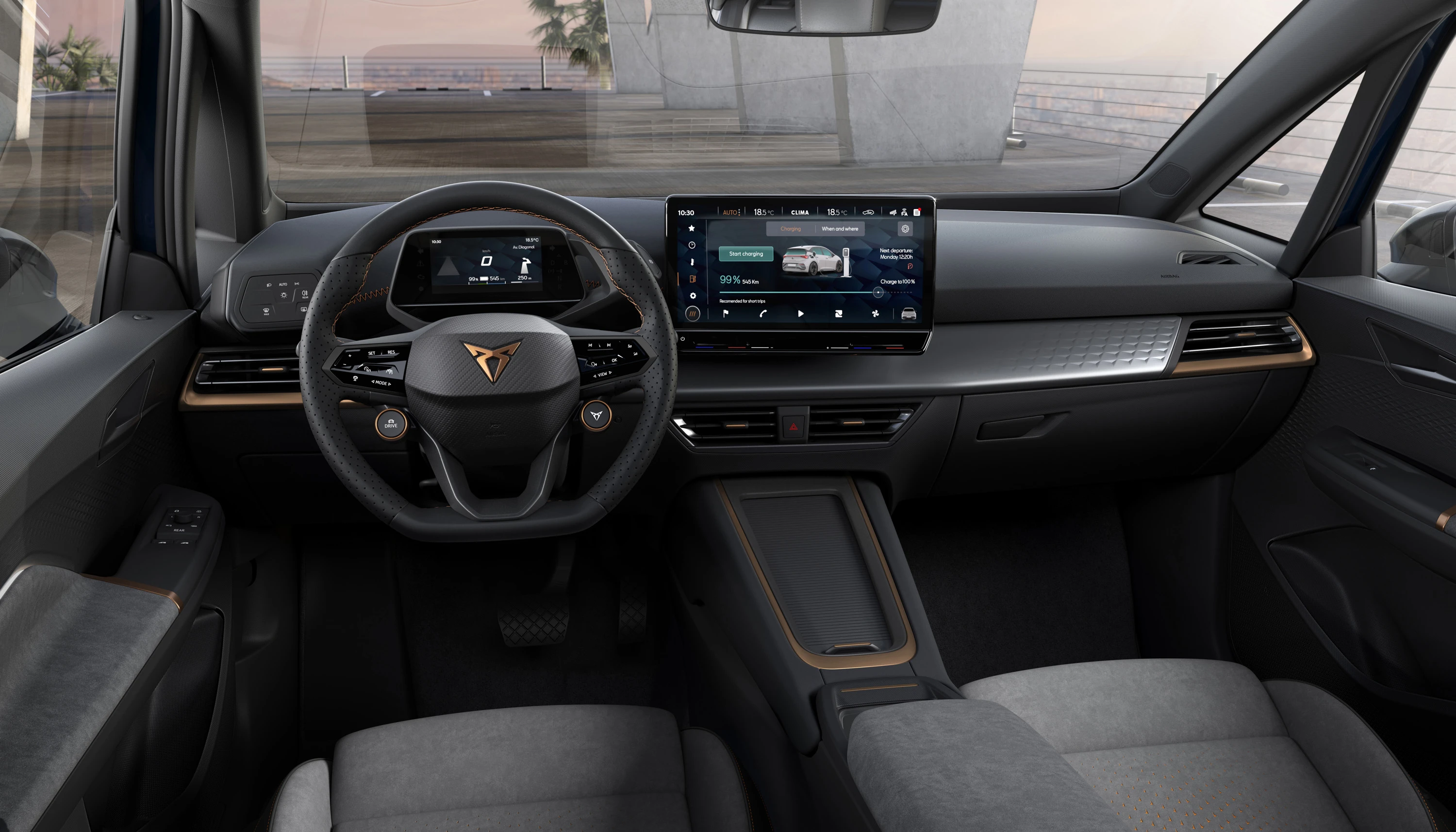

User Interface and Control

The CUPRA BORN 77 e-BOOST has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster mounted on the steering wheel column, and on top of the dashboard is an infotainment screen.

Key screen details:

  • The screen on the steering column is 5.0 inches large
  • The touch screen on the dashboard’s center is 12.0 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST

Steering Wheel

The CUPRA BORN 77 e-BOOST is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

With the an optional in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The CUPRA BORN 77 e-BOOST supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

You can choose between two sound systems for the CUPRA BORN 77 e-BOOST:

  • Sound system: Features five speakers and delivers a maximum output of 140 watts.
  • Beats Audio: Features nine speakers and delivers a maximum output of 395 watts.

Additionally, the model includes 4 USB-C connections as standard.

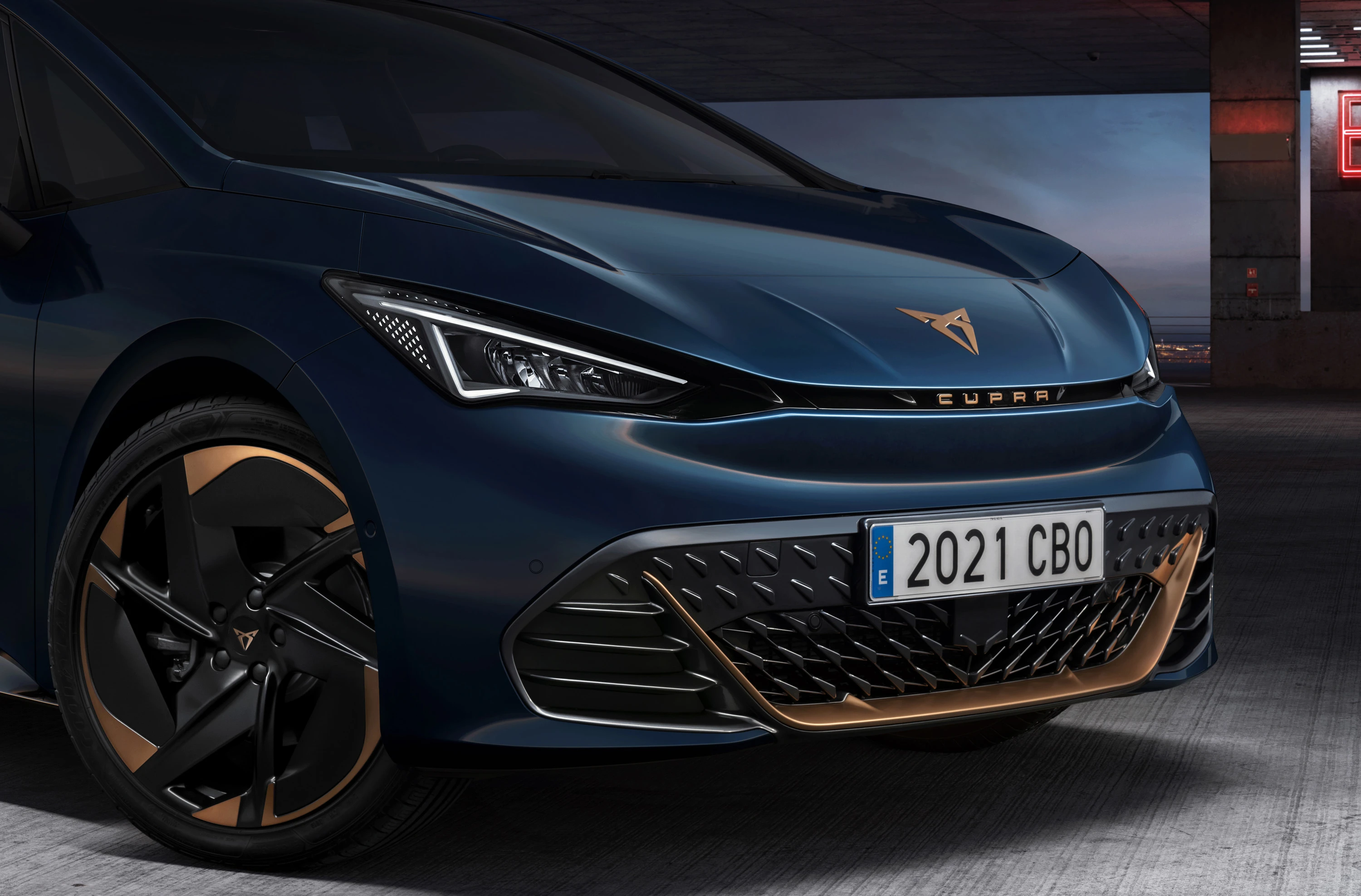

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

CUPRA BORN 77 e-BOOST

CUPRA BORN 77 e-BOOST

Advanced Driver Assistance Systems

The CUPRA BORN 77 e-BOOST features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Efficiency Assist: A Standard feature that helps drivers anticipate driving conditions and conserve energy.

Safety Systems

Anti-lock Braking System (ABS): Standard on the CUPRA BORN 77 e-BOOST, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the CUPRA BORN 77 e-BOOST, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the CUPRA BORN 77 e-BOOST, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the CUPRA BORN 77 e-BOOST, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Forward Collision Warning (FCW): Standard on the CUPRA BORN 77 e-BOOST, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the CUPRA BORN 77 e-BOOST, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Standard on the CUPRA BORN 77 e-BOOST, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Optional on the CUPRA BORN 77 e-BOOST, this side assist system helps to detect traffic in blind spots.

Driving Automation

The CUPRA BORN 77 e-BOOST offers driving automation at levels 1 or 2, depending on the equipment level.

With the standard system the model offers no driving automation.

  • Cruise control.

With the level 1 system, you get thadditional driving automation features to the ones listed above:

With the optional Assistantpackage plus level 2 system, you get additional driving automation features to the ones listed above:

Security and Access Technologies

The CUPRA BORN 77 e-BOOST is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: With the standard keyless start and optional keyless entry, you can unlock and start the vehicle seamlessly without removing the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 385 liters (13.6 CU FT). With the rear seat folded down, this expands to 1267 liters (44.7 CU FT). On the roof, you can load up to 0 kg (0.0 lbs).

The vehicle’s maximum weight is 2300 kg (5071 lbs), with a base weight of 1895 kg (4178 lbs). This allows for a maximum load of 405 kg (893 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

This model is not available with a towbar. So, to pull a trailer, you must look at other models.
