Jaguar I-Pace EV400
Jaguar I-Pace EV400 is an all-electric premium SUV with a WLTP range of up to 470 km (292 miles). EVKX.net has all the details.
Jaguar I-Pace EV400
We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
- Performance
- Battery, Range, and Charging
- Drivetrain (suspension, brakes, steering)
- Exterior (paint colors, wheels ++)
- Interior (seats++)
- User interface and control
- Infotainment
- Lights
- Advanced driver-assistance systems
- Cargo Capacity and Towing Ability
Performance
The Jaguar I-Pace EV400 delivers a solid performance with a maximum power of 294 kW (400 hp / 394 bhp) and a total torque of 696 Nm (514 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.8 seconds and reaches a top speed of 200 km/h (124 mph), making it competitive within its class.
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 90.0 kWh and a net usable capacity of 84.7 kWh, providing a 5.3 kWh buffer (5.9%) for battery protection.
Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 470 to 408 km (292-254 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 18.0 kWh/100 km for the base model and 20.8 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 104 kW. Charging from 0% to 100% takes approximately 105 minutes, while a more typical scenario from 10% to 80% takes 49 minutes with an average charging speed of 72 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 7% to 46%. This results in an effective charging speed, including time lost, of 76 kW, with each charging session taking about 26 minutes and 2 seconds.
In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 26.9 kWh/100 km, the trip would take approximately 10 hours and 47 minutes. This journey would require five charging stops from 6% to 50%, with a total charging time of 148 minutes.

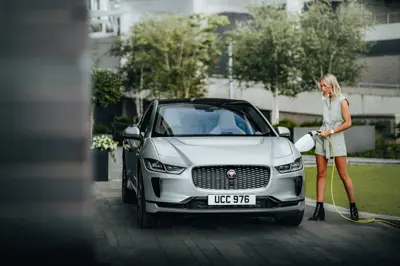

Onboard Charger
The onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 7 hours and 42 minutes using a home charging setup.
Jaguar I-Pace EV400
Charge Port
The location of the charge port is on the left front side. This location makes it easy to charge stations where you park side into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.
Drivetrain
The Jaguar I-Pace EV400 features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.
Suspension
The front suspension employs a double wishbone design, while the rear uses a Multilink setup. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 174 mm. The front suspension is double wishbone, and the rear suspension is Multilink. It uses air suspension and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 230 mm.
Brakes
The is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 350 mm, while the rear discs are 325 mm.
Regenerative Braking

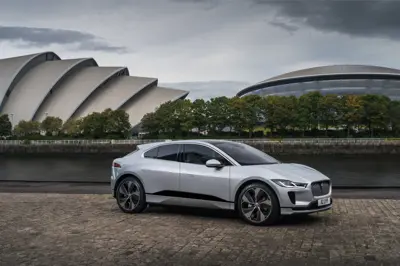

Exterior
The Jaguar I-Pace EV400, with dimensions of 4682 mm in length, 2011 mm in width, and 1566 mm in height, falls into the Compact SUVs category, also known as C-SUVs. These offer a balance between the practicality and maneuverability of smaller vehicles and the space and versatility of larger SUVs. The Jaguar I-Pace EV400 is available in a total of 9 paint colors, including both solid and metallic options.
The Jaguar I-Pace EV400 offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:
- 235/65 tires on 18" rims
- 245/55 tires on 19" rims
- 245/50 tires on 20" rims
- 255/40 tires on 22" rims
Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.
The car has four regular doors and a liftgate. The tailgate is electrically powered.
There are two different roof options to select from. The standard is just a regular roof. The standard roof includes a large panoramic glass roof extending from the front to the rear, enhancing the interior’s spacious and bright feel, thereby improving the mood and comfort of occupants. This glass is tinted to protect against heat from the sun.
Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.
Jaguar I-Pace EV400
Interior
Seats
The Jaguar I-Pace EV400 accommodates five passengers with two front seats and a three-seat bench in the rear.

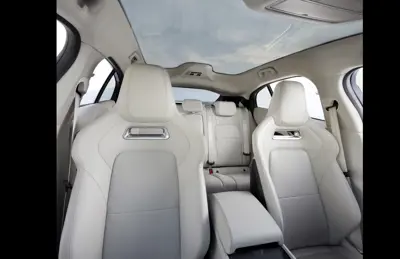

First Row Seats
The front row offers two seat types to cater to various comfort and style preferences:
The following functionalities are available on the Performance seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable)
- Seat cushion angle adjustment (electrically adjustable)
- Height adjustable headrest
- Heating
- Electric lumbar support (electrically adjustable)
Available in:
- Black leather upholstering
- Beige leather upholstering
- Black leather upholstering
- Beige leather upholstering
- Red leather upholstering
- Gray fabric upholstering
The following functionalities are available on the Sport seat:
- Fore-and-aft adjustment (manually adjustable, electrically adjustable as an option)
- Recline adjustment (manually adjustable, electrically adjustable as an option)
- Height adjustment (manually adjustable, electrically adjustable as an option)
- Seat cushion angle adjustment (optional)
- Height adjustable headrest
- Heating
- Electric lumbar support (electrically adjustable)
- Backrest side bolsters adjustment (optional)
- Seat cushion side bolsters adjustment (optional)
- Adjustable thigh support (optional)
- Ventilation (optional)
Available in:
- Black leather upholstering
- Beige leather upholstering
- Black leather upholstering
- Beige leather upholstering
- Red leather upholstering
- Gray fabric upholstering
Jaguar I-Pace EV400

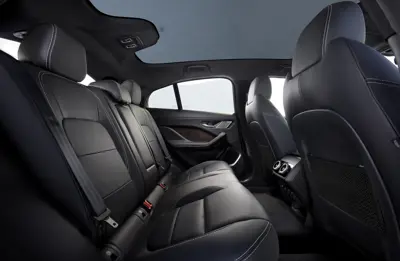

Second Row Seats
You can choose two seat types for the second row in the Jaguar I-Pace EV400.
The standard option is a three-seat bench with a 60:40 split where you can fold each section separately to increase the cargo space. Additional functionalities include:
The second option is a three-seat bench with a 40:20:40 split where you can fold each section separately to increase the cargo space. Additional functionalities include:
- Heating (standard for outer seats)
Jaguar I-Pace EV400
Climate System
Two climate system options are available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
- 4-zone climate system: Supports different temperatures for the driver, passenger, and two separate passengers in the back seat
Comfort Features
The Jaguar I-Pace EV400 includes several features to enhance comfort and convenience:
- Wireless Phone Charging

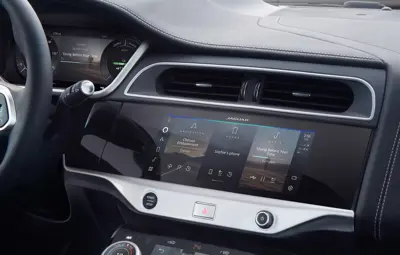

User Interface and Control
The Jaguar I-Pace EV400 has multiple integrated screens. Behind the steering wheel is a digital instrument cluster, and in the center console, there are two different infotainment screens.
Key screen details:
- The screen behind the steering wheel integrated into the dashboard is 12.3 inches large
- The touch screen at the top of the center console is 10.0 inches large
- The touch screen at the bottom of the center console is 5.5 inches large
A head-up display is an optional system that projects speed and other important driver information onto the windshield.
Jaguar I-Pace EV400
Steering Wheel
The Jaguar I-Pace EV400 is equipped with a single type of steering wheel:
- Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
Infotainment
Navigation System
With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.
Phone Mirroring
The Jaguar I-Pace EV400 supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
You can choose between two sound systems for the Jaguar I-Pace EV400:
- Meridian Sound System: Features 11 speakers and delivers a maximum output of 400 watts.
- Meridian 3D Surround: Features 16 speakers and delivers a maximum output of 750 watts.

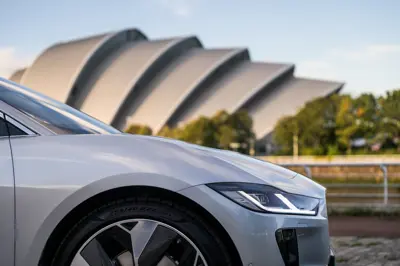

Lights
You can choose between two types of headlights for the Jaguar I-Pace EV400.
- Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
- LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.
The taillights use LED technology, ensuring both high visibility and energy efficiency.
Jaguar I-Pace EV400
Advanced Driver Assistance Systems
The Jaguar I-Pace EV400 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.
Safety Systems
Anti-lock Braking System (ABS): Standard on the Jaguar I-Pace EV400, this system prevents the wheels from locking during braking.
Lane-Keeping Assist (LKA): Standard on the Jaguar I-Pace EV400, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Automatic Emergency Braking (AEB): Standard on the Jaguar I-Pace EV400, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Driving Automation
With the standard system the model offers no driving automation.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 505 liters (17.8 CU FT). With the rear seat folded down, this expands to 1163 liters (41.1 CU FT). On the roof, you can load up to 75 kg (165.3 lbs). Additionally, there is a frunk (front trunk) with a storage capacity of 27 liters (1.0 CU FT).
A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 750 kg (1653 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
Jaguar I-Pace EV400
Availability & Pricing
The Jaguar I-Pace EV400 had its world premiere on 01.03.2018, with deliveries starting in October 2018.
