We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
Alternative Models
The BMW iX5 60 xDrive alongside these alternatives:
Performance
The BMW iX5 60 xDrive delivers a maximum power of 425 kW (578 hp / 570 bhp) and a total torque of 800 Nm (590 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.7 seconds and reaches a top speed of 220 km/h (137 mph).
Battery, Range, and Charging
The battery has a gross capacity of 147.8 kWh and a net usable capacity of 141.0 kWh, with a 6.8 kWh buffer (4.6%) for battery protection. It operates at a nominal voltage of 800 volts. The high voltage supports faster DC charging.
This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.
Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle's range varies between 645 to 845 km (401-525 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range.
The vehicle's energy consumption is rated at 21.9 kWh/100 km for the base model and 16.7 kWh/100 km for the top-tier model under the WLTP test cycle.
For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 460 kW. Charging from 0% to 100% takes approximately 92 minutes, while a typical 10% to 80% charge takes about 24 minutes with an average charging speed of 243 kW.
Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 3% to 53%. This results in an effective charging speed, including time lost, of 257 kW, with each charging session taking about 16 minutes and 27 seconds.
This places the BMW iX5 60 xDrive among the fastest-charging EVs available.
In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 22 kWh/100 km, the trip would take about 8 hours and 38 minutes, needing one charging stops from 1% to 58%, totaling 19 minutes of charging time.
Onboard Charger
The standard onboard charger supports up to 22 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 6 hours and 24 minutes with a standard home setup.
Charge Port
The location of the charge port is on the right rear side. This placement makes it easy to use charging stations that require backing up to connect.
The connector types vary between different markets. This model uses NACS for North America and CCS Combo 2 for Europe. For complete specifications for all markets, refer to the full specifications.
Bidirectional Charging
This model supports both V2L (Vehicle to Load) and V2H (Vehicle to Home) functionalities. V2L allows you to power electrical equipment requiring up to 3.7 kW of power, and even charge other electric vehicles. V2H enables the car to serve as a backup power source for your home.
Note that V2H requires specialized equipment in your home.
Drivetrain
The BMW iX5 60 xDrive features an all-wheel drive system powered by two motors, one on each axle.
The motors used are Induction Motors.
Suspension
The suspension system features a double wishbone front construction and a five-link rear construction. Both the front and rear dampers are electronically controlled, providing adaptive damping for improved ride comfort and handling. The front and rear springs are coil springs, offering a balance of comfort and performance.
The Standard suspension has steel springs with a fixed height, but you can adjust damping to fit your driving style or road condition.
Ground clearance with this setup is 199 mm.
en drivetrain.suspension.optional.frontconstruction_doublewishbone.rearconstruction_fivelink.frontdampers_electronicallycontrolled.reardampers_electronicallycontrolled.frontspring_air.rearspring_air
The suspension is fully adaptive on the front and rear axle, so height and damping can be adjusted manually and automatically.
The minimum ground clearance is 179 mm, and the maximum is 219 mm.
The Easy Entry function lowers the car's body automatically when a door is opened, facilitating easier entry and exit. Once the door closes, the body returns to its previous level.
For easier loading, you can lower the air suspension from the rear.
Steering
Progressive steering is standard on the BMW iX5 60 xDrive, automatically adjusting the steering ratio based on speed.
In addition, rear-wheel steering is optional, reducing the turning circle at low speeds.
Drive Modes
The BMW iX5 60 xDrive lets the user select different drive modes that affect the car's handling.
The driver can choose between 3 modes:
- Persona: Custom steering and throttle.
- Sport: Dynamic steering and throttle.
- Efficient: Balanced steering and efficient throttle.
Brakes
The BMW iX5 60 xDrive is equipped with cast-iron disc brakes on both the front and rear.
Regenerative Braking
You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.Drivers can also adjust the regenerative braking strength when lifting off the accelerator, choosing between three levels.

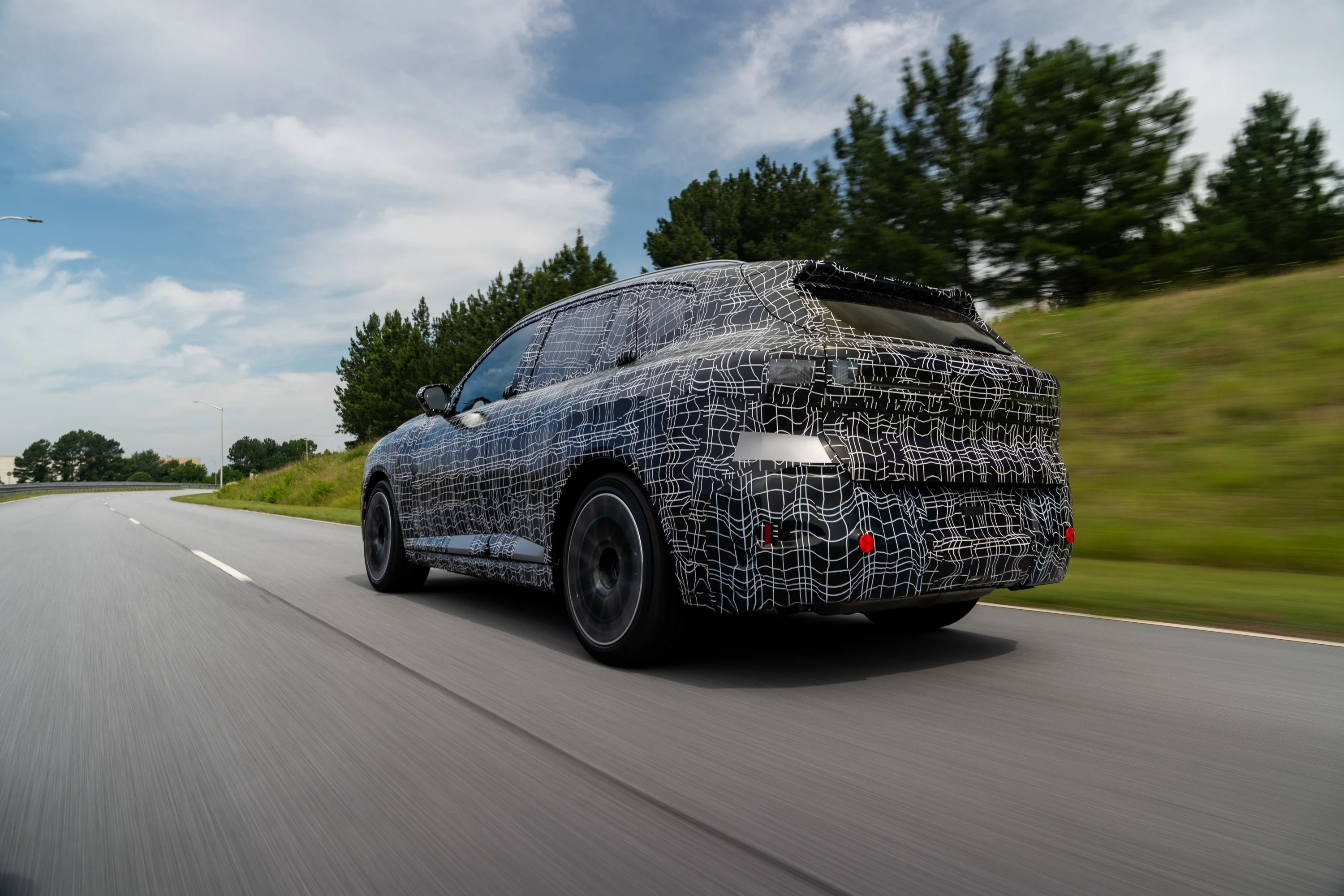

Exterior
The BMW iX5 60 xDrive measures 4994 mm in length, 1970 mm in width, and 1748 mm in height, placing it in the mid-size SUV segment.
The BMW iX5 60 xDrive is available in 5 paint colors, including both solid and metallic options.
The BMW iX5 60 xDrive offers multiple wheel options in different sizes. The available tire and wheel combinations include:
- 255/50 tires on 21" rims front and 285/45 tires on 21" rims rear
- 275/40 tires on 22" rims front and 315/35 tires on 22" rims rear
Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.
The car has four regular doors and a tailgate where the gate falls down.
Soft close is standard on the side doors.
Powered side doors are optional.
There are two different roof options to select from.
The standard is just a regular roof.
As an option, you can order this model with a large panoramic roof with two separate glass panels. The front section can fully open to let in fresh air. It has an electric curtain that occupants can use to protect against the sun.
BMW iX5 60 xDrive
Interior
The interior of the BMW iX5 60 xDrive is designed with a minimalist aesthetic, featuring premium materials throughout. The split-level center console separates the driver and passenger with integrated storage.
You can choose between different types of seats, seat materials, and interior styling.
You can choose between several interior designs.
Seats
The BMW iX5 60 xDrive accommodates five passengers with two front seats and a three-seat bench in the rear.

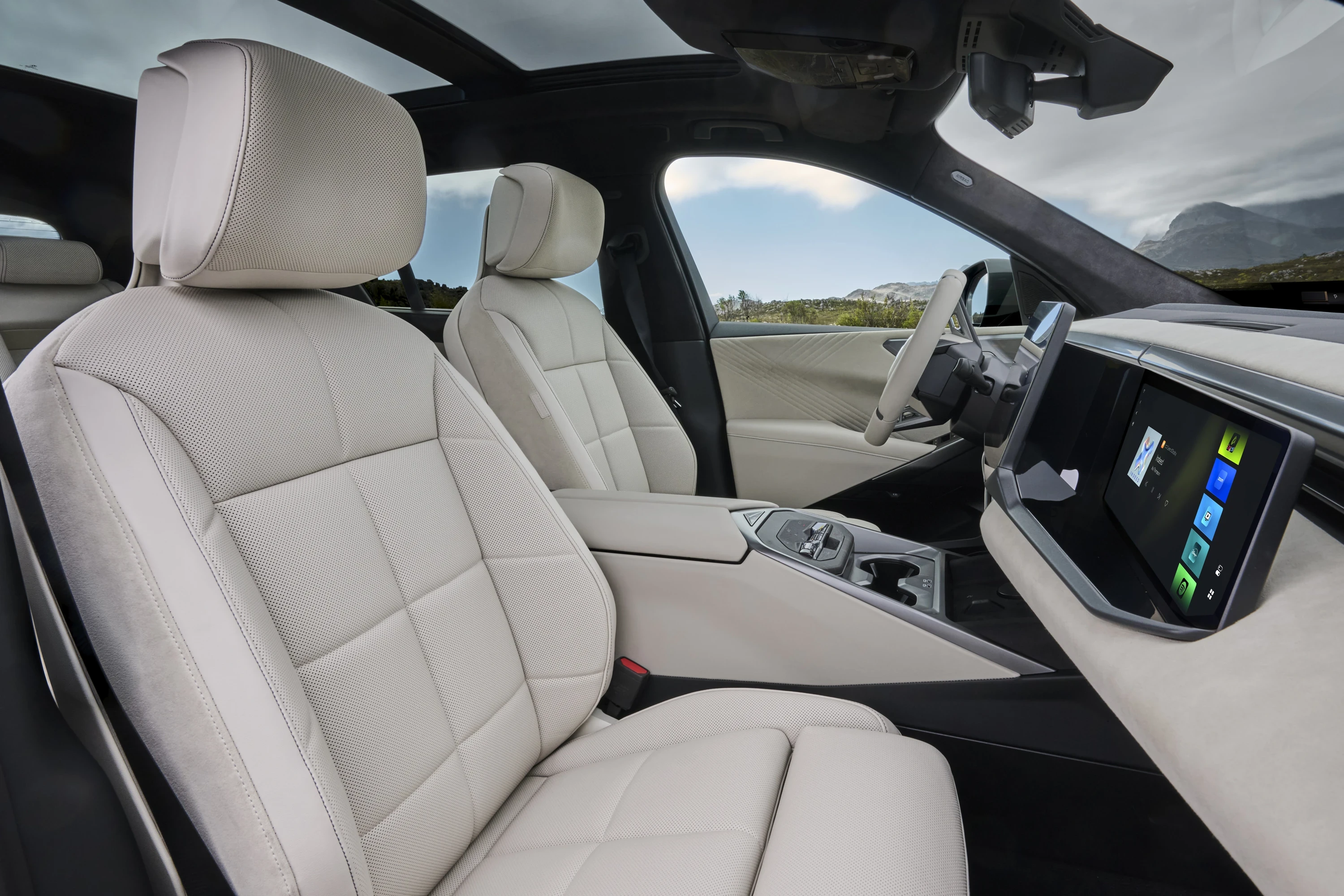

First Row Seats
The front row offers three seat types:
The following functionalities are available on the standard seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable)
- Height adjustable headrest (manually adjustable)
- Heating
- Adjustable lumbar support (electrically adjustable)
- Massage (standard for passenger seat)
Available in:
- Gray fabric upholstering
- White leatherette upholstering
- Black leatherette upholstering
- Brown leatherette upholstering
- Black/Gray leather upholstering
- Black leather upholstering
The following functionalities are available on the Multifunction seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable)
- Seat cushion angle adjustment (electrically adjustable)
- Height adjustable headrest (manually adjustable)
- Length adjustable headrest (manually adjustable)
- Heating
- Memory
- Adjustable lumbar support (electrically adjustable)
- Adjustable thigh support (standard for driver, not available for passenger)
- Massage (electrically adjustable for driver, manually adjustable for passenger)
The following functionalities are available on the M-Sport seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable)
- Seat cushion angle adjustment (electrically adjustable)
- Height adjustable headrest (electrically adjustable)
- Heating
- Memory
- Adjustable lumbar support (electrically adjustable)
- Backrest side bolsters adjustment (electrically adjustable)
- Adjustable thigh support (manually adjustable)
Available in:
BMW iX5 60 xDrive

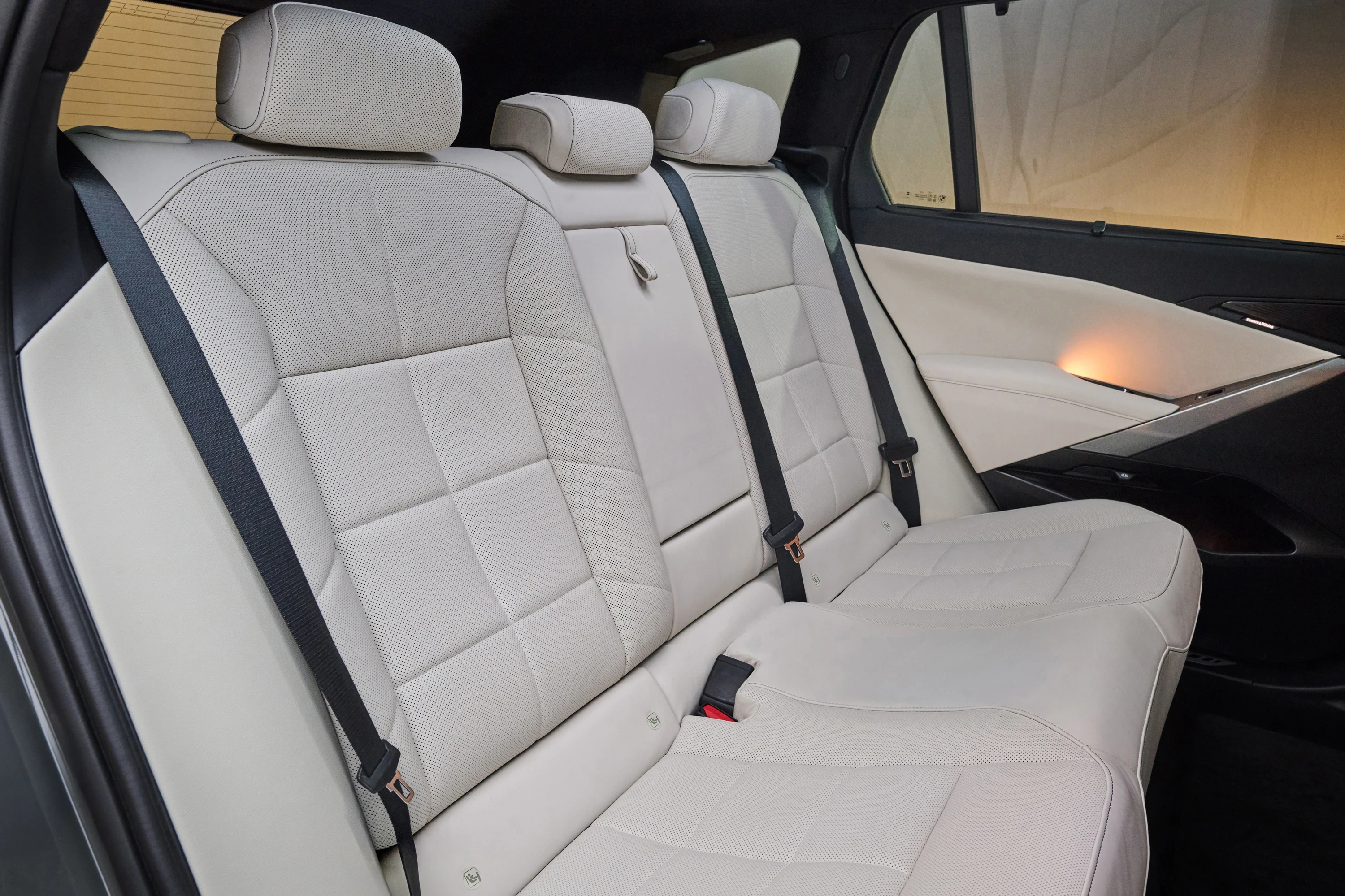

Second Row Seat
The second row features a standard three-seat bench with a 40:20:40 split, allowing each section to fold separately to increase cargo space.
Additional functionalities include:
- Recline adjustment (manually adjustable)
- Height adjustable headrest (manually adjustable)
- ISOFIX (standard for outer seats)
BMW iX5 60 xDrive
Interior Storage
The BMW iX5 60 xDrive has the following interior storage:
- Cupholders: Two cupholders are located in the front center console, with an additional two in the rear armrest.
Interior Lighting
The BMW iX5 60 xDrive offers several interior lighting options.
- Multicolor Ambient Lighting: Across the dashboard, door panels, and footwell, with selectable colors.
Climate System
Two climate system options are available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
- 3-zone climate system: Supports different temperatures in three zones for the driver, passenger, and backseat.
A standard heat pump reduces heating energy use in cold weather.
User Interface and Control
The control interface of the BMW iX5 60 xDrive is primarily screen-based, with minimal use of physical buttons or stalks.

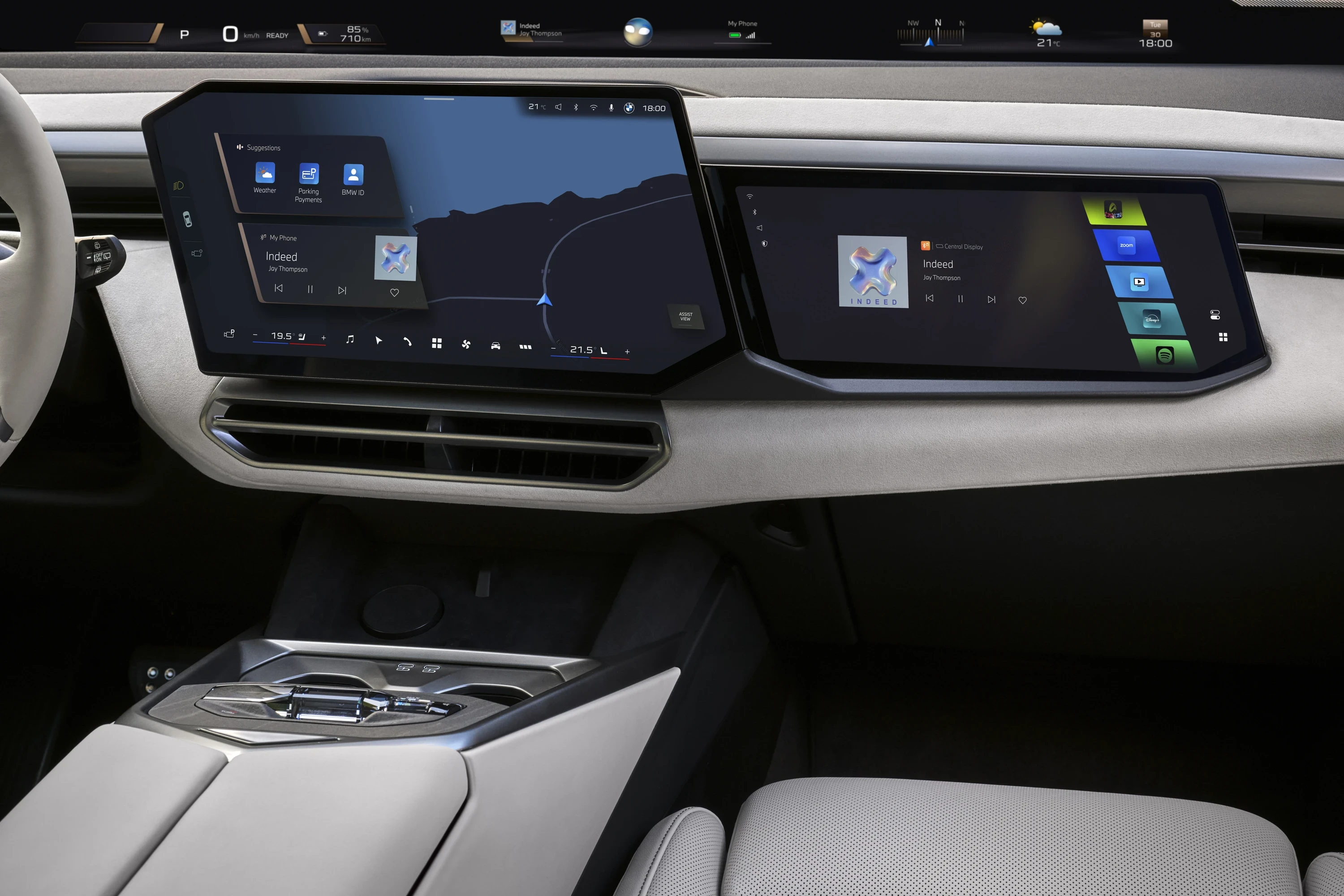

The BMW iX5 60 xDrive features a twin-screen layout housed within a panoramic dashboard display spanning the driver and front passenger.
Key screen details:
- Center Dashboard Touchscreen: A 17.9-inch display located at the center of the dashboard. It serves as the main interface for infotainment, navigation, and vehicle settings.
- Panoramic Dashboard Display: A 43.0-inch panoramic display that spans the entire dashboard, providing a wide view of driving information and infotainment options. It handles navigation, media, and vehicle settings.
An optional head-up display projects key driving information such as speed and navigation cues onto the windshield.
BMW iX5 60 xDrive
Steering Wheel
The BMW iX5 60 xDrive is equipped with a single type of steering wheel:
The steering wheel is adjustable for both tilt and telescope. The adjustment is manual.
Design: Circular flat-bottom and flat-top
Controls: Haptic-feedback buttons
Heating: Available as an option
From the steering wheel you can control:
- Media volume
- Track Controls: Buttons on the steering wheel skip to the next or previous track.
- Accept/end phone calls
- Voice command activation
- Drive Mode Selector: A dedicated control allows you to switch between different drive modes.
- Cruise Control: A stalk or button on the steering wheel allows you to set and adjust the cruise control speed.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
Voice control is standard.
Infotainment
The BMW iX5 60 xDrive runs Android Automotive OS, Google's platform for vehicle dashboards. BMW adds its own apps for navigation and car settings on top.
Navigation System
The built-in navigation supports route planning with target charge levels at the destination and at charging stops, real-time traffic, and satellite maps.
App Store
The infotainment system includes an App Store where you can download third-party apps to run natively on the car's screen without needing a connected phone. Available apps vary by market but include popular options such as:
- YouTube: Watch videos, channels, and playlists on the car's infotainment screen while parked.
- Spotify: Stream music, playlists, and podcasts directly from the car's infotainment system.
- TuneIn: Access live radio stations, podcasts, and news from around the world.
Phone Mirroring
The BMW iX5 60 xDrive supports Android Auto and Apple CarPlay. Mirror your phone's screen on the car's display to run apps like Google Maps or Waze directly.
Sound System
You can choose between two sound systems for the BMW iX5 60 xDrive:
- HiFi System Professional: Features 12 speakers and delivers a maximum output of 280 watts.
- Surround Sound System: Features 18 speakers and delivers a maximum output of 775 watts.
Additionally, the model includes 4 USB-C connections as standard.
Mobile App
The BMW iX5 60 xDrive has a mobile app for Android and iOS to manage and monitor the vehicle remotely. Features:
- Locate Your Vehicle: Check the current location of your car.
- Preconditioning: Preheat or cool your car before you start your journey.
- Remote Parking: Park or exit a parking space remotely from the app.
- Lock & Unlock: Securely lock or unlock your car doors.
- Scheduled Charging: Plan and schedule charging sessions.
- Adjust Charging Target: Set your desired State of Charge to start or stop charging.
- Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
- Route Planning: Plan your route and send it directly to your car's navigation system.
- Driving History: Review the details of your past trips.

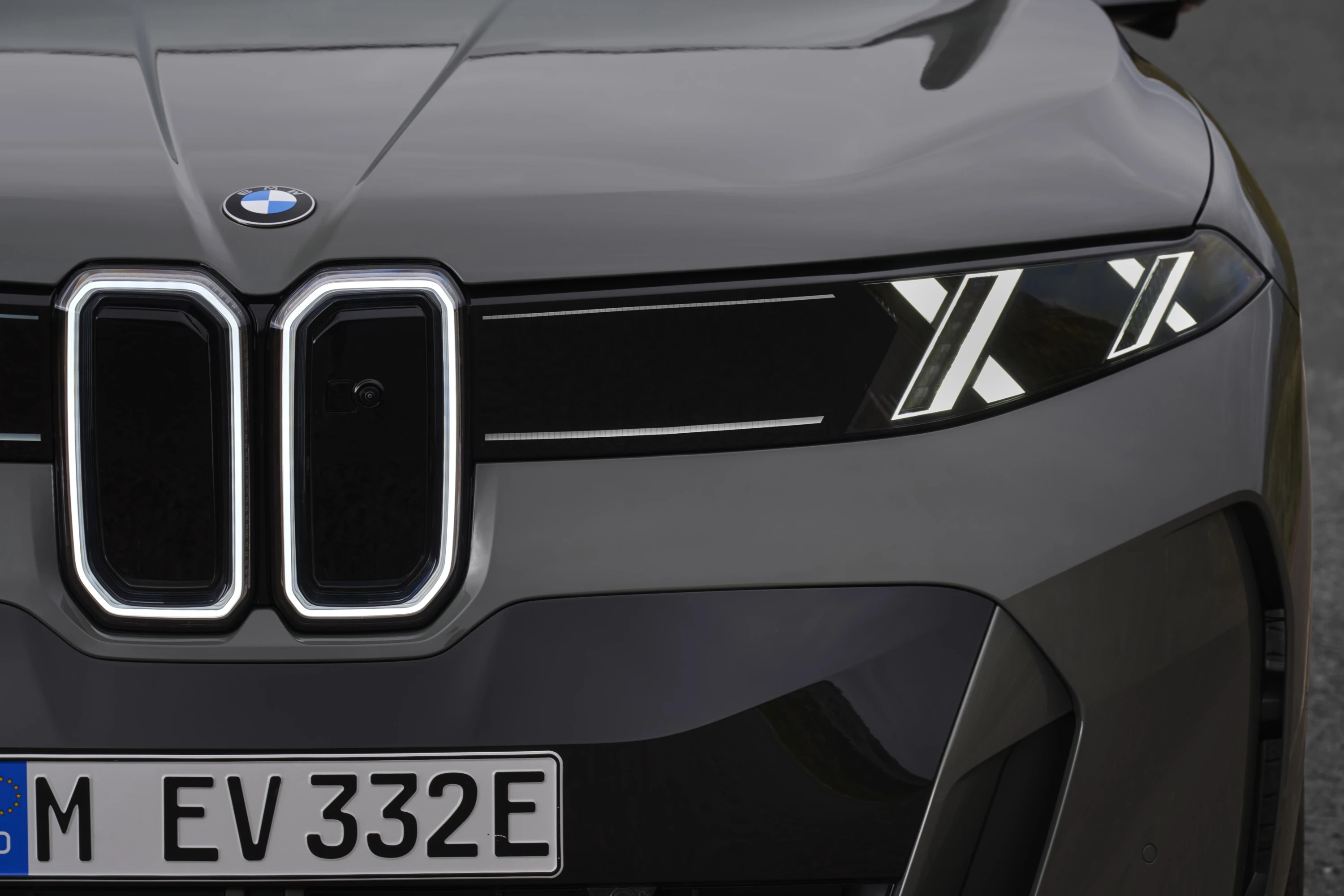

Lights
The BMW iX5 60 xDrive uses LED Matrix headlights. LED Matrix splits the headlight beam into multiple smaller rays that the controller can turn on and off individually to avoid dazzling other drivers.
The taillights use LED technology.
BMW iX5 60 xDrive
Advanced Driver Assistance Systems
The BMW iX5 60 xDrive offers standard and optional advanced driver assistance systems (ADAS).
Safety Systems
Anti-lock Braking System (ABS): Standard on the BMW iX5 60 xDrive, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the BMW iX5 60 xDrive, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.
Lane-Keeping Assist (LKA): Standard on the BMW iX5 60 xDrive, this system helps prevent the vehicle from drifting out of its lane.
It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Front Cross Traffic Assist (FCTA): Standard on the BMW iX5 60 xDrive, this system helps detect oncoming traffic when crossing an intersection or turning from a stopped position.
Rear Cross Traffic Alert (RCTA): Standard on the BMW iX5 60 xDrive, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Forward Collision Warning (FCW): Standard on the BMW iX5 60 xDrive, this driver assist system helps drivers avoid or mitigate frontal collisions.
Automatic Emergency Braking (AEB): Standard on the BMW iX5 60 xDrive, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Automatic Emergency Steering (AES): Standard on the BMW iX5 60 xDrive, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.
Blind-spot Monitoring (BSM): Standard on the BMW iX5 60 xDrive, this system helps detect traffic in blind spots.
Exit Warning: Standard on the BMW iX5 60 xDrive, this system alerts occupants against opening a door if there is a risk of hitting an oncoming object or person.
Driving Automation
With the standard Driving Assistant Plus level 2 system, you get the following driving automation features.
- Adaptive Cruise Control (ACC)
- Lane Centering Assist (LCA) / AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
- Automatic parking. (optional)
With the optional Motorway & City Assistant level 2 system, you get additional driving automation features to the ones listed above:
- Advanced cruise control that follows the navigation route, including entering and exiting highways to reach the destination.
- Automatic Lane Change (ALC)
- Traffic light control - follow traffic lights.
Sensors & Cameras
This model uses cameras, radar, and ultrasonic sensors for its driver assist systems.
Up to five radar, five cameras, and 12 ultrasonic sensors monitor the vehicle’s surroundings.
Safety
The BMW iX5 60 xDrive is equipped with the following airbags:
- Front airbags for the driver and front passenger
- Side curtain airbags for both the first and second rows
- Side airbags for the driver and front passenger
- A front center airbag to prevent the driver and front passenger from colliding with each other during a side impact
The front seatbelts are equipped with reversible pretensioners, while the rear seatbelts have pyrotechnic pretensioners, both with load limiters. In the event of a collision, the pretensioners tighten the seatbelts to secure occupants firmly in their seats, while the load limiters allow a controlled amount of webbing to extend, reducing the risk of injury from excessive force.
Security and Access Technologies
The BMW iX5 60 xDrive is equipped with advanced security features to protect you and your vehicle. These include:
- Keyless Entry and Start: Unlock and start the car with the key in your pocket or bag.
- Phone-as-Key Functionality: Use your smartphone as a digital key to unlock and start the vehicle.
- Alarm System: An integrated alarm system monitors for unauthorized entry or tampering and triggers an alert.
- Integrated Dashcam: The built-in dashcam records video footage while you drive.
- Parking Surveillance: Using its cameras, the vehicle monitors its surroundings while parked.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 655 liters (23.1 CU FT). With the rear seat folded down, this expands to 1850 liters (65.3 CU FT).
On the roof, you can load up to 100 kg (220.5 lbs).
Roof rails are standard for easy mounting of a roof box or rack.
Additionally, there is a frunk (front trunk) with a storage capacity of 53 liters (1.9 CU FT).
The vehicle’s maximum weight is 3495 kg (7705 lbs), with a base weight of 2825 kg (6228 lbs). This allows for a maximum load of 670 kg (1477 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 2700 kg (5952 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
Availability & Pricing
The BMW iX5 60 xDrive had its world premiere on 6/30/2026, with deliveries starting in March 2027.
Alternatives to BMW iX5 60 xDrive
Compare These Vehicles
Get detailed side-by-side comparisons of specifications, range, charging performance, and travel capabilities.
Complete Specs
Compare all technical specifications side-by-side
Range Analysis
Real-world range and charging performance
Travel Calculator
Plan trips and compare travel times
