OMODA E5
OMODA E5 is an all-electric crossover with a WLTP range of up to 430 km (267 miles). EVKX.net has all the details.
We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
- Performance
- Battery, Range, and Charging
- Drivetrain (suspension, brakes, steering)
- Exterior (paint colors, wheels ++)
- Interior (seats++)
- User interface and control
- Infotainment
- Lights
- Advanced driver-assistance systems
- Cargo Capacity and Towing Ability
Performance
The OMODA E5 offers modest performance with a maximum power of 150 kW (204 hp / 201 bhp) and a total torque of 340 Nm (251 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 7.6 seconds and has a top speed of 172 km/h (107 mph), aligning more closely with traditional internal combustion engine vehicles.
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 61.0 kWh and a net usable capacity of 60.0 kWh, providing a 1.0 kWh buffer (1.6%) for battery protection. With a nominal voltage of 370 volts, the system is classified as a 400-volt battery system, aligning with industry standards. The Lithium-Ion battery utilizes LFP technology, offering both benefits and drawbacks compared to typical NCA/NMC batteries.
According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range is 430 km (267 miles), with an energy consumption rate of 14.0 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 80 kW. Charging from 0% to 100% takes approximately 100 minutes, while a more typical scenario from 10% to 80% takes 40 minutes with an average charging speed of 64 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 12% to 71%. This results in an effective charging speed, including time lost, of 60 kW, with each charging session taking about 36 minutes and 36 seconds.
In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 23 kWh/100 km, the trip would take approximately 11 hours and 12 minutes. This journey would require five charging stops from 13% to 70%, with a total charging time of 172 minutes.
Onboard Charger
The standard onboard charger supports up to 9.9 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 6 hours and 3 minutes using a home charging setup.
Charge Port
The location of the charge port is on the front. This location makes it easy to use charge stations where you need to park with the front in.
Bidirectional Charging
This model supports V2L (Vehicle to Load), allowing you to power electrical equipment requiring up to 3.3 kW of power, including the ability to charge other vehicles.
Drivetrain
The OMODA E5 has a front-wheel drive system supported by one motor on the front axle. The motor used are Permanent Magnet Synchronous Motors.
Suspension
The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 180 mm.
Drive Modes
The OMODA E5 lets the user select different drive modes that affect the car’s handling. The driver can choose between 3 modes:
- Normal: Balanced steering and throttle. - Sport: Dynamic steering and throttle. - Eco: Balanced steering and efficent throttle.
Brakes
The OMODA E5 uses disc brakes in the front for superior stopping power and heat dissipation, while drum brakes are employed in the rear for cost efficiency and durability. Drum brakes provide adequate performance for the rear wheels, require less maintenance, and integrate seamlessly with the vehicle’s regenerative braking system. This combination ensures optimal braking performance and cost-effectiveness, aligning with the overall efficiency goals of the EV. The front discs are 358 mm.
Regenerative Braking
Automatic regeneration is not available in this model. However, regenerative braking is facilitated through one-pedal driving combined with blended brakes. However, it is not considered full one-pedal driving since, at low speeds, the vehicle will keep rolling until it comes to a stop by itself.
Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are three levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

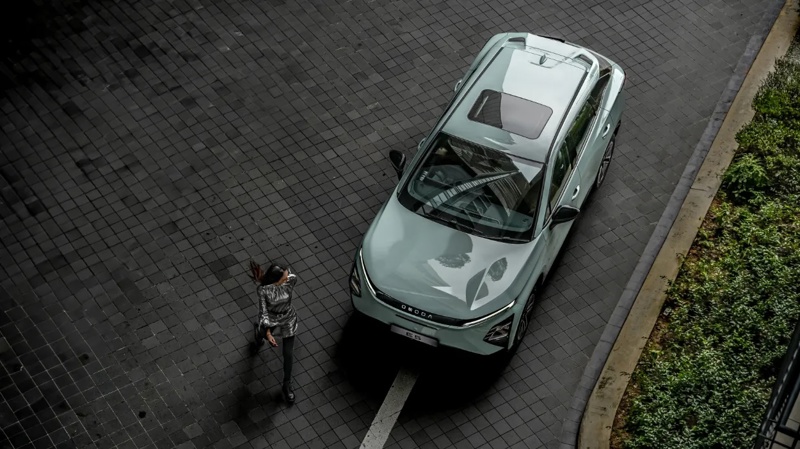

Exterior
The OMODA E5, with dimensions of 4424 mm in length, 1830 mm in width, and 1588 mm in height, falls into the B-SUV segment cars, also known as subcompact SUVs or crossovers, offer a combination of the compact size and maneuverability of B-segment cars with the higher driving position, increased cargo space, and rugged styling of an SUV. The OMODA E5 is available in a total of 10 paint colors, including several striking metallic options. Some of these paint options include two-tone paints where the roof and upper part of the body are painted in a different color, providing a distinctive and stylish look.
The car has four regular doors and a tailgate where the gate falls down.
There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a sunroof. The glass extends over only the front row, and occupants can open it. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has manual curtain that occupants can use to protect against the sun.
The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.
Interior
The interior of the OMODA E5 is functional, featuring medium-quality materials in several areas instead of hard plastic. A standout feature is the split-level center console, which separates the driver and passenger while offering convenient storage and enhanced functionality.
Seats
The OMODA E5 accommodates five passengers with two front seats and a three-seat bench in the rear.

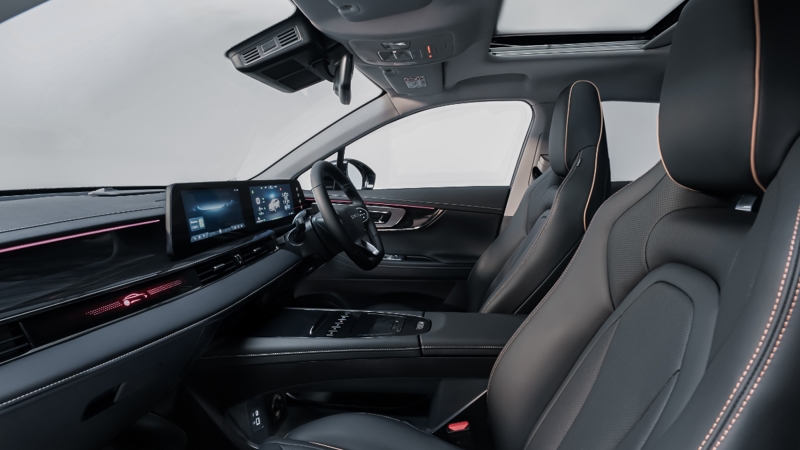

First Row Seats
The OMODA E5 offers a single type of front seat.
The following functionalities are available on the **** seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable for driver, not available for passenger)
- Heating (standard for passenger seat)
- Ventilation (standard for passenger seat)
Available in:
- Black leatherette upholstering
Second Row Seat
The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:
- Height adjustable headrest
- ISOFIX (standard for outer seats)
Climate System
There is one climate system available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
This model has not a heat pump. This can increase consumption in cold weather compared to models with a heat pump.
Comfort Features
The OMODA E5 includes several features to enhance comfort and convenience:
- Wireless Phone Charging
User Interface and Control
The control interface for the OMODA E5 is primarily focused on screen interaction, with limited functionality available through physical buttons and stalks. This design may result in a less than ideal user experience and usability for some users.

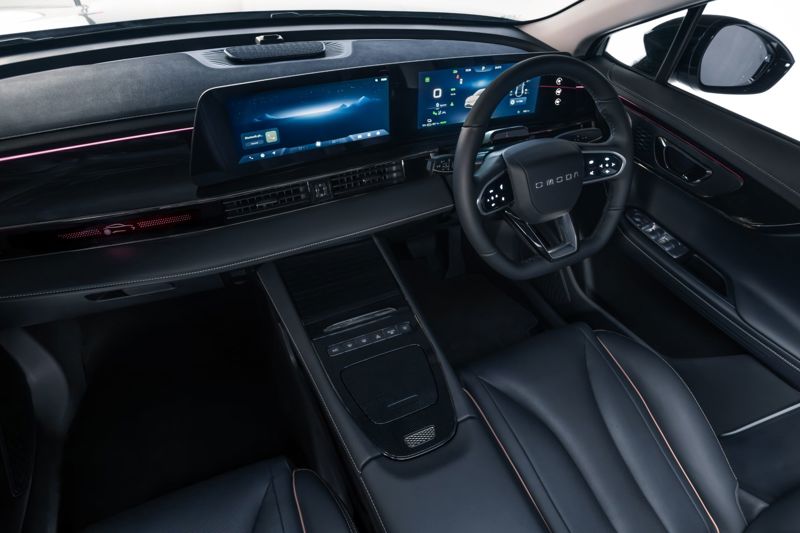

The OMODA E5 has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.
Key screen details:
- The screen behind the steering wheel on the left of the frame is 12.3 inches large
- The touch screen at the right part of the shared frame is 12.3 inches large
The model does not include a head-up display.
Steering Wheel
The OMODA E5 is equipped with a single type of steering wheel:
- Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.
Infotainment
Navigation System
With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.
Phone Mirroring
The OMODA E5 supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
You can choose between two sound systems for the OMODA E5:
- Omoda Sound System: Features six speakers and delivers a maximum output of watts.
- Sony Sound System: Features eight speakers and delivers a maximum output of watts.
Additionally, the model includes 2 USB-C connections as standard. The model has 2 USB-A connections as standard.
Lights
Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
The taillights use LED technology, ensuring both high visibility and energy efficiency.
Advanced Driver Assistance Systems
The OMODA E5 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.
Safety Systems
Anti-lock Braking System (ABS): Standard on the OMODA E5, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the OMODA E5, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.
Lane-Keeping Assist (LKA): Standard on the OMODA E5, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Rear Cross Traffic Alert (RCTA): Standard on the OMODA E5, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Forward Collision Warning (FCW): Standard on the OMODA E5, this driver assist system helps drivers avoid or mitigate frontal collisions.
Automatic Emergency Braking (AEB): Standard on the OMODA E5, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Blind-spot Monitoring (BSM) : Standard on the OMODA E5, this side assist system helps to detect traffic in blind spots.
Exit Warning: Standard on the OMODA E5, this system that alerts occupants against opening doors if there is a risk of hitting something.
Driving Automation
With the standard Traffic Jam Assist level 2 system, you get the following driving automation features.
- Adaptive Cruise Control (ACC)
- Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
Sensors & Cameras
This model uses cameras, radar, and ultrasonic sensors for its driver assist systems. Up to five radar sensors, five cameras, and eight ultrasonic sensors monitor the vehicle’s surroundings.
Safety
The OMODA E5 is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:
- Front airbags for the driver and front passenger
- Side curtain airbags for both the first and second rows
- Side airbags for the driver and front passenger
- A front center airbag to prevent the driver and front passenger from colliding with each other during a side impact
Additionally, the front and second-row seatbelts are equipped with pretensioners that tighten automatically during a collision to minimize injury risk.
Security and Access Technologies
The OMODA E5 is equipped with advanced security features to protect you and your vehicle. These include:
- Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.
- Alarm System: An integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and keep your vehicle secure.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 380 liters (13.4 CU FT). With the rear seat folded down, this expands to 1075 liters (38.0 CU FT).
The vehicle’s maximum weight is 2246 kg (4952 lbs), with a base weight of 1710 kg (3770 lbs). This allows for a maximum load of 536 kg (1182 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
This model is not available with a towbar. So, to pull a trailer, you must look at other models.
