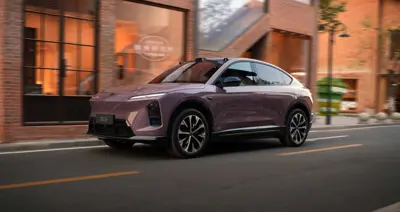

Nio EC6

Performance

The Nio EC6 has a maximum power of 360 kW (490 hp / 483 bhp) and a total torque of 600 Nm (443 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.5 seconds and reaches a top speed of 200 km/h (124 mph).

Battery, Range, and Charging

The Nio EC6 is available with two battery options, each offering different specifications and performance metrics.

75kWh

The battery has a gross capacity of 75.0 kWh and a net usable capacity of 70.5 kWh, with a 4.5 kWh buffer (6.0%) for battery protection. With a nominal voltage of 386 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

The Lithium-Ion battery utilizes LFP technology, which offers advantages and disadvantages compared to typical NCA/NMC batteries.

The vehicle's range, according to the CLTC (China Light-Duty Vehicle Test Cycle) standard, is 625 km (388 miles).

The energy consumption is 11.3 kWh/100 km based on the CLTC standard test.

For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 140 kW. Charging from 0% to 100% takes approximately 69 minutes, while a typical 10% to 80% charge takes about 29 minutes with an average charging speed of 101 kW.

Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 2% to 58%. This results in an effective charging speed, including time lost, of 100 kW, with each charging session taking about 24 minutes and 40 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 22.5 kWh/100 km, the trip would take about 9 hours and 53 minutes, needing four charging stops from 2% to 57%, totaling 93 minutes of charging time.

100kWh

The battery has a gross capacity of 100.0 kWh and a net usable capacity of 90.0 kWh, with a 10.0 kWh buffer (10.0%) for battery protection. With a nominal voltage of 358 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

The vehicle's range, according to the CLTC (China Light-Duty Vehicle Test Cycle) standard, is 625 km (388 miles).

The energy consumption is 11.3 kWh/100 km based on the CLTC standard test.

For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 180 kW. Charging from 0% to 100% takes approximately 70 minutes, while a typical 10% to 80% charge takes about 30 minutes with an average charging speed of 127 kW.

Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 78%. This results in an effective charging speed, including time lost, of 112 kW, with each charging session taking about 37 minutes and 58 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 22.5 kWh/100 km, the trip would take about 9 hours and 32 minutes, needing two charging stops from 1% to 76%, totaling 72 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 6 hours and 24 minutes with a standard home setup.

Charge Port

Drivetrain

The Nio EC6 has an all-wheel drive system supported by four motors. One for each wheel.

The motors used are Induction Motors.

Suspension

Drive Modes

The Nio EC6 lets the user select different drive modes that affect the car's handling.

The driver can choose between 3 modes:

• Eco: Comfort steering and throttle.
• Comfort: Balanced steering and throttle.
• Sport: Dynamic steering and throttle.

Brakes

Regenerative Braking

The regenerative braking system in this model offers several modes. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving.

Drivers can also adjust the regenerative braking strength when lifting off the accelerator. There are four levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative braking power is 150 kW.

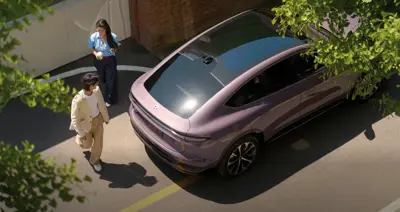

Exterior

The Nio EC6 measures 4850 mm in length, 1995 mm in width, and 1696 mm in height, placing it in the mid-size SUV segment.

The Nio EC6 is available in a total of 7 solid paint colors.

Interior

The Nio EC6 features a driver-centric interior, designed to enhance the cockpit feel with premium materials throughout. It also includes a floating center console that creates an open space between the passenger and driver.

Seats

The Nio EC6 accommodates five passengers with two front seats and a three-seat bench in the rear.

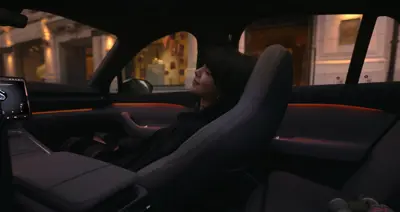

First Row Seats

The Nio EC6 offers a single type of front seat.

The following functionalities are available on the **** seat:

• Fore-and-aft adjustment (electrically adjustable)
• Recline adjustment (electrically adjustable)
• Height adjustment (electrically adjustable)
• Seat cushion angle adjustment (electrically adjustable)
• Height adjustable headrest
• Length adjustable headrest
• Heating
• Memory
• Adjustable thigh support
• Ventilation (optional)
• Massage (optional)
• Leg support for passenger (standard for passenger seat)
• Footrest for passenger (standard for passenger seat)

Available in:

• Black leatherette upholstering
• Brown leatherette upholstering
• Gray leatherette upholstering

Second Row Seat

The second row features a standard three-seat bench with a 40:20:40 split, allowing each section to fold separately to increase cargo space.

Additional functionalities include:

• Recline adjustment (manually adjustable)
• Heating (optional for outer seats)
• Ventilation (optional for outer seats)
• ISOFIX (standard for outer seats)

Climate System

There is one climate system available:

• 3-zone climate system: Supports different temperatures in three zones for the driver, passenger, and backseat.

This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.

Comfort Features

The Nio EC6 includes several features to enhance comfort and convenience:

User Interface and Control

The control interface of the Nio EC6 is primarily screen-based, with minimal use of physical buttons or stalks. This streamlined design emphasizes digital interaction but may compromise ease of use for some drivers who prefer tactile controls.

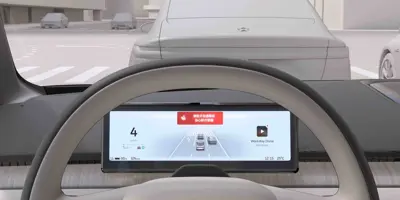

Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

• en uicontrols.screen.info.BehindSteeringWheelOnDash.
• A touchscreen is centrally placed on the dashboard.

A standard head-up display projects key driving information—such as speed and navigation cues—onto the windshield for enhanced safety and convenience.

Steering Wheel

The Nio EC6 is equipped with a single type of steering wheel:

The steering wheel is adjustable for both tilt and telescope. The adjustment is electrically powered.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Voice control is standard.

Infotainment

The Nio EC6 features the NIO Banyan OS infotainment system. It provides access to navigation, media, and vehicle settings through the touchscreen display, and supports over-the-air updates.

Navigation System

The built-in navigation system uses detailed maps and offers advanced route planning, allowing you to define the target charge level at your destination. The system provides real-time traffic information ensuring an efficient and stress-free journey.

App Store

The infotainment system includes an App Store where you can download third-party apps to run natively on the car's screen without needing a connected phone. Available apps vary by market but include popular options such as:

Sound System

The Nio EC6 has one sound system option:

• Premium sound system: Features en 23 speakers and delivers a maximum output of 1000 watts.

Additionally, the model includes 3 USB-C connections as standard.The model has 1 USB-A connections as standard.

Advanced Driver Assistance Systems

The Nio EC6 offers standard and optional advanced driver assistance systems (ADAS).

Safety Systems

Anti-lock Braking System (ABS): Standard on the Nio EC6, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Nio EC6, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Nio EC6, this system helps prevent the vehicle from drifting out of its lane.
It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA): Optional on the Nio EC6, this system helps detect oncoming traffic when crossing an intersection or turning from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Nio EC6, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Optional on the Nio EC6, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Nio EC6, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Optional on the Nio EC6, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM): Standard on the Nio EC6, this system helps detect traffic in blind spots.

Driving Automation

Sensors & Cameras

This model uses cameras, radar, LiDAR and ultrasonic sensors for its driver assist systems.

Up to five radar sensors, one LiDAR sensors, eight cameras, and six ultrasonic sensors monitor the vehicle’s surroundings.

Safety

The Nio EC6 is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:

• Front airbags for the driver and front passenger
• Side curtain airbags for both the first and second rows
• Side airbags for the driver and front passenger
• A front center airbag to prevent the driver and front passenger from colliding with each other during a side impact

Security and Access Technologies

The Nio EC6 is equipped with advanced security features to protect you and your vehicle. These include:

• Keyless Entry and Start: Unlock and start the car with the key in your pocket or bag.
• Phone-as-Key Functionality: With phone-as-key technology, you can use your smartphone as a digital key to unlock and start the vehicle, providing an additional layer of convenience and flexibility.
• Alarm System: An integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and keep your vehicle secure.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 668 liters (23.6 CU FT). With the rear seat folded down, this expands to 1430 liters (50.5 CU FT).

On the roof, you can load up to 100 kg (220.5 lbs).

Optional roof rails are available for easy mounting of a roof box or rack.

The vehicle’s maximum weight is 2850 kg (6283 lbs), with a base weight of 2300 kg (5071 lbs). This allows for a maximum load of 550 kg (1213 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1200 kg (2646 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).

Availability & Pricing

The Nio EC6 had its world premiere on 9/15/2023, with deliveries starting in September 2023.

This model is available in Europe and China.

Pricing

Pricing may vary depending on local conditions, incentives, and promotions. Below are the starting prices for select countries:

• 358,000 yuan (China)
