Xiaomi SU7 Max

Xiaomi SU7 Max is an all-electric sedan with a CLTC range of up to 800 km (497 miles). EVKX.net has all the details.

Xiaomi SU7 Max

Xiaomi SU7 Max

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The Xiaomi SU7 Max packs an impressive punch with a maximum power of 495 kW (673 hp / 664 bhp) and a commanding total torque of 838 Nm (618 lb-ft). This high-performance machine can sprint from 0 to 100 km/h (0 to 62 mph) in just 2.78 seconds, and it reaches a top speed of 265 km/h (165 mph), making it a standout in its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 101.0 kWh and a net usable capacity of 99.0 kWh, providing a 2.0 kWh buffer (2.0%) for battery protection. Operating at a nominal voltage of 871 volts, it qualifies as an 800-volt battery system. This high voltage is pivotal in enabling the system’s charging capabilities. This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

The vehicle’s range, according to the CLTC (China Light-Duty Vehicle Test Cycle) standard, is 800 km (497 miles). The energy consumption is 12.4 kWh/100 km based on the CLTC standard test. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of kW. Charging from 0% to 100% takes approximately 41 minutes, while a more typical scenario from 10% to 80% takes 19 minutes with an average charging speed of 218 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 3% to 74%. This results in an effective charging speed, including time lost, of 179 kW, with each charging session taking about 24 minutes and 35 seconds. This exceptionally fast charging capability makes the Xiaomi SU7 Max one of the most efficient and convenient EVs for long-distance travel.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 17 kWh/100 km, the trip would take approximately 8 hours and 43 minutes. This journey would require one charging stops from 3% to 75%, with a total charging time of 24 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 9 hours and 0 minutes using a home charging setup.

Charge Port

The charge port is located on the left rear side, making it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Xiaomi SU7 Max features an all-wheel drive system powered by two motors, one on each axle. The motors used are Induction Motors at the front axle and Permanent Magnet Synchronous Motors at the rear axle.

Suspension

The front suspension is double wishbone, and the rear suspension is Multilink. It uses air suspension and hydraulic dampers. The suspension is fully adaptive on the front and rear axle, so height and damping can be adjusted manually and automatically. The minimum ground clearance is 160 mm, and the maximum is 140 mm.

Steering

Dynamic steering is a standard on the Xiaomi SU7 Max, varying the steering ratio based on driving speed for enhanced control and comfort.

Brakes

The Xiaomi SU7 Max is equipped with cast-iron disc brakes on both the front and rear.

Regenerative Braking

Automatic regeneration is not available in this model. However, regenerative braking is facilitated through one-pedal driving combined with blended brakes. The system stops the car completely using friction brakes.

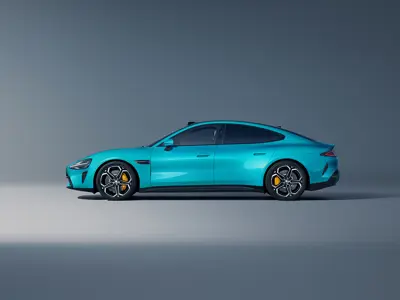

Exterior

The Xiaomi SU7 Max, with dimensions of 4997 mm in length, 1963 mm in width, and 1440 mm in height, falls into E-segment cars, also known as executive cars, are larger and more luxurious than their D-segment counterparts. They are designed to offer superior comfort, advanced technology, and high performance, making them suitable for a specific set of drivers. The Xiaomi SU7 Max is available in a total of 9 paint colors, including several striking metallic options.

The Xiaomi SU7 Max offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

  • 245/45 tires on 19" rims
  • 245/40 tires on 20" rims front and 265/40 tires on 20" rims rear
  • 245/35 tires on 21" rims front and 265/35 tires on 21" rims rear

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a boot lid for the trunk. Soft close is a standard function for the side doors.

There is only one roof option for this model. The standard roof includes a large panoramic glass roof extending from the front to the rear, enhancing the interior’s spacious and bright feel, thereby improving the mood and comfort of occupants. This glass is tinted to protect against heat from the sun.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Xiaomi SU7 Max

Xiaomi SU7 Max

Interior

The Xiaomi SU7 Max boasts a driver-centric interior, enhancing the cockpit feel with medium-quality materials used throughout. A standout feature is the split-level center console, which separates the driver and passenger while offering convenient storage and enhanced functionality. You can choose between several interior designs.

Seats

The Xiaomi SU7 Max accommodates five passengers with two front seats and a three-seat bench in the rear.

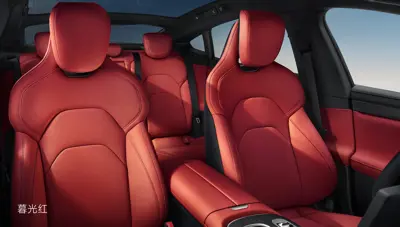

First Row Seats

The Xiaomi SU7 Max offers a single type of front seat.

The following functionalities are available on the **** seat:

Available in:

Xiaomi SU7 Max

Xiaomi SU7 Max

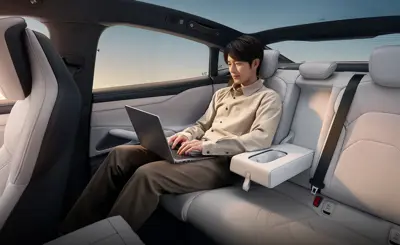

Second Row Seat

The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

  • Height adjustable headrest
  • Heating (standard for outer seats)
Xiaomi SU7 Max

Xiaomi SU7 Max

Climate System

There is one climate system available:

  • 2-zone climate system: Supports different temperatures for the driver and passenger.

Comfort Features

The Xiaomi SU7 Max includes several features to enhance comfort and convenience:

  • Electrically Adjustable Steering Wheel
  • Wireless Phone Charging

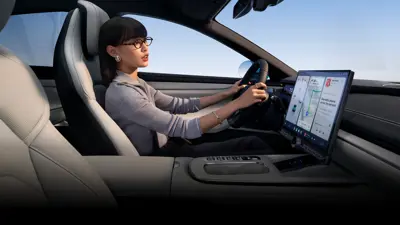

User Interface and Control

Key screen details:

  • The screen behind the steering wheel integrated into the dashboard is 7.1 inches large
  • The touch screen on the dashboard’s center is 16.1 inches large

A head-up display is a standard system that projects speed and other important driver information onto the windshield.

Xiaomi SU7 Max

Xiaomi SU7 Max

Steering Wheel

The Xiaomi SU7 Max is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel features integrated heating for added comfort during cold weather. It also includes physical buttons and scroll wheels, allowing you to control the infotainment system, adjust the volume, change music tracks, and manage other key functions with ease.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The Xiaomi SU7 Max supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The Xiaomi SU7 Max comes equipped with one sound system option:

  • Xiaomi Soundsystem: Features 25 speakers and delivers a maximum output of watts.

Additionally, the model includes 4 USB-C connections as standard. The model has 1 USB-A connections as standard.

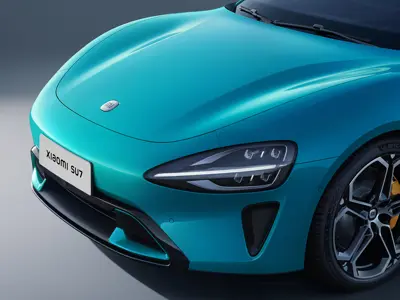

Lights

The Xiaomi SU7 Max comes equipped with advanced LED Matrix headlights. This adaptive system divides the traditional single headlight beam into multiple smaller rays, allowing the light controller to selectively turn them on and off to avoid dazzling other drivers. For enhanced safety, the headlights also include corner lights that illuminate the side when turning.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Xiaomi SU7 Max

Xiaomi SU7 Max

Advanced Driver Assistance Systems

The Xiaomi SU7 Max features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Xiaomi SU7 Max, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Xiaomi SU7 Max, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Xiaomi SU7 Max, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Xiaomi SU7 Max, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Xiaomi SU7 Max, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the Xiaomi SU7 Max, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Xiaomi SU7 Max, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Standard on the Xiaomi SU7 Max, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Standard on the Xiaomi SU7 Max, this side assist system helps to detect traffic in blind spots.

Exit Warning: Standard on the Xiaomi SU7 Max, this system that alerts occupants against opening doors if there is a risk of hitting something.

Driving Automation

With the standard Xiaomi Pilot Max level 2 system, you get the following driving automation features.

Sensors & Cameras

This model uses cameras, radar, LiDAR and ultrasonic sensors for its driver assist systems. Up to three radar sensors, one LiDAR sensors, eight cameras, and 12 ultrasonic sensors monitor the vehicle’s surroundings.

Security and Access Technologies

The Xiaomi SU7 Max is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 493 liters (17.4 CU FT). Additionally, there is a frunk (front trunk) with a storage capacity of 105 liters (3.7 CU FT).

The vehicle’s maximum weight is 2655 kg (5853 lbs), with a base weight of 2205 kg (4861 lbs). This allows for a maximum load of 450 kg (992 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

This model is not available with a towbar. So, to pull a trailer, you must look at other models.

Availability & Pricing

The Xiaomi SU7 Max had its world premiere on 28.12.2023, with deliveries starting in March 2024. Please note that this model is available exclusively in China.
