Chevrolet Silverado EV 3WT

Chevrolet Silverado EV 3WT is an all-electric Pickup Truck with a EPA range of up to 632 km (393 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance
Battery, Range, and Charging
Drivetrain (suspension, brakes, steering)
Exterior (paint colors, wheels ++)
Interior (seats++)
User interface and control
Infotainment
Lights
Advanced driver-assistance systems
Cargo Capacity and Towing Ability

Performance

The Chevrolet Silverado EV 3WT delivers a solid performance with a maximum power of 375 kW (510 hp / 503 bhp) and a total torque of 834 Nm (615 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.5 seconds and reaches a top speed of 170 km/h (106 mph), making it competitive within its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 200.0 kWh and a net usable capacity of 190.0 kWh, providing a 10.0 kWh buffer (5.0%) for battery protection. Operating at a nominal voltage of 650 volts, it qualifies as an 800-volt battery system. This high voltage is pivotal in enabling the system’s charging capabilities. This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

According to the EPA (Environmental Protection Agency) standard, the vehicle has an range of 393 miles (632 km) with an energy consumption rate of 2.1 miles per kWh. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

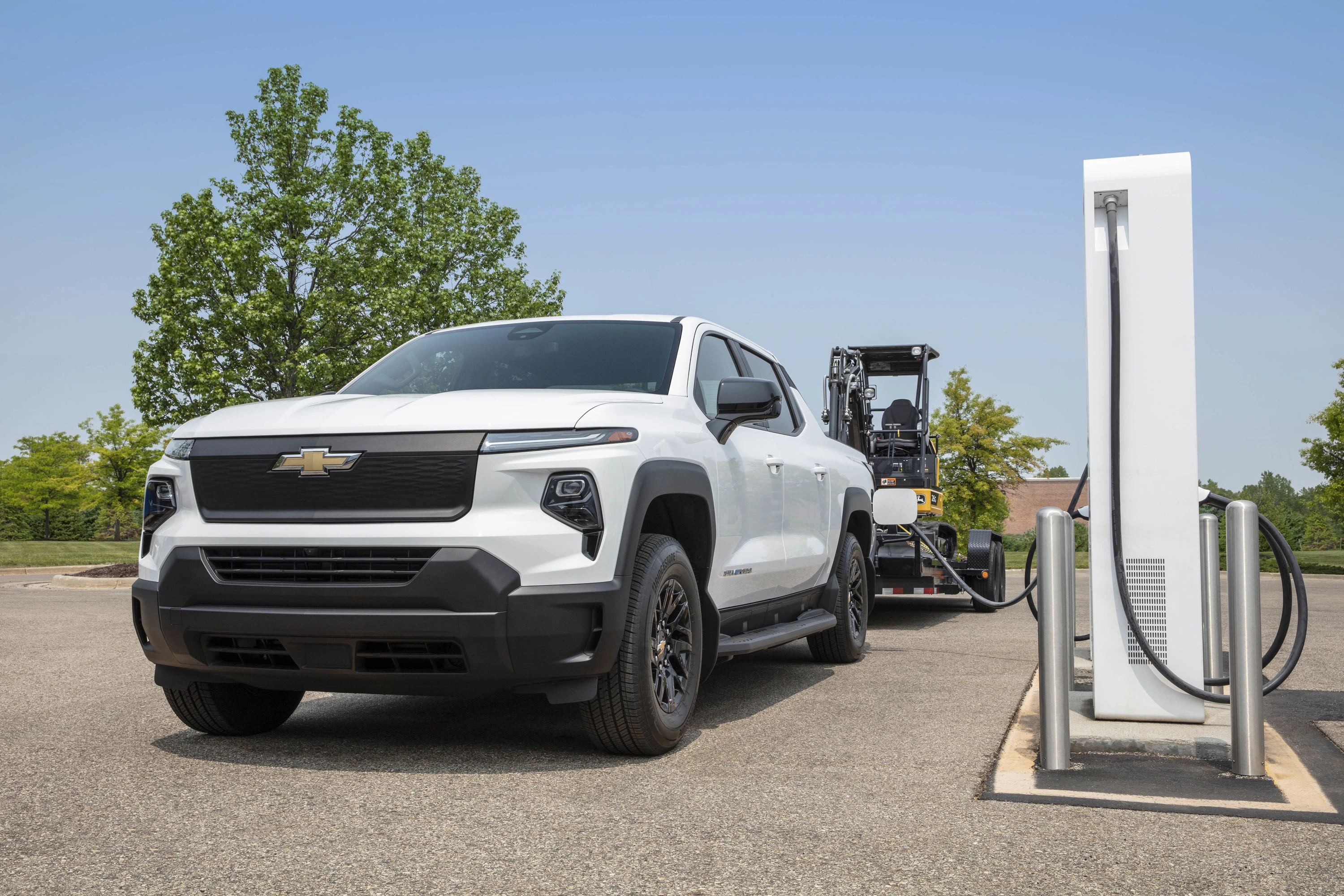

The vehicle supports fast DC charging with a maximum power of 350 kW. Charging from 0% to 100% takes approximately 126 minutes, while a more typical scenario from 10% to 80% takes 44 minutes with an average charging speed of 182 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 62%. This results in an effective charging speed, including time lost, of 235 kW, with each charging session taking about 30 minutes and 33 seconds. This efficient charging capability makes the Chevrolet Silverado EV 3WT a convenient option for long-distance travel.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 35 kWh/100 km, the trip would take approximately 9 hours and 2 minutes. This journey would require two charging stops from 1% to 44%, with a total charging time of 42 minutes.

Onboard Charger

The standard onboard charger supports up to 19.2 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 9 hours and 53 minutes using a home charging setup.

Charge Port

The charge port is located on the left rear side, making it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Bidirectional Charging

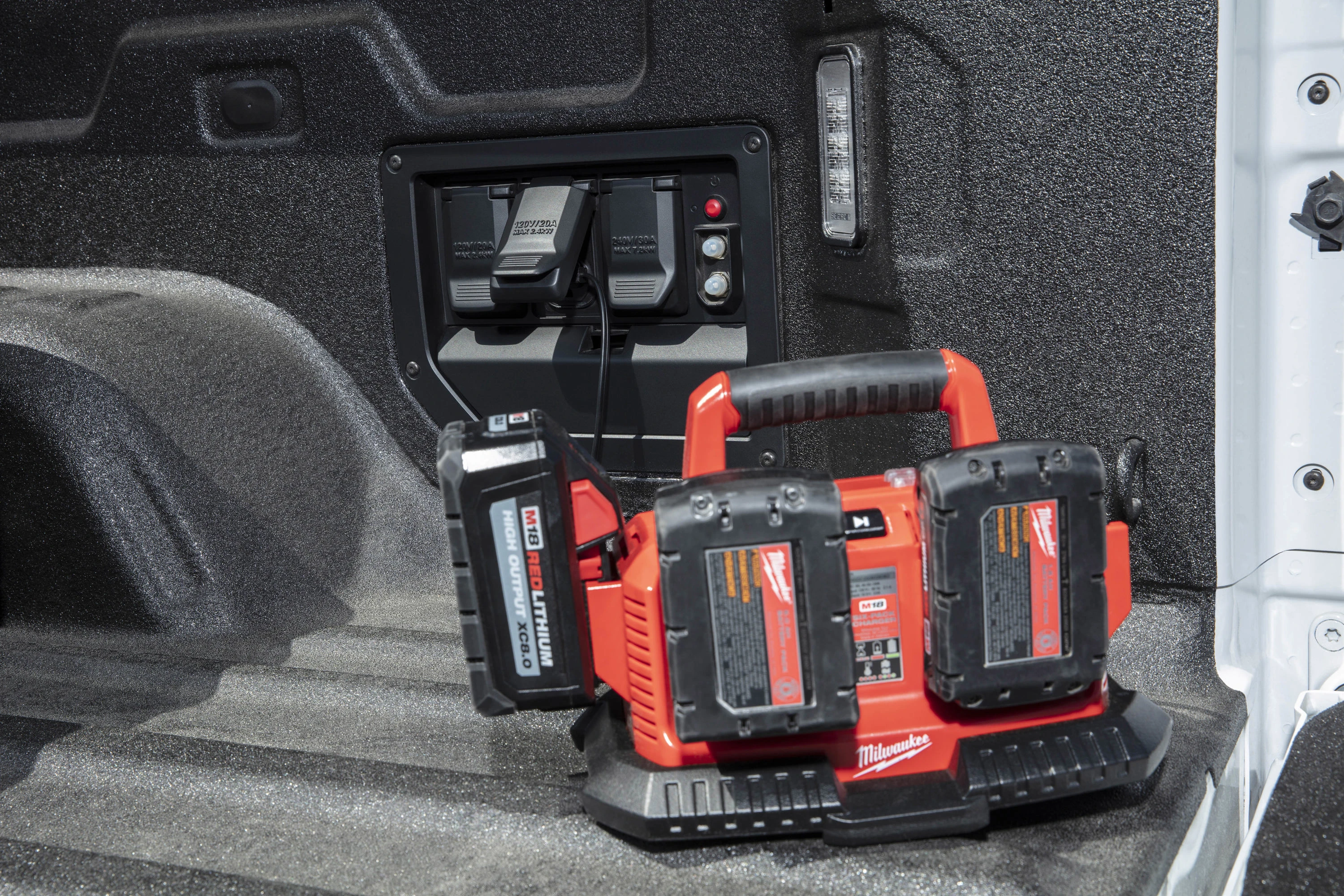

This model supports V2L (Vehicle to Load), allowing you to power electrical equipment requiring up to 10.2 kW of power, including the ability to charge other vehicles.

Drivetrain

The Chevrolet Silverado EV 3WT features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension employs a double wishbone design, while the rear uses a Multilink setup. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 227 mm.

Brakes

The Chevrolet Silverado EV 3WT is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 368 mm, while the rear discs are 345 mm.

Regenerative Braking

Automatic regeneration is not available in this model. However, regenerative braking is facilitated through one-pedal driving combined with blended brakes. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes and Creep mode moves the car forward at low speed.

Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are three levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative power is 400 kW.

Exterior

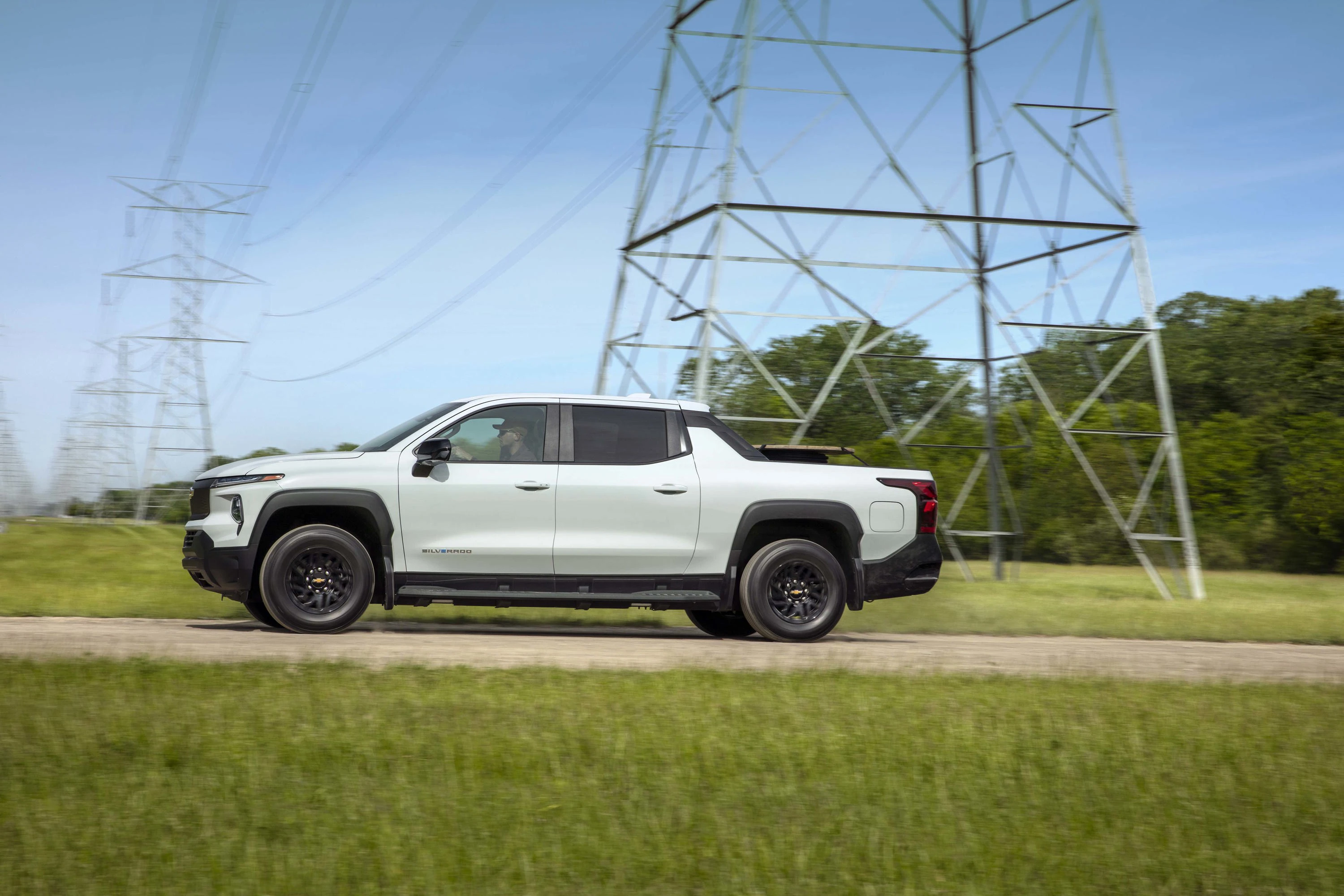

The Chevrolet Silverado EV 3WT, with dimensions of 5920 mm in length, 2072 mm in width, and 2009 mm in height, stands out in the Full-size Pick-Up truck category, offering exceptional space, power, and capability. The Chevrolet Silverado EV 3WT is available in a total of 1 paint colors, including several striking metallic options.

You can select from multiple wheel designs, all available in the same size, on the Chevrolet Silverado EV 3WT, allowing you to personalize your vehicle to match your style and driving preferences. The available tire and wheel combinations include:

265/70 tires on 18" rims

The car has four regular doors and a tailgate where the gate falls down.

There is only one roof option for this model. The standard is just a regular roof.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

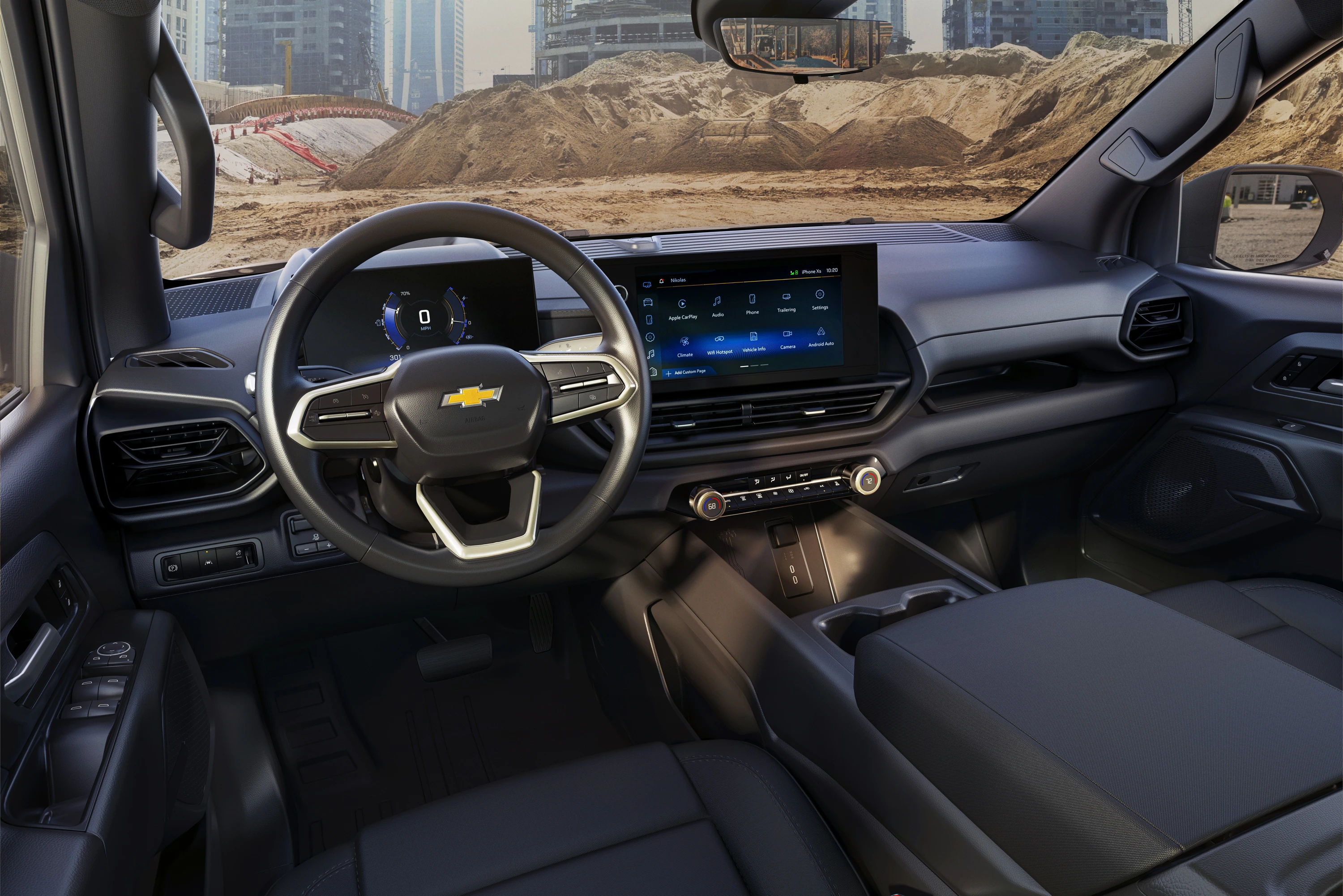

The Chevrolet Silverado EV 3WT boasts a driver-centric interior, enhancing the cockpit feel with medium-quality materials used throughout. It also includes a traditional center console that separates the driver and passenger, providing convenient storage and functionality.

Seats

The Chevrolet Silverado EV 3WT accommodates five passengers with two front seats and a three-seat bench in the rear.

First Row Seats

The Chevrolet Silverado EV 3WT offers a single type of front seat.

The following functionalities are available on the standard seat:

Fore-and-aft adjustment (manually adjustable)
Recline adjustment (manually adjustable)
Height adjustable headrest

Available in:

Black leatherette upholstering

Second Row Seat

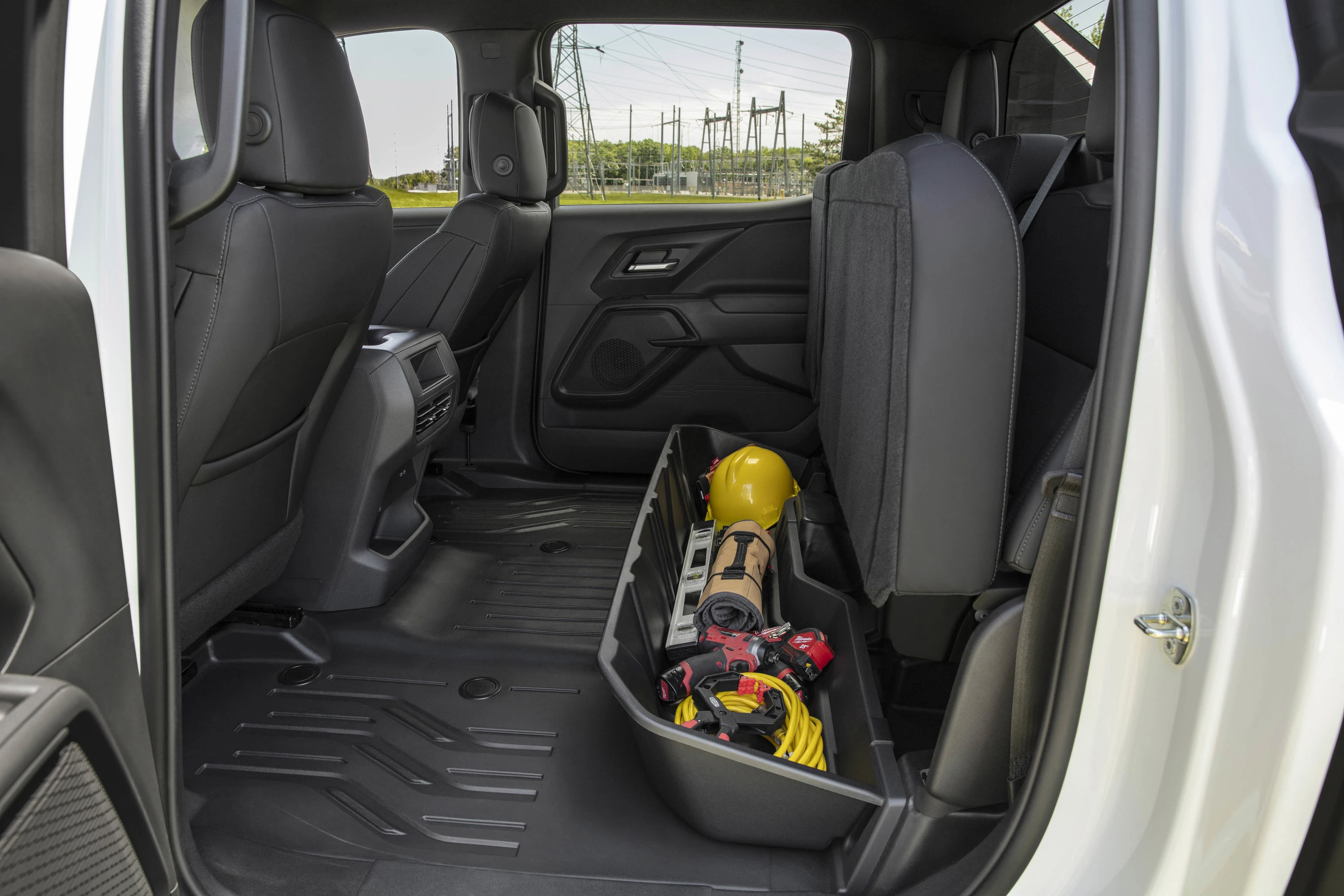

The second row features a standard three-seat bench with a split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Height adjustable headrest

Climate System

There is one climate system available:

2-zone climate system: Supports different temperatures for the driver and passenger.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Chevrolet Silverado EV 3WT includes several features to enhance comfort and convenience:

User Interface and Control

The control interface for the Chevrolet Silverado EV 3WT combines buttons, stalks, and screens for a seamless and user-friendly experience.

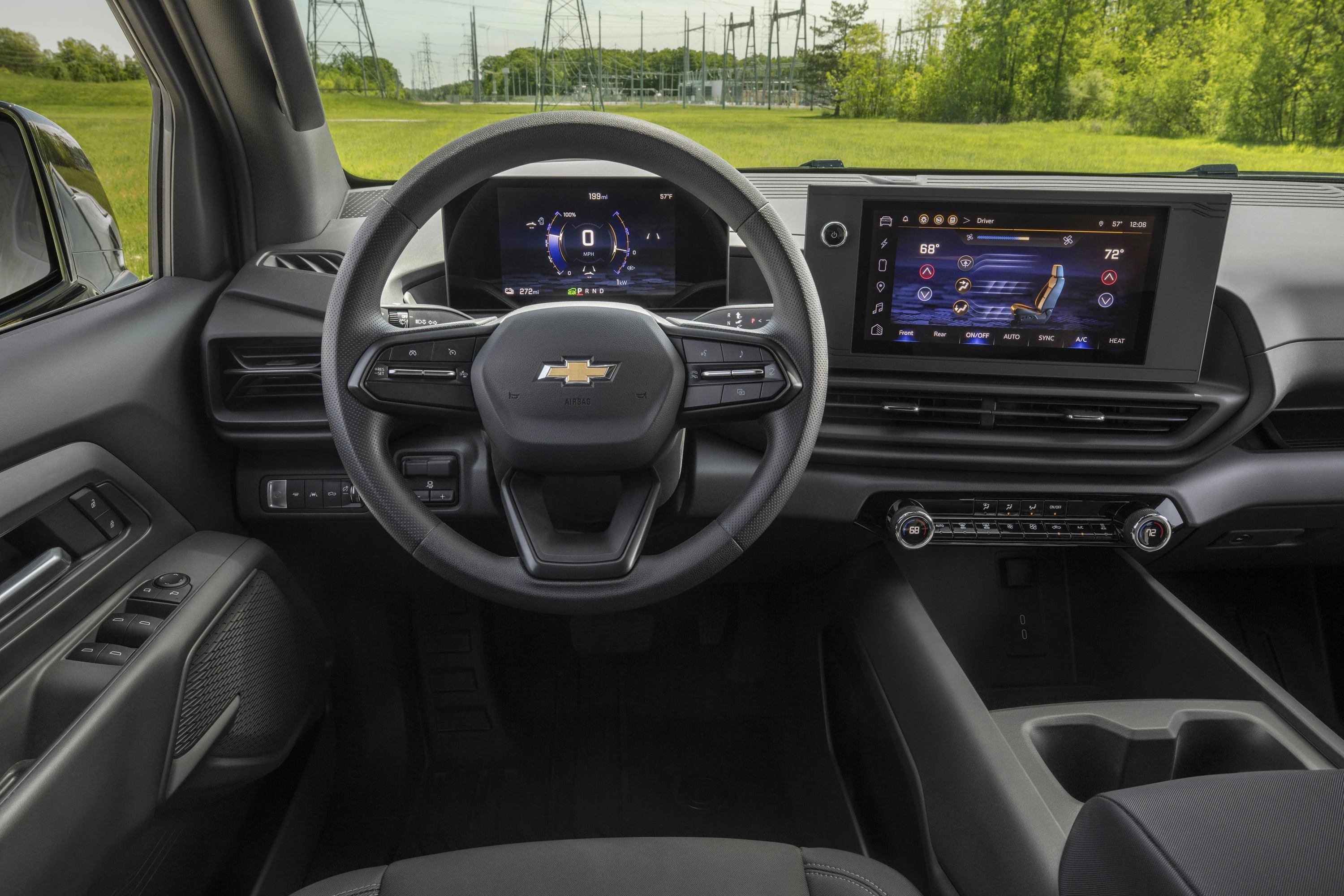

The Chevrolet Silverado EV 3WT has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

The screen behind the steering wheel mounted into the dashboard is 5.0 inches large
The touch screen on the dashboard’s center is 11.0 inches large

The model does not include a head-up display.

Steering Wheel

The Chevrolet Silverado EV 3WT is equipped with a single type of steering wheel:

Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

The Chevrolet Silverado EV 3WT features an advanced infotainment system built on Android Automotive OS with Google Automotive Services, offering a seamless integration of Google apps and services directly into the vehicle. This robust system includes built-in Google Maps for navigation, Google Assistant for voice commands, and access to a wide range of apps via the Google Play Store. Chevrolet has further enhanced this platform by integrating their own suite of applications, providing comprehensive car settings and additional features tailored to the Chevrolet driving experience.

The built-in navigation system uses detailed maps and offers advanced route planning. The system provides real-time traffic information ensuring an efficient and stress-free journey.

App Store

The infotainment system includes an App Store where you can download third-party apps to run natively on the car’s screen without needing a connected phone. Available apps vary by market but include popular options such as:

Spotify: Stream millions of songs, playlists, and podcasts directly from your car’s infotainment system, providing endless entertainment options for your drive.
The Weather Channel
Audiobooks.com

Phone Mirroring

The Chevrolet Silverado EV 3WT supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The Chevrolet Silverado EV 3WT comes equipped with one sound system option:

Chevrolet Sound System: Features six speakers and delivers a maximum output of 200 watts.

Additionally, the model includes 4 USB-C connections as standard.

Mobile App

The Chevrolet Silverado EV 3WT comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:

Locate Your Vehicle: Easily check the current location of your car.
Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
Lock & Unlock: Securely lock or unlock your car doors with a tap.
Adjust Charging Target: Set your desired State of Charge to start or stop charging as needed.
Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
Route Planning: Plan your route and send it directly to your car’s navigation system.

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Chevrolet Silverado EV 3WT features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Chevrolet Silverado EV 3WT, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Chevrolet Silverado EV 3WT, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Chevrolet Silverado EV 3WT, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Rear Cross Traffic Alert (RCTA): Standard on the Chevrolet Silverado EV 3WT, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the Chevrolet Silverado EV 3WT, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Chevrolet Silverado EV 3WT, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Blind-spot Monitoring (BSM) : Standard on the Chevrolet Silverado EV 3WT, this side assist system helps to detect traffic in blind spots.

Driving Automation

The Chevrolet Silverado EV 3WT offers driving automation at level 1, depending on the equipment level.

With the Super Cruise level 1 system, you get the following driving automation features.

Adaptive Cruise Control (ACC)

Sensors & Cameras

This model uses cameras, radar, and ultrasonic sensors for its driver assist systems. Up to five radar sensors, five cameras, and four ultrasonic sensors monitor the vehicle’s surroundings.

Security and Access Technologies

The Chevrolet Silverado EV 3WT is equipped with advanced security features to protect you and your vehicle. These include:

Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The truck bed offers a cargo capacity of 1039 liters (36.7 CU FT). It has a width of 1286 mm (50.6 inches) and a length of 1803 mm (71.0 inches), with a maximum load weight of 614 kg (1353.6 lbs). Additionally, there is a frunk (front trunk) with a storage capacity of 303 liters (10.7 CU FT).

The vehicle’s maximum weight is 4532 kg (9991 lbs), with a base weight of 3716 kg (8192 lbs). This allows for a maximum load of 816 kg (1799 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 5670 kg (12500 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).

Availability & Pricing

The Chevrolet Silverado EV 3WT had its world premiere on 05.01.2022, with deliveries starting in September 2023. Please note that this model is available exclusively in North America.
