Volkswagen e-Golf 24.2 kWh

2014, 2015, 2016

Last modified: Mar 24, 2026

The Volkswagen e-Golf 24.2 kWh is an all-electric hatchback offering a WLTP range of up to 150 km (93 miles). EVKX.net has all the details you need.

We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The Volkswagen e-Golf 24.2 kWh has a maximum power of 85 kW (116 hp / 114 bhp) and a total torque of 270 Nm (199 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 10.4 seconds and reaches a top speed of 140 km/h (87 mph).

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 24.2 kWh and a net usable capacity of 20.5 kWh, providing a 3.7 kWh buffer (15.3%) for battery protection. With a nominal voltage of 323 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle's range is 150 km (93 miles), with an energy consumption rate of 13.7 kWh/100 km (3 mi/kWh).

For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 40 kW. Charging from 0% to 100% takes approximately 55 minutes, while a typical 10% to 80% charge takes about 23 minutes with an average charging speed of 38 kW.

Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 0% to 77%. This results in an effective charging speed, including time lost, of 32 kW, with each charging session taking about 30 minutes and 46 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 21 kWh/100 km, the trip would take about 14 hours and 22 minutes, needing en 12 charging stops from 0% to 78%, totaling 362 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 7.2 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 2 hours and 50 minutes with a standard home setup.

Charge Port

The location of the charge port is on the right rear side. This placement makes it easy to use charging stations that require backing up to connect.

Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Volkswagen e-Golf 24.2 kWh has a front-wheel drive system supported by one motor on the front axle.

Suspension

The suspension system features a MacPherson strut front construction and a torsion beam rear construction. Both the front and rear dampers are monotube dampers, providing consistent performance and durability. The front and rear springs are coil springs, offering a balance of comfort and performance.

The Standard suspension has a fixed height and damping characteristics.

Ground clearance with this setup is 142 mm.

Drive Modes

The Volkswagen e-Golf 24.2 kWh lets the user select different drive modes that affect the car's handling.

Brakes

The Volkswagen e-Golf 24.2 kWh is equipped with cast-iron disc brakes on both the front and rear.
The front discs measure 312 mm, while the rear discs are 272 mm.

Regenerative Braking

Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen.

However, it is not considered full one-pedal driving since, at low speeds, the vehicle will keep rolling until it comes to a stop by itself.

Drivers can also adjust the regenerative braking strength when lifting off the accelerator. There are four levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative braking power is 40 kW.

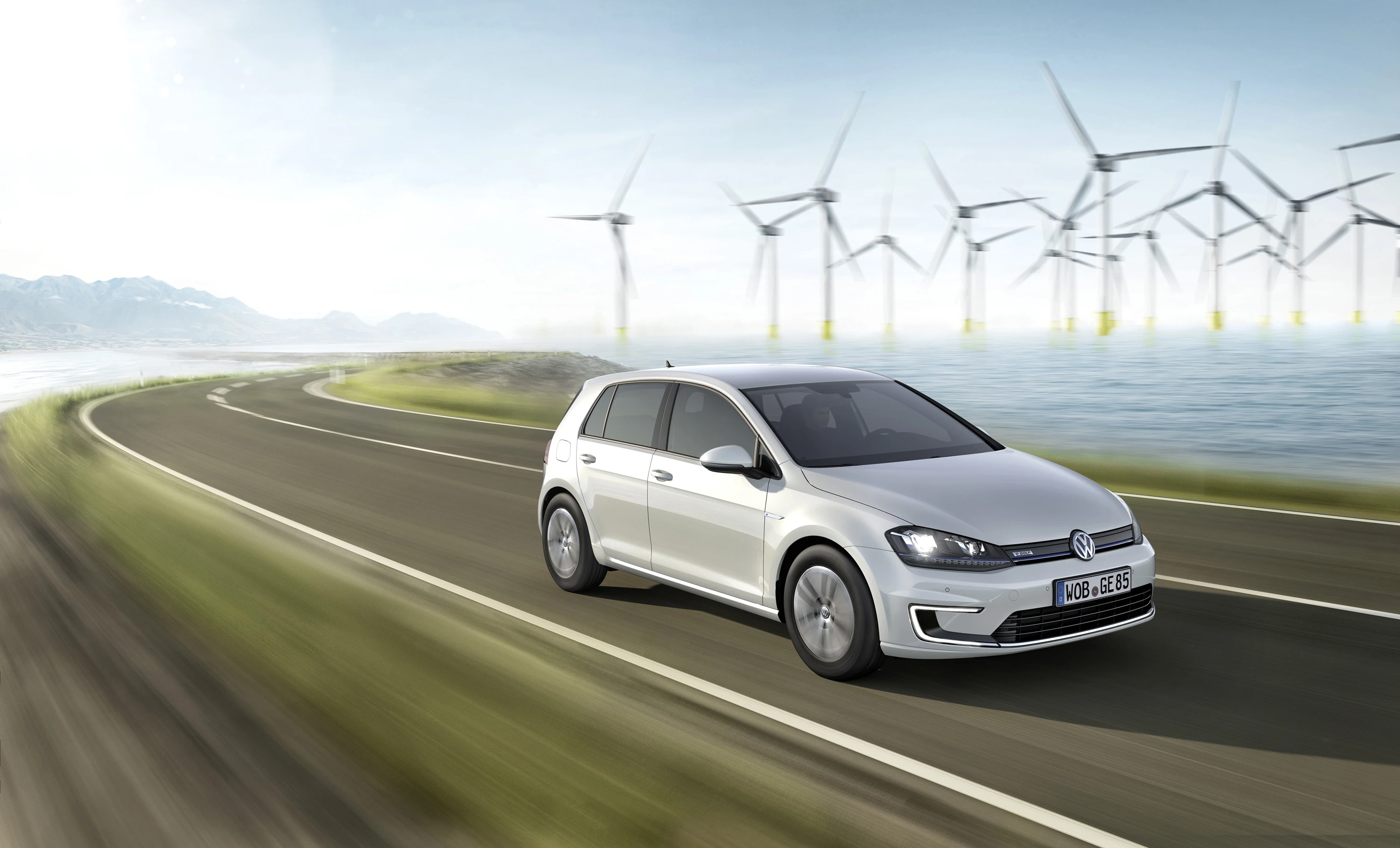

Exterior

The Volkswagen e-Golf 24.2 kWh, with dimensions of 4255 mm in length, 1799 mm in width, and 1453 mm in height, falls into the C-segment cars, also known as compact cars, strike a balance between size, performance, and affordability, making them versatile for a variety of drivers.

The Volkswagen e-Golf 24.2 kWh is available in a total of 6 paint colors, including both solid and metallic options.

The Volkswagen e-Golf 24.2 kWh offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

205/55 tires on 16" rims
225/45 tires on 17" rims

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a boot lid for the trunk.

There is only one roof option for this model.

The standard is just a regular roof.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

This model has a functional interior with a standard quality and a traditional console design. The interior is designed to be easy to use and practical, with a focus on functionality.

Seats

The Volkswagen e-Golf 24.2 kWh accommodates five passengers with two front seats and a three-seat bench in the rear.

First Row Seats

The Volkswagen e-Golf 24.2 kWh offers a single type of front seat.

The following functionalities are available on the **** seat:

Fore-and-aft adjustment (manually adjustable)
Recline adjustment (manually adjustable)
Height adjustable headrest (manually adjustable)
Heating (optional)
Adjustable lumbar support (standard for driver, not available for passenger)

Available in:

Gray/Blue fabric upholstering

Second Row Seat

The second row features a standard three-seat bench with a SixtyForty split, allowing each section to fold separately to increase cargo space.

Additional functionalities include:

Height adjustable headrest (manually adjustable)
ISOFIX (standard for outer seats)

Interior Storage

The Volkswagen e-Golf 24.2 kWh provides ample interior storage solutions to enhance convenience and organization:

Glove Compartment: A spacious glove compartment is situated in the dashboard in front of the passenger, ideal for storing essential items.

Interior Lighting

The Volkswagen e-Golf 24.2 kWh offers a range of interior lighting options designed to create a pleasant ambiance and enhance visibility.

en interior.light.reading.roof
en interior.light.ambient.footwell
en interior.light.reading.glovebox
en interior.light.ambient.trunk

Climate System

There is one climate system available:

2-zone climate system: Supports different temperatures for the driver and passenger.

This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.

Comfort Features

The Volkswagen e-Golf 24.2 kWh includes several features to enhance comfort and convenience:

User Interface and Control

The control interface of the Volkswagen e-Golf 24.2 kWh combines physical buttons, steering column stalks, and touchscreen displays to create a seamless and intuitive user experience.

en uicontrols.uncategoriezed

Key screen details:

Center Dashboard Touchscreen: A 8.0-inch touchscreen located in the center of the dashboard. It serves as the main interface for infotainment, navigation, and vehicle settings.

The Volkswagen e-Golf 24.2 kWh does not include a head-up display, so driving information such as speed and navigation cues is not projected into the driver’s line of sight on the windshield.

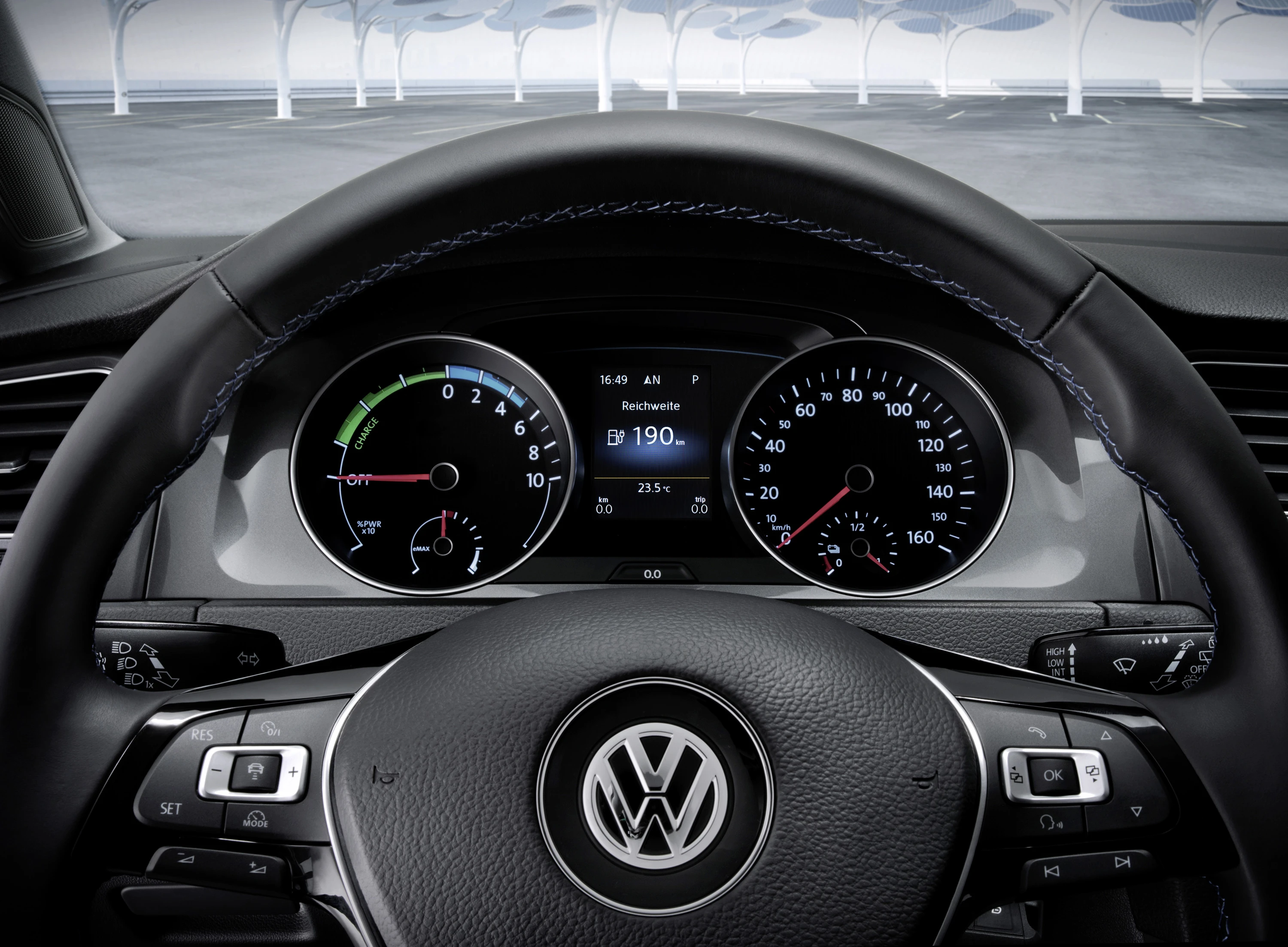

Steering Wheel

The Volkswagen e-Golf 24.2 kWh is equipped with a single type of steering wheel:

The steering wheel is adjustable for both tilt and telescope. The adjustment is manual.

Design: Three-spoke flat-bottom

Controls: Physical buttons

Heating: Available as an option

From the steering wheel you can control:

Media volume
en uicontrols.controls.phone
en uicontrols.controls.cruisecontrol
en uicontrols.controls.voicecontrol
en uicontrols.controls.tripcomputer

Mirrors

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

Infotainment

en infotainment.os.VW MIB II

Navigation System

The built-in navigation system uses detailed maps and offers advanced route planning. The system provides real-time traffic information ensuring an efficient and stress-free journey.

Sound System

You can choose between two sound systems for the Volkswagen e-Golf 24.2 kWh:

Standard: Features eight speakers and delivers a maximum output of 28 watts.
Fender Premium Audio: Features nine speakers and delivers a maximum output of 400 watts.

The model has 1 USB-A connections as standard.

Mobile App

The Volkswagen e-Golf 24.2 kWh comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:

Locate Your Vehicle: Easily check the current location of your car.
Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
Lock & Unlock: Securely lock or unlock your car doors with a tap.
Scheduled Charging: Plan and schedule charging sessions ahead of your trips.
Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
Driving History: Review the details of your past trips.

Lights

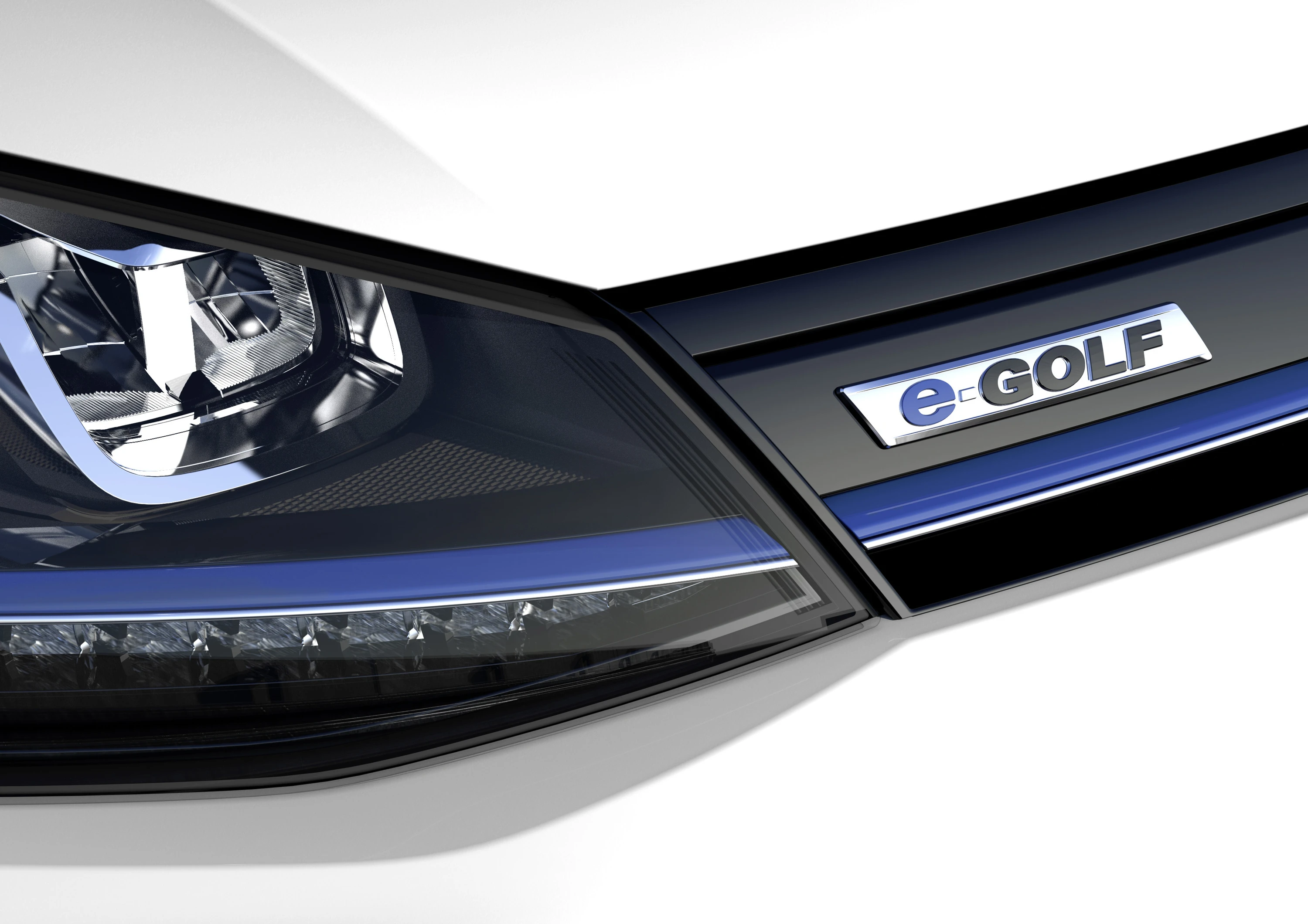

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination. For enhanced safety, the headlights also include corner lights that illuminate the side when turning.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Volkswagen e-Golf 24.2 kWh features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Volkswagen e-Golf 24.2 kWh, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Volkswagen e-Golf 24.2 kWh, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Optional on the Volkswagen e-Golf 24.2 kWh, this system helps prevent the vehicle from drifting out of its lane.
It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Forward Collision Warning (FCW): Standard on the Volkswagen e-Golf 24.2 kWh, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Optional on the Volkswagen e-Golf 24.2 kWh, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Blind-spot Monitoring (BSM): Optional on the Volkswagen e-Golf 24.2 kWh, this system helps detect traffic in blind spots.

Driving Automation

With the standard system the model offers no driving automation.

Adaptive Cruise Control (ACC)
Automatic parking. (optional)

Sensors & Cameras

This model uses cameras and ultrasonic sensors for its driver assist systems.

Up to one cameras and en 12 ultrasonic sensors monitor the vehicle’s surroundings.

Safety

The Volkswagen e-Golf 24.2 kWh is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:

Front airbags for the driver and front passenger
Side curtain airbags for both the first and second rows
Side airbags for the driver and front passenger

The front and rear seatbelts are equipped with pyrotechnic pretensioners and load limiters. In the event of a collision, the pretensioners tighten the seatbelts to secure occupants firmly in their seats, while the load limiters allow a controlled amount of webbing to extend, reducing the risk of injury from excessive force.

Security and Access Technologies

The Volkswagen e-Golf 24.2 kWh is equipped with advanced security features to protect you and your vehicle. These include:

Keyless Entry and Start: With the standard keyless start and optional keyless entry, you can unlock and start the vehicle seamlessly without removing the key from your pocket or bag.
Alarm System: An optional integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and enhance vehicle security.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 343 liters (12.1 CU FT). With the rear seat folded down, this expands to 1233 liters (43.5 CU FT).

On the roof, you can load up to 75 kg (165.3 lbs).

The vehicle’s maximum weight is 1960 kg (4321 lbs), with a base weight of 1510 kg (3329 lbs). This allows for a maximum load of 450 kg (992 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

This model is not available with a towbar. So, to pull a trailer, you must look at other models.
