Last modified: Nov 18, 2024

Toyota bZ4X AWD

Toyota bZ4X AWD is an all-electric SUV with a WLTP range of up to 466 km (290 miles). EVKX.net has all the details.

Toyota bZ4X AWD

Toyota bZ4X AWD

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The Toyota bZ4X AWD offers modest performance with a maximum power of 160 kW (218 hp / 215 bhp) and a total torque of 337 Nm (249 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 6.9 seconds and has a top speed of 160 km/h (99 mph), aligning more closely with traditional internal combustion engine vehicles.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 71.4 kWh and a net usable capacity of 64.0 kWh, providing a 7.4 kWh buffer (10.4%) for battery protection. With a nominal voltage of 355.2 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 466 to 415 km (290-258 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 13.7 kWh/100 km for the base model and 15.4 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 147 kW. Charging from 0% to 100% takes approximately 84 minutes, while a more typical scenario from 10% to 80% takes 38 minutes with an average charging speed of 70 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 4% to 48%. This results in an effective charging speed, including time lost, of 78 kW, with each charging session taking about 22 minutes and 33 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 23 kWh/100 km, the trip would take approximately 10 hours and 28 minutes. This journey would require five charging stops from 1% to 53%, with a total charging time of 128 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 5 hours and 49 minutes using a home charging setup.

Charge Port

The location of the charge port is on the left front side. This location makes it easy to charge stations where you park side into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Toyota bZ4X AWD features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.

Suspension

The standard suspension has a fixed height and damping. The ground clearance with this suspension is 177 mm.

Steering

Dynamic steering is a standard on the Toyota bZ4X AWD, varying the steering ratio based on driving speed for enhanced control and comfort.

Drive Modes

The Toyota bZ4X AWD lets the user select different drive modes that affect the car’s handling. The driver can choose between 3 modes:

  • Normal: Balanced steering and throttle.
  • X-Mode: Dynamic steering and throttle.
  • Eco: Balanced steering and efficent throttle.

Brakes

The Toyota bZ4X AWD is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 328 mm, while the rear discs are 317 mm.

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving. However, it is not considered full one-pedal driving since, at low speeds, the vehicle will keep rolling until it comes to a stop by itself.

Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are four levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative power is 100 kW.

Exterior

The Toyota bZ4X AWD, with dimensions of 4690 mm in length, 1860 mm in width, and 1600 mm in height, falls into the Compact SUVs category, also known as C-SUVs. These offer a balance between the practicality and maneuverability of smaller vehicles and the space and versatility of larger SUVs. The Toyota bZ4X AWD is available in a total of 11 paint colors, including solid, metallic, and pearlescent options. Some of these paint options include two-tone paints where the roof and upper part of the body are painted in a different color, providing a distinctive and stylish look.

The Toyota bZ4X AWD offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

  • 235/60 tires on 18" rims
  • 235/50 tires on 20" rims

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a hatchback-style liftgate.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a panoramic roof. The glass has two panels. One over the first and the second rows. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. Both glass panels have an electric curtain that occupants can use to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Toyota bZ4X AWD

Toyota bZ4X AWD

Interior

The interior of the Toyota bZ4X AWD is functional, featuring medium-quality materials in several areas instead of hard plastic. A standout feature is the split-level center console, which separates the driver and passenger while offering convenient storage and enhanced functionality. You can choose between different types of seat materials and interior styling. You can choose between several interior designs.

Seats

The Toyota bZ4X AWD accommodates five passengers with two front seats and a three-seat bench in the rear.

First Row Seats

The Toyota bZ4X AWD offers a single type of front seat.

The following functionalities are available on the standard seat:

Available in:

Second Row Seat

The second row features a standard three-seat bench with a 40:60 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Toyota bZ4X AWD

Toyota bZ4X AWD

Climate System

There is one climate system available:

  • 2-zone climate system: Supports different temperatures for the driver and passenger.

This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.

Comfort Features

The Toyota bZ4X AWD includes several features to enhance comfort and convenience:

  • Wireless Phone Charging

User Interface and Control

The control interface for the Toyota bZ4X AWD combines buttons, stalks, and screens for a seamless and user-friendly experience.

Two different screen setups are available on the Toyota bZ4X AWD.

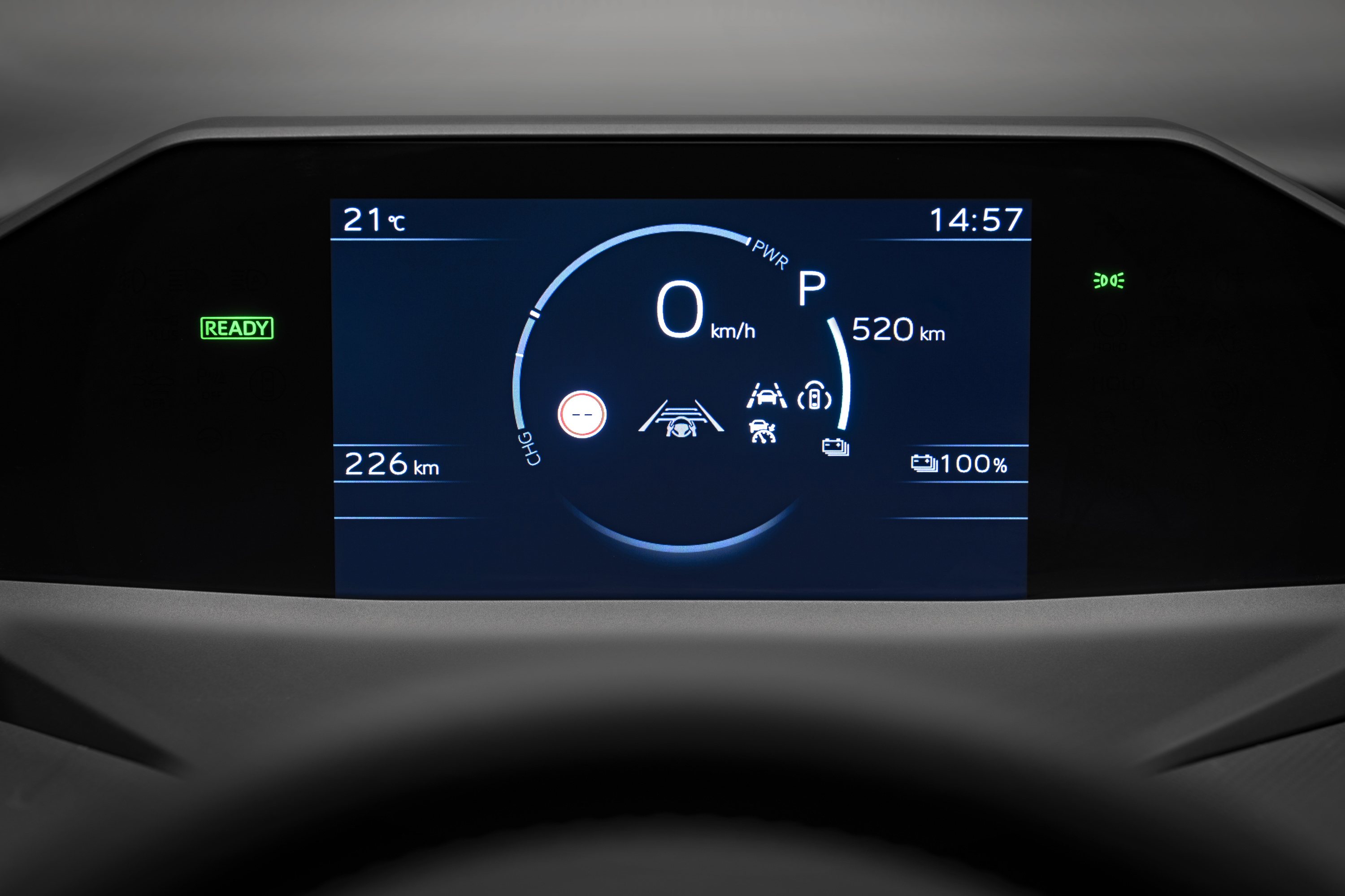

The standard layout has the following configuration. Behind the steering wheel is a digital instrument cluster, and in the center console, there is one infotainment screen at the top of the center console.

Key screen details:

  • The touch screen behind the steering wheel integrated into the dashboard is 7.0 inches large
  • The touch screen at the top of the center console is 8.9 inches large

The optional layout has the following configuration. Behind the steering wheel is a digital instrument cluster, and in the center console, there is one infotainment screen at the top of the center console.

Key screen details:

  • The touch screen behind the steering wheel integrated into the dashboard is 7.0 inches large
  • The touch screen at the top of the center console is 12.3 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

Toyota bZ4X AWD

Toyota bZ4X AWD

Steering Wheel

The Toyota bZ4X AWD is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel features integrated heating for added comfort during cold weather. It also includes physical buttons, allowing you to control the infotainment system, adjust the volume, change music tracks, and manage other key functions with ease.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

The Toyota bZ4X AWD features a custom-built infotainment system designed to provide a interface with a range of features and functions to enhance the driving experience.

The built-in navigation system helps you navigate to your destination with ease. It also provides real-time traffic information, ensuring an efficient and stress-free journey. However, it does not support route planning with charging stops, requiring you to plan your charging stops manually.

Phone Mirroring

The Toyota bZ4X AWD supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

You can choose between two sound systems for the Toyota bZ4X AWD:

  • Toyota: Features six speakers and delivers a maximum output of 120 watts.
  • JBL Premium Sound: Features nine speakers and delivers a maximum output of 800 watts.

Additionally, the model includes 4 USB-C connections as standard.

Mobile App

The Toyota bZ4X AWD comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:

  • Locate Your Vehicle: Easily check the current location of your car.
  • Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
  • Remote Parking: Effortlessly control your car to park or exit a parking space remotely.
  • Lock & Unlock: Securely lock or unlock your car doors with a tap.
  • Window Control: Open and close the windows from anywhere.
  • Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
  • Driving History: Review the details of your past trips.

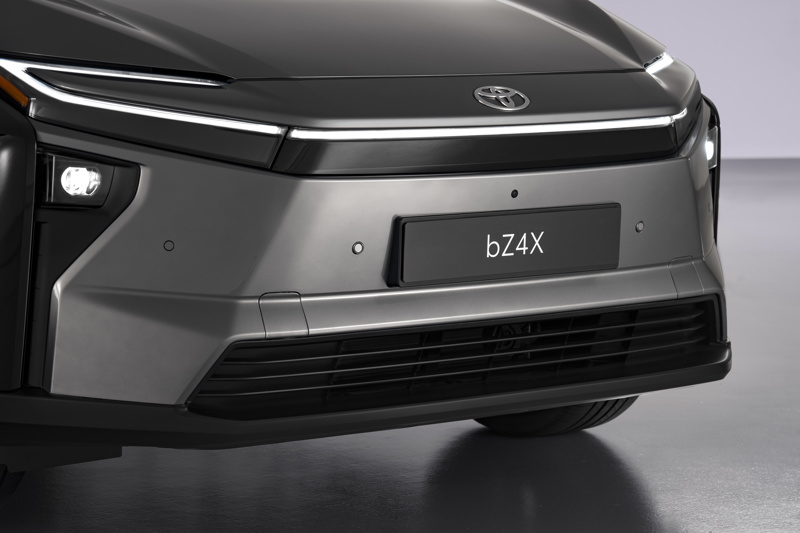

Lights

You can choose between two types of headlights for the Toyota bZ4X AWD.

  • Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
  • LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Toyota bZ4X AWD features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Toyota bZ4X AWD, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Toyota bZ4X AWD, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Toyota bZ4X AWD, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Toyota bZ4X AWD, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Toyota bZ4X AWD, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the Toyota bZ4X AWD, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Toyota bZ4X AWD, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Standard on the Toyota bZ4X AWD, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Standard on the Toyota bZ4X AWD, this side assist system helps to detect traffic in blind spots.

Exit Warning: Standard on the Toyota bZ4X AWD, this system that alerts occupants against opening doors if there is a risk of hitting something.

Driving Automation

With the standard Lane Tracing Assist level 2 system, you get the following driving automation features.

Sensors & Cameras

This model uses cameras, radar, and ultrasonic sensors for its driver assist systems. Up to five radar sensors, five cameras, and 12 ultrasonic sensors monitor the vehicle’s surroundings.

Safety

The Toyota bZ4X AWD is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:

  • Front airbags for the driver and front passenger
  • Side curtain airbags for both the first and second rows
  • Side airbags for the driver and front passenger
  • A front center airbag to prevent the driver and front passenger from colliding with each other during a side impact

Security and Access Technologies

The Toyota bZ4X AWD is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.
  • Phone-as-Key Functionality: With phone-as-key technology, you can use your smartphone as a digital key to unlock and start the vehicle, providing an additional layer of convenience and flexibility.
  • Alarm System: An optional integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and enhance vehicle security.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 452 liters (16.0 CU FT). With the rear seat folded down, this expands to 1589 liters (56.1 CU FT). On the roof, you can load up to 80 kg (176.4 lbs). Optional roof rails are available for easy mounting of a roof box or rack.

The vehicle’s maximum weight is 2550 kg (5622 lbs), with a base weight of 2010 kg (4431 lbs). This allows for a maximum load of 540 kg (1190 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 750 kg (1653 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).

Toyota bZ4X AWD

Toyota bZ4X AWD

Availability & Pricing

The Toyota bZ4X AWD had its world premiere on 29.10.2021, with deliveries starting in July 2022.

Pricing

Pricing may vary depending on local conditions, incentives, and promotions. Below are the starting prices for select countries:

  • 460 900,00 NOK (Norway)
