Last modified: Nov 18, 2024

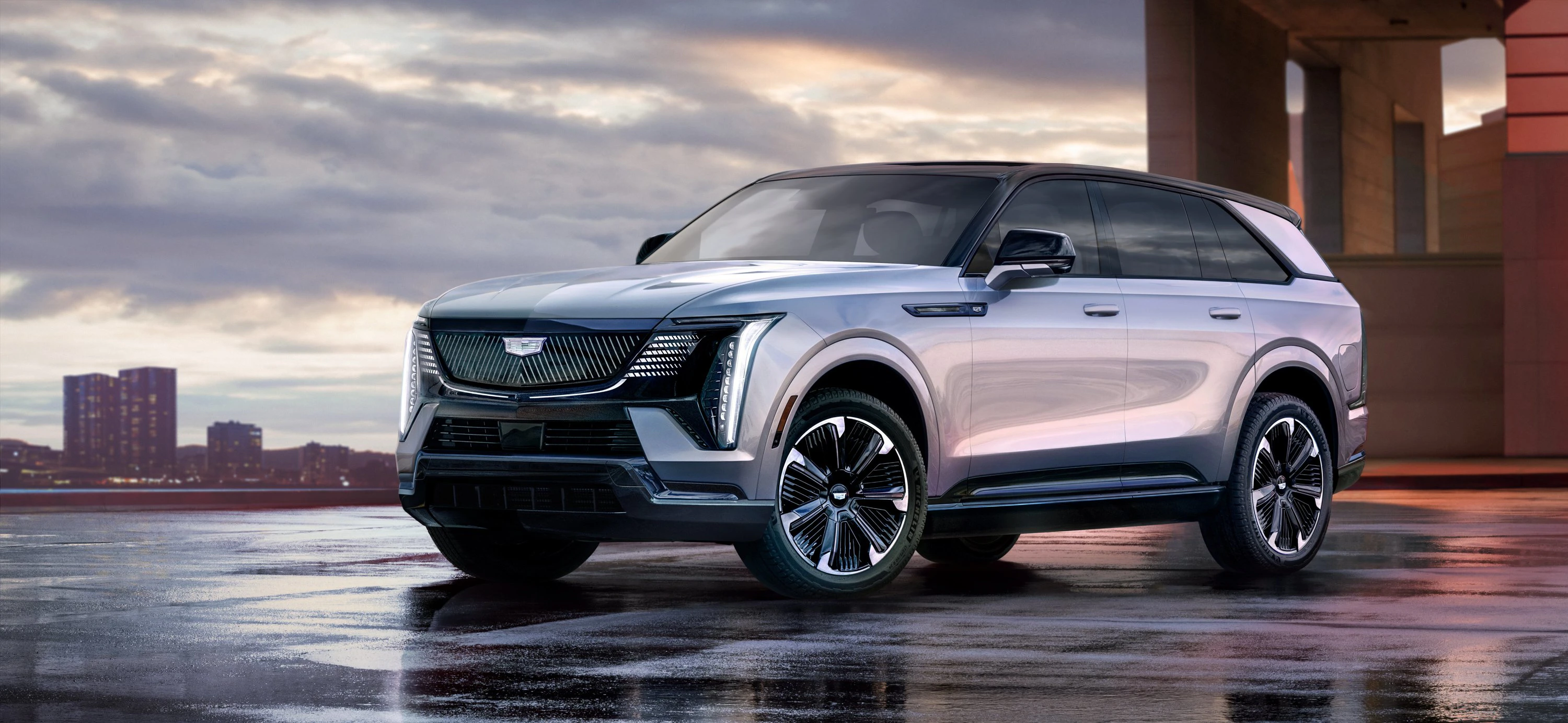

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ is an all-electric SUV with a EPA range of up to 740 km (460 miles). EVKX.net has all the details.

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The Cadillac ESCALADE IQ packs an impressive punch with a maximum power of 560 kW (761 hp / 751 bhp) and a commanding total torque of 1064 Nm (785 lb-ft). This high-performance machine can sprint from 0 to 100 km/h (0 to 62 mph) in just 4.9 seconds, and it reaches a top speed of 200 km/h (124 mph), making it a standout in its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 225.0 kWh and a net usable capacity of 215.0 kWh, providing a 10.0 kWh buffer (4.4%) for battery protection. With a nominal voltage of 355 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

According to the EPA (Environmental Protection Agency) standard, the vehicle has an range of 460 miles (740 km) with an energy consumption rate of 2.1 miles per kWh. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 350 kW. Charging from 0% to 100% takes approximately 143 minutes, while a more typical scenario from 10% to 80% takes 50 minutes with an average charging speed of 182 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 48%. This results in an effective charging speed, including time lost, of 241 kW, with each charging session taking about 25 minutes and 10 seconds. This efficient charging capability makes the Cadillac ESCALADE IQ a convenient option for long-distance travel.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 35 kWh/100 km, the trip would take approximately 8 hours and 53 minutes. This journey would require one charging stops from 0% to 63%, with a total charging time of 34 minutes.

Onboard Charger

The standard onboard charger supports up to 11.5 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 18 hours and 41 minutes using a home charging setup. For faster charging, you can opt for an optional onboard charger that supports up to 19.2 kW. With this upgrade, you can achieve a full charge from 0 to 100% in just about 11 hours and 11 minutes at home.

Charge Port

The charge port is located on the left rear side, making it easy to use charge stations where you need to back up into the charger.

Bidirectional Charging

This model supports both V2L (Vehicle to Load) and V2H (Vehicle to Home) functionalities. V2L allows you to power electrical equipment requiring up to 10.2 kW of power, including the ability to charge other vehicles. V2H enables the car to serve as a backup power source for your home. You can connect equipment using a adapter on the charging port and via standard connectors in the cabin. Note that V2H requires specialized equipment in your home.

Drivetrain

The Cadillac ESCALADE IQ features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension is double wishbone, and the rear suspension is Multilink. It uses air suspension and hydraulic dampers. The suspension is fully adaptive on the front and rear axle, so height and damping can be adjusted manually and automatically. The minimum ground clearance is 152 mm, and the maximum is 250 mm.

The Easy Entry function lowers the car’s body automatically when a door is opened, facilitating easier entry and exit. Once the door closes, the body returns to its previous level.

For easier loading, you can lower the air suspension from the rear

Steering

Dynamic steering is a standard on the Cadillac ESCALADE IQ, varying the steering ratio based on driving speed for enhanced control and comfort. In addition, rear-wheel steering is available as a standard feature. Rear wheel steering reduces the turning circle when going slow.

Drive Modes

The Cadillac ESCALADE IQ lets the user select different drive modes that affect the car’s handling. The driver can choose between 4 modes:

  • Tour: Balanced steering, low suspension with efficient throttle, and balanced suspension.
  • Sport: Dynamic steering, low suspension with dynamic throttle and suspension.
  • Tow/Haul: Balanced steering, adaptive suspension height with balanced throttle, and adaptive suspension damping.
  • My Mode: User-defined settings for steering, suspension, and throttle response.

Brakes

The Cadillac ESCALADE IQ is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 355 mm, while the rear discs are 355 mm.

Regenerative Braking

Automatic regeneration is not available in this model. However, regenerative braking is facilitated through one-pedal driving combined with blended brakes. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes and Creep mode moves the car forward at low speed.

Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are three levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative power is 400 kW.

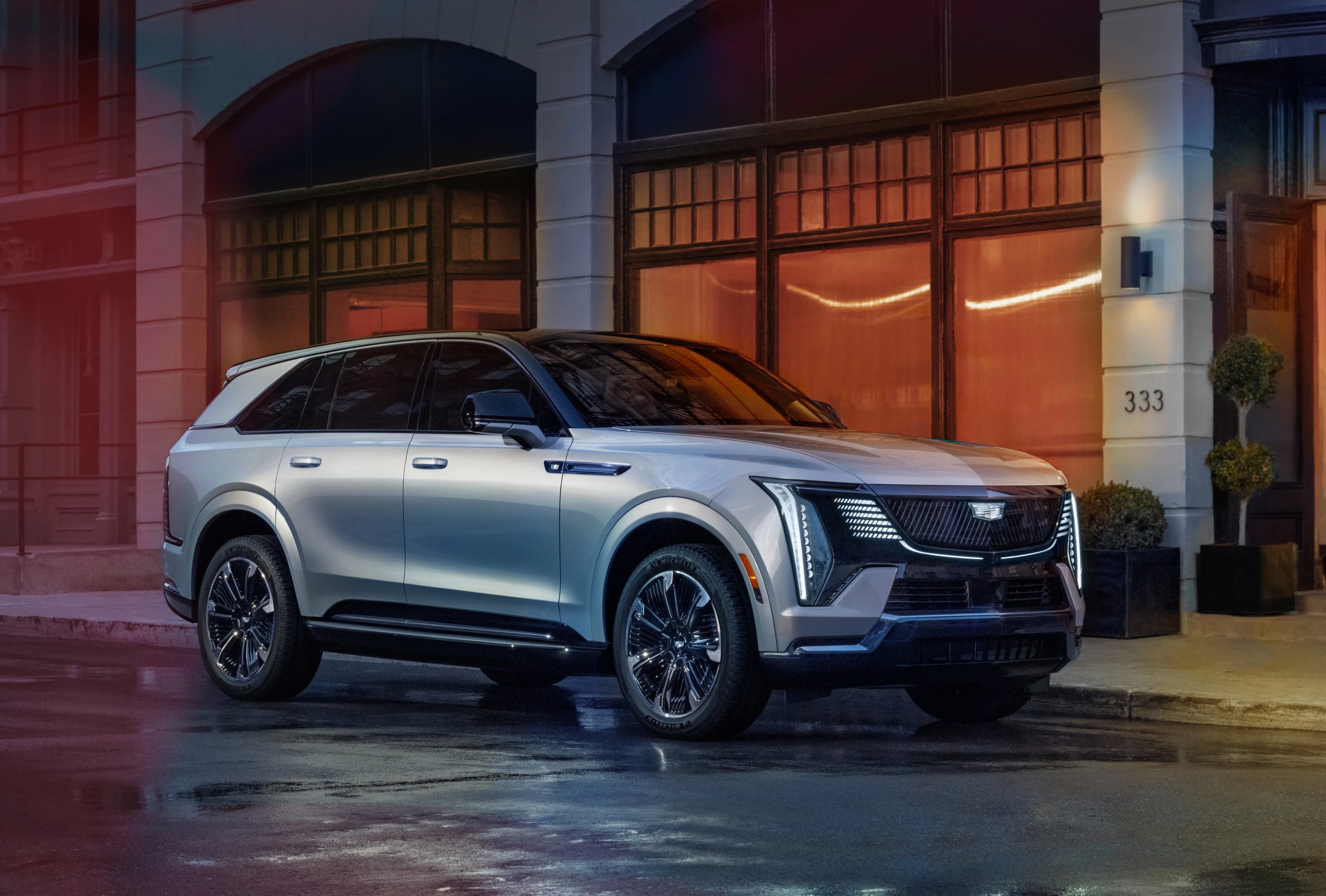

Exterior

The Cadillac ESCALADE IQ, with dimensions of 5697 mm in length, 2167 mm in width, and 1934 mm in height, falls into the Full-size SUVs offer the most space, power, and capability among SUV categories, making them suitable for a specific set of drivers with unique needs The Cadillac ESCALADE IQ is available in a total of 10 paint colors, including both solid and metallic options. Some of these paint options include two-tone paints where the roof is painted in a different color, providing a distinctive and stylish look.

You can select from multiple wheel designs, all available in the same size, on the Cadillac ESCALADE IQ, allowing you to personalize your vehicle to match your style and driving preferences. The available tire and wheel combinations include:

  • 275/50 tires on 24" rims

The car has four regular doors and a liftgate. Soft close is a standard function for the side doors. Powered doors are an optional function for the side doors. The liftgate is electric-powered and has a kick-sensor as standard.

There is only one roof option for this model. The standard roof includes a large panoramic glass roof extending from the front to the rear, enhancing the interior’s spacious and bright feel, thereby improving the mood and comfort of occupants. This glass is tinted to protect against heat from the sun.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ

Interior

The Cadillac ESCALADE IQ features a driver-centric interior, designed to enhance the cockpit feel with premium materials throughout. A notable highlight is the split-level center console, which separates the driver and passenger while offering convenient storage and enhanced functionality. You can choose between several interior designs.

Seats

The seat layout is seven seats with two in front, two seats in the second row and three seats on third row.

First Row Seats

The Cadillac ESCALADE IQ offers a single type of front seat.

The following functionalities are available on the Front bucket seats seat:

Available in:

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ

Second Row Seats

You can choose two seat types for the second row in the Cadillac ESCALADE IQ.

The standard option is two captain chairs. Additional functionalities include:

The second option is twin executive seats. Additional functionalities include:

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ

Third Row Seats

The third row has a three-seat bench with a 60:40 split. Again, you can fold down the seats when not used to create a larger cargo capacity.

Climate System

There is one climate system available:

  • 5-zone climate system: Supports different temperatures in five zones. The driver, passenger, and two zones in the the 2. row and one in the 3. row.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Cadillac ESCALADE IQ includes several features to enhance comfort and convenience:

  • Electrically Adjustable Steering Wheel
  • Wireless Phone Charging

User Interface and Control

The control interface for the Cadillac ESCALADE IQ combines buttons, stalks, and screens for a seamless and user-friendly experience.

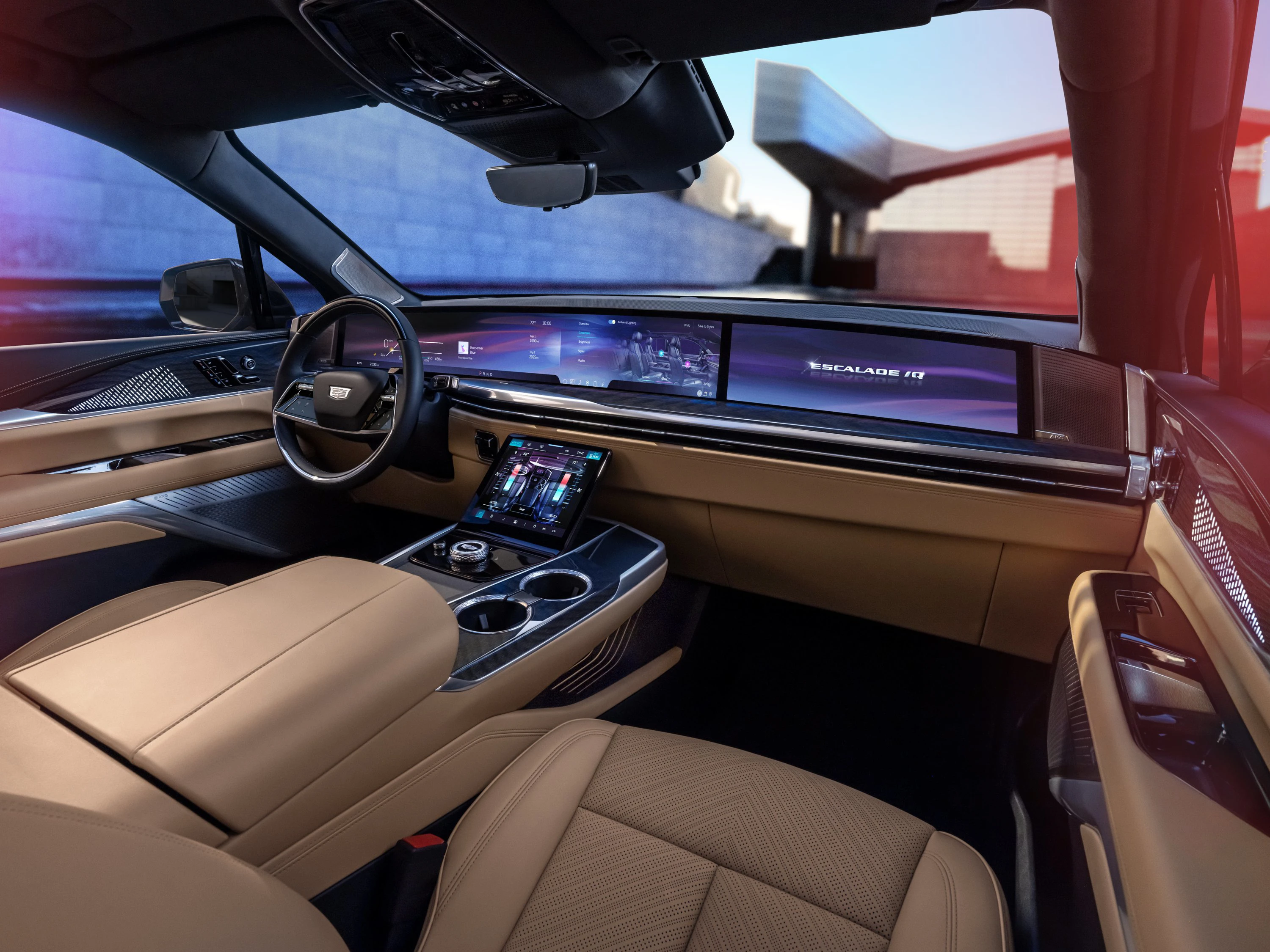

Key screen details:

  • The screen behind the steering wheel mounted into the dashboard is 35.0 inches large
  • The touch screen at the bottom of the center console is 11.0 inches large
  • The touch screen in front of the passenger on the dashboard is 20.0 inches large

A head-up display is a standard system that projects speed and other important driver information onto the windshield.

Cadillac ESCALADE IQ

Cadillac ESCALADE IQ

Steering Wheel

The Cadillac ESCALADE IQ is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel features integrated heating for added comfort during cold weather. It also includes physical buttons and scroll wheels, allowing you to control the infotainment system, adjust the volume, change music tracks, and manage other key functions with ease.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

Infotainment

The Cadillac ESCALADE IQ features an advanced infotainment system built on Android Automotive OS with Google Automotive Services, offering a seamless integration of Google apps and services directly into the vehicle. This robust system includes built-in Google Maps for navigation, Google Assistant for voice commands, and access to a wide range of apps via the Google Play Store. Cadillac has further enhanced this platform by integrating their own suite of applications, providing comprehensive car settings and additional features tailored to the Cadillac driving experience.

The built-in navigation system uses detailed maps and offers advanced route planning. The system provides real-time traffic information ensuring an efficient and stress-free journey.

App Store

The infotainment system includes an App Store where you can download third-party apps to run natively on the car’s screen without needing a connected phone. Available apps vary by market but include popular options such as:

  • Spotify: Stream millions of songs, playlists, and podcasts directly from your car’s infotainment system, providing endless entertainment options for your drive.
  • Waze

Sound System

You can choose between two sound systems for the Cadillac ESCALADE IQ:

  • AKG Studio audi System: Features 19 speakers and delivers a maximum output of 1000 watts.
  • AKG Studio Reference System: Features 40 speakers and delivers a maximum output of 1000 watts.

Additionally, the model includes 6 USB-C connections as standard.

Mobile App

The Cadillac ESCALADE IQ comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:

  • Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
  • Adjust Charging Target: Set your desired State of Charge to start or stop charging as needed.
  • Route Planning: Plan your route and send it directly to your car’s navigation system.

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination. For enhanced safety, the headlights also include corner lights that illuminate the side when turning.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Cadillac ESCALADE IQ features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Cadillac ESCALADE IQ, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Cadillac ESCALADE IQ, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Cadillac ESCALADE IQ, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Cadillac ESCALADE IQ, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Cadillac ESCALADE IQ, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the Cadillac ESCALADE IQ, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Cadillac ESCALADE IQ, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Blind-spot Monitoring (BSM) : Standard on the Cadillac ESCALADE IQ, this side assist system helps to detect traffic in blind spots.

Exit Warning: Standard on the Cadillac ESCALADE IQ, this system that alerts occupants against opening doors if there is a risk of hitting something.

Driving Automation

With the standard Super Cruise level 2 system, you get the following driving automation features.

Sensors & Cameras

This model uses cameras, radar, and ultrasonic sensors for its driver assist systems. Up to five radar sensors, five cameras, and 12 ultrasonic sensors monitor the vehicle’s surroundings.

Security and Access Technologies

The Cadillac ESCALADE IQ is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.
  • Phone-as-Key Functionality: With phone-as-key technology, you can use your smartphone as a digital key to unlock and start the vehicle, providing an additional layer of convenience and flexibility.
  • Alarm System: An integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and keep your vehicle secure.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 670 liters (23.7 CU FT). With the rear seat folded down, this expands to 3374 liters (119.2 CU FT). On the roof, you can load up to 90 kg (198.4 lbs). Optional roof rails are available for easy mounting of a roof box or rack. Additionally, there is a frunk (front trunk) with a storage capacity of 345 liters (12.2 CU FT).

The vehicle’s maximum weight is 4717 kg (10399 lbs), with a base weight of 4103 kg (9046 lbs). This allows for a maximum load of 614 kg (1354 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 3628 kg (7998 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).

Availability & Pricing

The Cadillac ESCALADE IQ had its world premiere on 09.08.2023, with deliveries starting in January 2025. Please note that this model is available exclusively in North America.

Pricing

Pricing may vary depending on local conditions, incentives, and promotions. Below are the starting prices for select countries:

  • $129 990,00 (USA)
