Lynk & Co 02

The Lynk & Co 02 is an all-electric crossover offering a WLTP range of up to 445 km (277 miles). EVKX.net has all the details you need.

We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, and steering)
• Exterior (paint colors, wheels, and more)
• Interior (seating and features)
• User interface and controls
• Infotainment system
• Lighting Systems
• Advanced Driver Assistance Systems (ADAS)
• Cargo Space and Towing

Performance

The Lynk & Co 02 offers modest performance with a maximum power of 200 kW (272 hp / 268 bhp) and a total torque of 343 Nm (253 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 5.5 seconds and has a top speed of 180 km/h (112 mph), aligning more closely with traditional internal combustion engine vehicles.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 69.0 kWh and a net usable capacity of 66.0 kWh, providing a 3.0 kWh buffer (4.3%) for battery protection. This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle's range is 445 km (277 miles), with an energy consumption rate of 14.8 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 150 kW. Charging from 0% to 100% takes approximately 87 minutes, while a typical 10% to 80% charge takes about 33 minutes with an average charging speed of 85 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 5% to 53%. This results in an effective charging speed, including time lost, of 89 kW, with each charging session taking about 21 minutes and 23 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 26 kWh/100 km, the trip would take about 10 hours and 30 minutes, needing six charging stops from 5% to 54%, totaling 131 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 22 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 3 hours and 0 minutes with a standard home setup.

Charge Port

The charge port is located on the left rear side, making it easy to use charge stations where you need to back up into the charger.

Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Lynk & Co 02 has a rear-wheel drive system supported by one motor on the rear axle.

Suspension

The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping characteristics.Ground clearance with this setup is 175 mm.

Brakes

The Lynk & Co 02 is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 350 mm, while the rear discs are 333 mm.

Regenerative Braking

Automatic regeneration is not available in this model. However, regenerative braking is available through one-pedal driving combined with blended brakes.

Interior

Seats

The Lynk & Co 02 accommodates five passengers with two front seats and a three-seat bench in the rear.

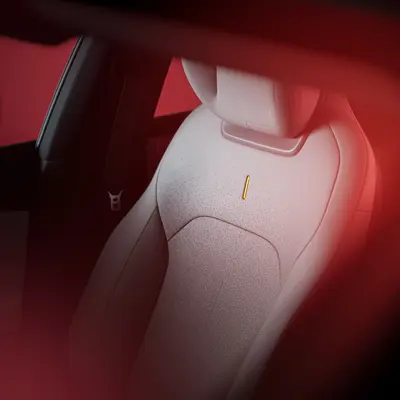

First Row Seats

The Lynk & Co 02 offers a single type of front seat.

The following functionalities are available on the **** seat:

• Fore-and-aft adjustment (manually adjustable)
• Height adjustment (manually adjustable)
• Seat cushion angle adjustment (manually adjustable)
• Heating
• Adjustable lumbar support (electrically adjustable)
• Adjustable thigh support

Available in:

• White/Blue leatherette upholstering

Second Row Seat

The second row features a standard three-seat bench with a split, allowing each section to fold separately to increase cargo space.

Additional functionalities include:

• Heating (standard for outer seats)

Climate System

Two climate system options are available:

• 1-zone climate system: Supports only controlling one shared zone for the whole car.
• 2-zone climate system: Supports different temperatures for the driver and passenger.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Lynk & Co 02 includes several features to enhance comfort and convenience:;

• Wireless Phone Charging

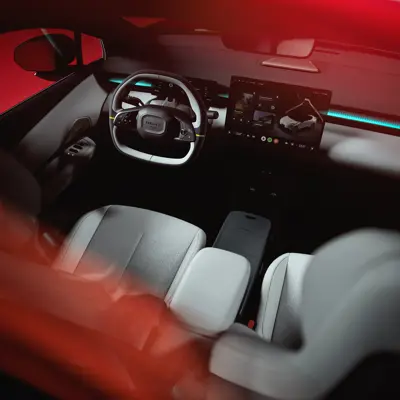

User Interface and Control

This model features a dual-screen layout, combining a compact driver display with a large central touchscreen to balance essential information and infotainment functionality.

Key screen details:

• Steering Column Display: A 10.2-inch screen mounted directly on the steering wheel column. This compact display shows essential driving information such as speed, range, and navigation prompts.
• Center Console Touchscreen: A 15.4-inch touchscreen located at the top of the center console. It serves as the primary interface for infotainment, navigation, and vehicle settings.

A standard head-up display projects key driving information—such as speed and navigation cues—onto the windshield for enhanced safety and convenience.

Steering Wheel

The Lynk & Co 02 is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel features integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

Navigation System

With the common.standardfeature in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Sound System

You can choose between two sound systems for the Lynk & Co 02:

• Harman Kardon sound system: Features en 13 speakers and delivers a maximum output of 1040 watts.
• Harman Kardon sound system: Features en 13 speakers and delivers a maximum output of 1040 watts.

Additionally, the model includes 4 USB-C connections as standard.

Mobile App

The Lynk & Co 02 comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:;

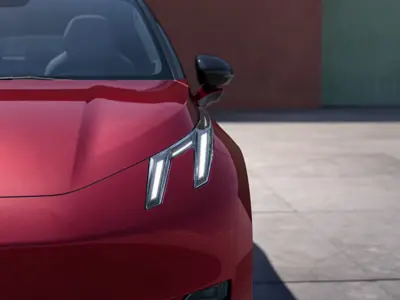

Lights

You can choose between two types of headlights for the Lynk & Co 02.

• Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
• LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Lynk & Co 02 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort. ;

Efficiency Assist: A Standard feature that helps drivers anticipate driving conditions and conserve energy.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Lynk & Co 02, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Lynk & Co 02, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Lynk & Co 02, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Lynk & Co 02, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Lynk & Co 02, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the Lynk & Co 02, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the Lynk & Co 02, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Exit Warning: Standard on the Lynk & Co 02, this system alerts occupants if there is a risk of opening a door into an oncoming object or person if there is a risk of hitting something.

Driving Automation

With the standard Pilot Assist level 2 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
• Automatic parking. (optional)
• Automatic Lane Change (ALC)

Security and Access Technologies

The Lynk & Co 02 is equipped with advanced security features to protect you and your vehicle. These include:

Keyless Entry and Start: The vehicle's keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 362 liters (12.8 CU FT). With the rear seat folded down, this expands to 904 liters (31.9 CU FT).

The vehicle’s maximum weight is 2270 kg (5004 lbs), with a base weight of 1820 kg (4012 lbs). This allows for a maximum load of 450 kg (992 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1600 kg (3527 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).

Availability & Pricing

This model made its world premiere on 4/12/2024, with deliveries anticipated to begin in February 2025.
