Leapmotor C10 69kWh RWD specifications

Last modified: Nov 22, 2025

EVKX.net provides full specifications for Leapmotor C10 69kWh RWD.

EVKX.net seeks to have the most complete specifications for Leapmotor C10 69kWh RWD. Click on image above for full article, visit the image gallery for high-res images of Leapmotor C10 69kWh RWD, visit the chargeinfo for Leapmotor C10 69kWh RWD with chargecurve, visit extended range info for real world ranges.

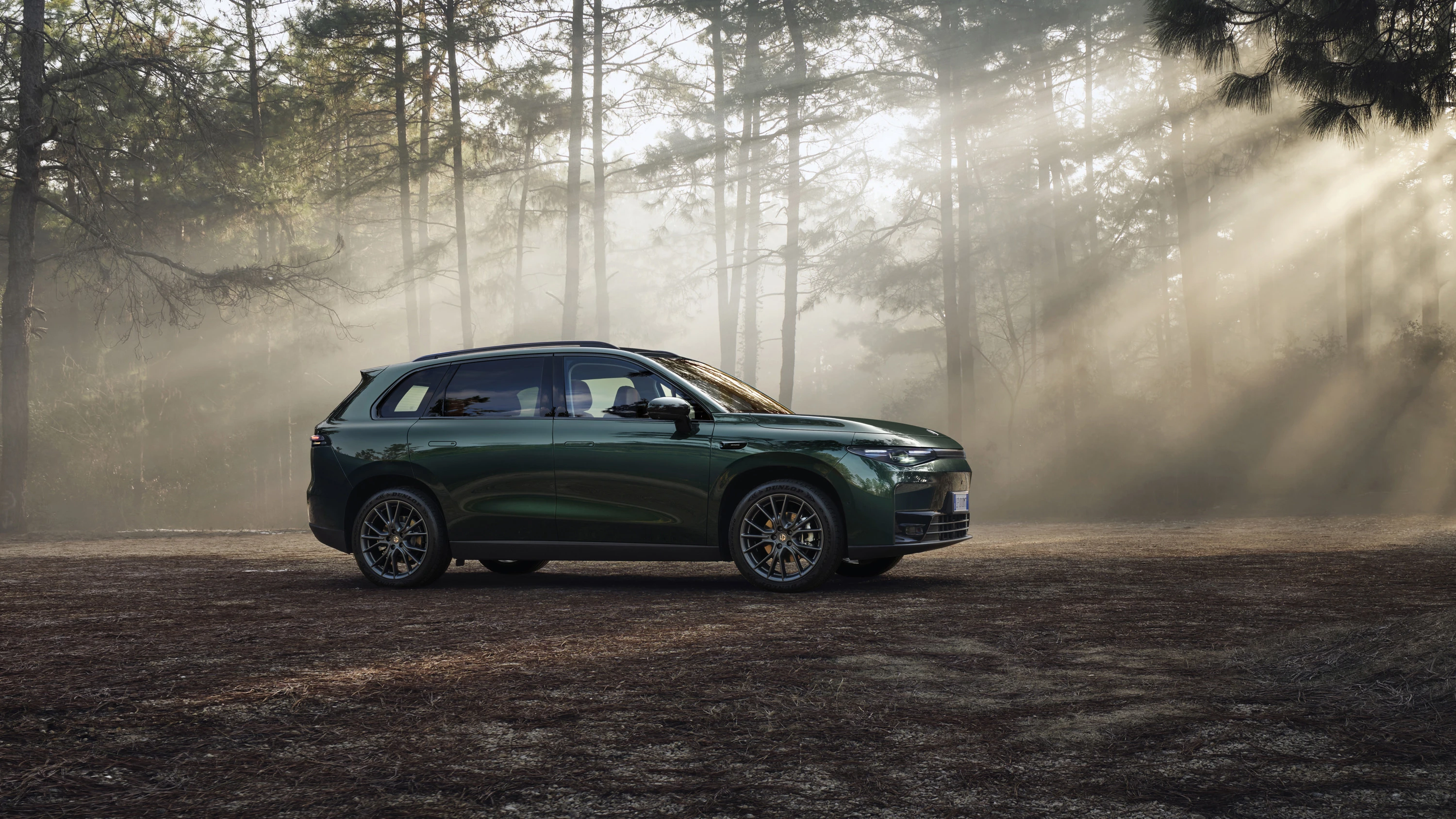

Leapmotor C10 69kWh RWD

Leapmotor C10 69kWh RWD

Performance

Power, torque and acceleration specifications

Power & Torque

Peak power
Power
170 KW (231 hp /228 bhp)
Electrical torque output
Torque
320 nm (236 lb-ft)

Speed & Acceleration

Top speed
Top Speed
170 kph (106 mph)
0-100km/h (0-62 mph)
0-100 km/h
7.29 s

Range & Consumption

Official test cycle results and real-world estimates

Below you see the offical range info. Visit our extended range info for detailed real world range examples. Visit our Range Guide to see what affects range and how the offical range values are measured.
WLTP range
420 km
WLTP
WLTP consumption
16.0 kWh/100km
Real-world
WLTP consumption with charging loss
kWh/100km
WLTP
Basic trim CLTC range
530 km
CLTC
Basic trim CLTC consumption
12.6 kWh/100km
Real-world

Battery & Charging

Battery specifications and charging capabilities

Battery gross
69.9 kWh
Gross
Battery net
67 kWh
Usable
Max DC charging
80 kW
Peak DC
Number of modules
Pack Configuration
Nominal voltage
V
Cathode Materials
LFP

Chargeport

Charging port specifications by region

Spec
Type chargeport Europe
CCS2
Europe
Type chargeport North America
CCS1
North America
Type chargeport China
GBT
China
Type chargeport Japan
CHAdeMO
Japan
Type chargeport Oceania (Australia, New Zealand ++)
CCS2
Oceania

Dimensions

📏 Basic Dimensions

📏 Length
4739 mm (186.6")
📐 Height
1680 mm (66.1")
↔️ Width excluding mirrors
1900 mm (74.8")
🔄 Width including mirrors
mm (")

🛞 Wheelbase & Track

🛞 Wheelbase
2825 mm (111.2")
⚪ Track width front
1620 mm (63.8")
⚫ Track width rear
1625 mm (64.0")

💨 Aerodynamics

💨 Drag coefficient
📐 Frontal area
m²

⛰️ Clearance & Turning

⛰️ Approach Angle
🏔️ Departure Angle
🔄 Turning circle
meter (")

Cargo Capacity and Towing Ability

Weight, cargo capacity and towing specifications

Weight Specifications

Curb weight
Empty Weight
1940 kg (4277 lbs)
2315 kg (5104 lbs)
375 kg (827 lbs)
75 kg (165 lbs)

Cargo Capacity

425 liter (15 cu-ft)
1410 liter (50 cu-ft)
liter ( cu-ft)

Towing Capacity

kg ( lbs)
kg ( lbs)
Maximum tow ball weight
Tongue
kg ( lbs)

Suspension

🎛️ Adaptive Features

🎛️ Adaptive suspension
Not available
🔧 Adjustable damping front
Not available
🔧 Adjustable damping rear
Not available

📏 Height Adjustment

📏 Adjustable height front
Not available
📏 Adjustable height rear
Not available

⬆️ Ground Clearance

⬆️ Max ground clearance
180 mm (7.1")
⬇️ Minimum ground clearance
180 mm (7.1")

🔩 Component Types

🔩 Damper type front
Monotube
🔩 Damper type rear
Monotube
🌀 Spring type front
Coil
🌀 Spring type rear
Coil
⚙️ Suspension type front
MacPhersonStrut
⚙️ Suspension type rear
Multilink

Interior

💺 Seating Configuration
This model is available with a seat configuration with five seats.

🪑 Front seats

🏷️ Seat Category

🏷️ Seat type
Driver and Passenger Seat

⚙️ Basic Adjustments

↔️ Seat depth adjustment
Standard electric feature
↕️ Seat height adjustment
Standard electric driver, not available passenger
⤴️ Backrest angle adjustment
Standard electric feature
💾 Memory
Unknown

🎛️ Advanced Adjustments

📐 Seat cushion angle adjustment
Not Available
🎚️ Height adjustable headrest
Unknown
📏 Length adjustable headrest
Not Available
🦵 Adjustable thigh support
Not Available
🔄 Backrest side bolster adjustment
Not Available
🔁 Seat cushion side bolster adjustment
Not Available

💆 Comfort Features

🦶 Footrest passenger
Not Available
🔧 Leg support passenger
Not Available
⚡ Electric lumbar adjustment
Not Available
🌬️ Seat ventilation
Optional feature
💆 Massage function
Not Available

🚗 Second row seats

🏷️ Seat Category

🏷️ Seat type
Three-seat bench

⚙️ Basic Adjustments

↔️ Seat depth adjustment
Not Available
↕️ Seat height adjustment
Not Available
⤴️ Backrest angle adjustment
Standard feature
💾 Memory
Not Available

🎛️ Advanced Adjustments

📐 Seat cushion angle adjustment
Not Available
🎚️ Height adjustable headrest
Standard feature
📏 Length adjustable headrest
Not Available
🦵 Adjustable thigh support
Not Available
🔄 Backrest side bolster adjustment
Not Available
🔁 Seat cushion side bolster adjustment
Not Available

💆 Comfort Features

🦶 Footrest passenger
Not Available
🔧 Leg support passenger
Not Available
⚡ Electric lumbar adjustment
Not Available
🌬️ Seat ventilation
Not Available
💆 Massage function
Not Available

Driver Assistance

Advanced safety and driving assistance features

Lane keeping
Yes, standard equipment
Lane departure warning
Yes, standard equipment
Drowsiness Alert
Yes, optional equipment
Reversing camera
Yes, standard equipment
360 camera
Yes, standard equipment

Sensors & Cameras

Vehicle sensors and camera systems

Ultrasonic sensors
On bumper front ((Optional))
On bumper front ((Optional))
On bumper front left corner ((Optional))
On bumper front right corner ((Optional))
On bumper front left side ((Optional))
On bumper front right side ((Optional))
On bumper rear left side ((Optional))
On bumper rear right side ((Optional))
On bumper rear left corner
On bumper rear right corner
On bumper rear
On bumper rear
Cameras
Top center windshield
Left front side
Right front side
Front ((Optional))
On left wing mirror ((Optional))
On right wing mirror ((Optional))
Rear center ((Optional))
Radar sensors
Front ((Optional))
Left front corner ((Optional))
Right front corner ((Optional))
Left rear corner ((Optional))
Right rear corner ((Optional))
Lidar sensors
Center roof over windshield ((Optional))

UI and controls

User interface and control specifications

Interface Controls

Head-up display
HUD
Not available
Voice control
Voice
Yes, standard equipment
Gesture control
Gesture
Not available
Available screen layouts
Layouts
1

Smartphone Integration

Infotainment

🎵 Audio System

🔊 Number of speakers
12
⚡ Total effect
840 W

Exterior

🎨 Paint colors

Glazed green
Pearly White
Sky canopy gray
Metallic Black
Glacier Blue
Tundra Gray
