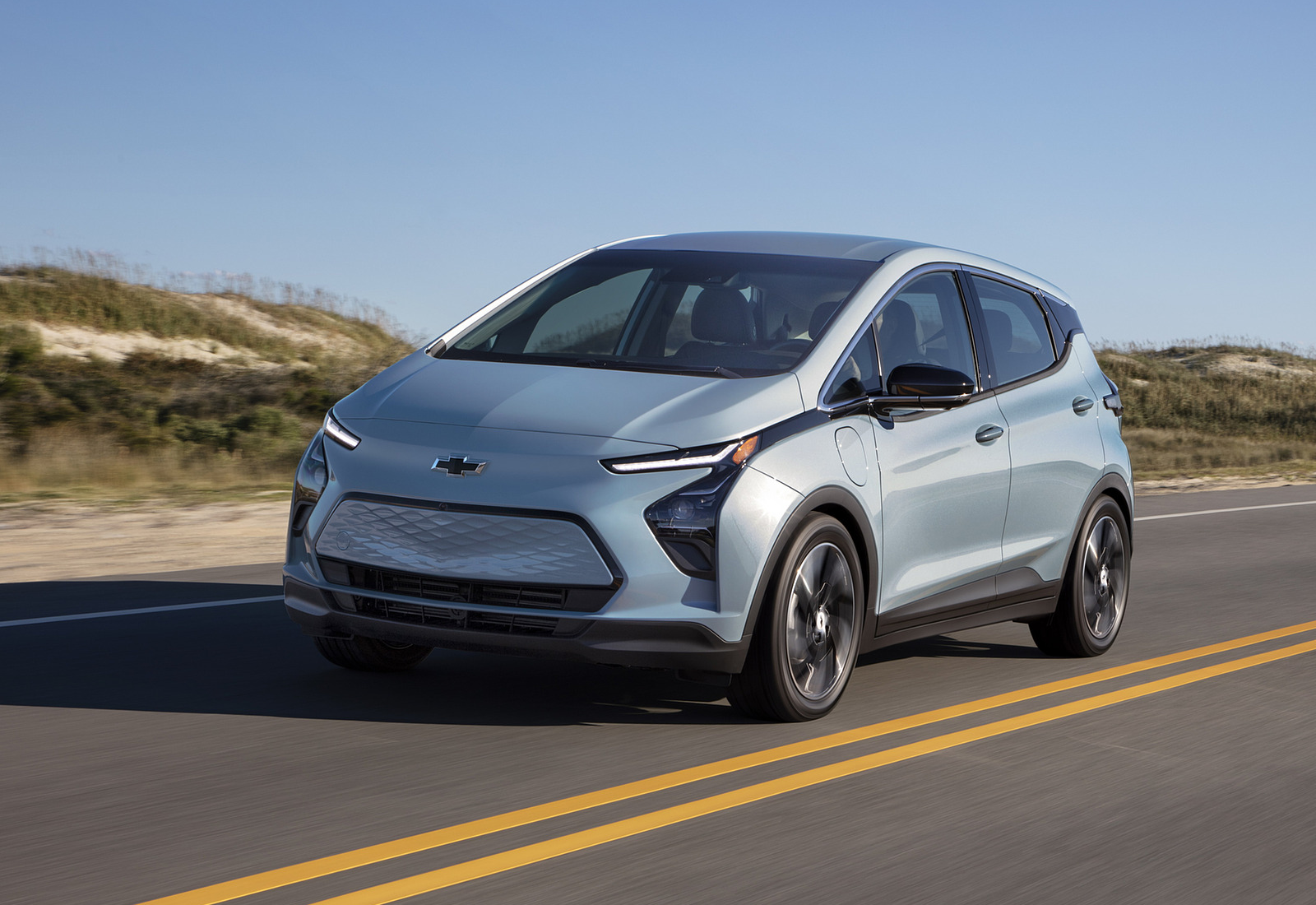

Chevrolet Bolt EV 66 kWh specifications
2022, 2023
Last modified: Jul 18, 2026
Specifications complete
EVKX.net provides full specifications for Chevrolet Bolt EV 66 kWh.
EVKX.net seeks to have the most complete specifications for Chevrolet Bolt EV 66 kWh. Click on image above for full article, visit the image gallery for high-res images of Chevrolet Bolt EV 66 kWh, visit the chargeinfo for Chevrolet Bolt EV 66 kWh with chargecurve, visit extended range info for real world ranges.
Hatchback · FWD · 5 seats · 400V architecture
Range
EPA is the US test cycle for rating range and efficiency. It is typically more conservative than WLTP.
417 km
EPA
Battery
Usable (net) capacity is the energy actually available for driving. It is lower than the gross capacity, which keeps a protective buffer in reserve.
65 kWh
usable
DC charging
The highest DC fast-charging power the car can accept, in kW. It is only reached over part of the charging curve, not the whole session.
55 kW
max
0–100 km/h
6.8 s
Power
150 kW
204 hp
Efficiency
Energy used per 100 km. Lower is better — it means more range from the same battery.
15.6
kWh/100 km
Drivetrain
FWD
Chevrolet Bolt EV 66 kWh
Performance & Drivetrain
Performance
Acceleration, top speed, and power specifications
|
Spec
|
Value
|
|---|---|
| Peak power | 150 kW (204 hp / 201 bhp) |
| Electrical torque output | 360 Nm (266 lb-ft) |
| Top speed | 150 kph (93 mph) |
| 0-100km/h (0-62 mph) | 6.8 s |
Power & Torque
Peak power
150 kW (204 hp / 201 bhp)
Electrical torque output
360 Nm (266 lb-ft)
Speed & Acceleration
Top speed
150 kph (93 mph)
0-100km/h (0-62 mph)
6.8 s
Suspension
Spec
Value
Not available
Not available
Not available
Not available
Not available
136 mm (5.4")
136 mm (5.4")
Monotube
Monotube
Coil
Coil
MacPhersonStrut
Suspension type rear
TorsionBeam
Adaptive Features
Not available
Not available
Not available
Height Adjustment
Not available
Not available
Ground Clearance
136 mm (5.4")
136 mm (5.4")
Component Types
Monotube
Monotube
Coil
Coil
MacPhersonStrut
Suspension type rear
TorsionBeam
Battery, Range & Charging
Battery & Charging
Battery specifications and charging capabilities
|
Spec
|
Value
|
|---|---|
|
66
kWh
|
|
|
65
kWh
|
|
|
55
kW
|
|
|
Number of modules
|
10 |
| 96s3p | |
|
355
V
|
|
|
Cathode Materials
|
NMC |
66
kWh
65
kWh
55
kW
Number of modules
10
96s3p
355
V
Cathode Materials
NMC
Chargeport
Charging port specifications by region
|
Spec
|
Value
|
|---|---|
|
Chargeport placement
|
Left front side |
Chargeport placement
Left front side
Range & Consumption
Range estimates and energy consumption data
Below you see the official range info. Visit our extended range info for detailed real world range examples. Visit our Range Guide to see what affects range and how the official range values are measured.
|
Spec
|
Value
|
|---|---|
|
EPA range
Learn more
|
259
mi
|
|
EPA consumption
Learn more
|
4.0
mi/kWh
|
Dimensions, Cargo & Exterior
Dimensions
Spec
Value
Length
4145 mm (163.2")
Height
1594 mm (62.8")
Width excluding mirrors
1765 mm (69.5")
Width including mirrors
2003 mm (78.9")
Wheelbase
2601 mm (102.4")
Track width front
1511 mm (59.5")
Track width rear
1511 mm (59.5")
Drag coefficient
0.31
Frontal area
2.4 m²
Approach Angle
15.2
Departure Angle
21
Turning circle
10.8 meter (425.2")
Basic Dimensions
Length
4145 mm (163.2")
Height
1594 mm (62.8")
Width excluding mirrors
1765 mm (69.5")
Width including mirrors
2003 mm (78.9")
Wheelbase & Track
Wheelbase
2601 mm (102.4")
Track width front
1511 mm (59.5")
Track width rear
1511 mm (59.5")
Aerodynamics
Drag coefficient
0.31
Frontal area
2.4 m²
Clearance & Turning
Approach Angle
15.2
Departure Angle
21
Turning circle
10.8 meter (425.2")
Cargo Capacity and Towing Ability
Weight, cargo capacity and towing specifications
|
Spec
|
Value
|
|---|---|
|
1625 kg (3583 lbs)
|
|
|
2056 kg (4533 lbs)
|
|
|
431 kg (950 lbs)
|
|
|
Not available
|
|
|
478 liter (17 cu-ft)
|
|
|
1603 liter (57 cu-ft)
|
|
|
Not available
|
|
|
Not available
|
|
|
Not available
|
|
|
Maximum tow ball weight
|
Not available
|
Weight Specifications
1625 kg (3583 lbs)
2056 kg (4533 lbs)
431 kg (950 lbs)
Not available
Cargo Capacity
478 liter (17 cu-ft)
1603 liter (57 cu-ft)
Not available
Towing Capacity
Not available
Not available
Maximum tow ball weight
Not available
Exterior
Spec
Value
Paint colors
Summit White
Mosaic Black Metallic
Silver Ice Metallic
Cherry Red Tintcoat
Bright Blue Metallic
Ivy Metallic Green
Nitro Yellow Metallic
Paint colors
Summit White
Mosaic Black Metallic
Silver Ice Metallic
Cherry Red Tintcoat
Bright Blue Metallic
Ivy Metallic Green
Nitro Yellow Metallic
Interior, Controls & Infotainment
Interior
Seating Configuration
This model is available with a seat configuration with five seats.
Front seats
Spec
Value
Driver and Passenger Seat
Seat depth adjustment
Standard feature
Seat height adjustment
Unknown
Backrest angle adjustment
Standard feature
Seat cushion angle adjustment
Not Available
Memory
Not Available
Standard feature
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Seat Category
Driver and Passenger Seat
Basic Adjustments
Seat depth adjustment
Standard feature
Seat height adjustment
Unknown
Backrest angle adjustment
Standard feature
Memory
Not Available
Advanced Adjustments
Seat cushion angle adjustment
Not Available
Height adjustable headrest
Standard feature
Length adjustable headrest
Not Available
Adjustable thigh support
Not Available
Backrest side bolster adjustment
Not Available
Seat cushion side bolster adjustment
Not Available
Comfort Features
Footrest passenger
Not Available
Leg support passenger
Not Available
Electric lumbar adjustment
Not Available
Seat ventilation
Not Available
Massage function
Not Available
Second row seats
Spec
Value
Three-seat bench
Seat depth adjustment
Not Available
Seat height adjustment
Not Available
Backrest angle adjustment
Not Available
Seat cushion angle adjustment
Not Available
Memory
Not Available
Standard feature
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Seat Category
Seat type
Three-seat bench
Basic Adjustments
Seat depth adjustment
Not Available
Seat height adjustment
Not Available
Backrest angle adjustment
Not Available
Memory
Not Available
Advanced Adjustments
Seat cushion angle adjustment
Not Available
Height adjustable headrest
Standard feature
Length adjustable headrest
Not Available
Adjustable thigh support
Not Available
Backrest side bolster adjustment
Not Available
Seat cushion side bolster adjustment
Not Available
Comfort Features
Footrest passenger
Not Available
Leg support passenger
Not Available
Electric lumbar adjustment
Not Available
Seat ventilation
Not Available
Massage function
Not Available
Center consoles
First row center console
Console design
Floating console
UI and controls
User interface and control specifications
|
Spec
|
Value
|
|---|---|
| Head-up display | Not available |
| Voice control | Yes, standard equipment |
| Gesture control | Not available |
| Android Auto support | Yes, standard equipment |
| Apple CarPlay support | Yes, standard equipment |
| In-car navigation | Not available |
| Available screen layouts | 1 |
Interface Controls
Head-up display
Not available
Voice control
Yes, standard equipment
Gesture control
Not available
Available screen layouts
1
Smartphone Integration
Yes, standard equipment
Yes, standard equipment
Not available
Infotainment
Number of available sound systems
Standard 6-speaker
Spec
Value
Number of speakers
6
Total effect
W
Audio System
Number of speakers
6
Total effect
W
Bose Premium 7-speaker
Spec
Value
Number of speakers
7
Total effect
W
Audio System
Number of speakers
7
Total effect
W
Driver Assistance
Driver Assistance
Advanced safety and driving assistance features
|
Spec
|
Value
|
|---|---|
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, optional equipment | |
| Yes, standard equipment | |
|
Hill descent assist
|
Not available |
|
Hill start assist
|
Yes, standard equipment |
| Yes, standard equipment | |
| Yes, standard equipment | |
|
Traction control
|
Yes, standard equipment |
|
Left turn crash avoidance
|
Not available |
| Yes, standard equipment | |
| Yes, standard equipment | |
|
Temperature warning
|
Yes, standard equipment |
| Not available | |
| Not available | |
| Not available | |
| Not available | |
| Not available |
Yes, standard equipment
Yes, standard equipment
Yes, standard equipment
Yes, standard equipment
Yes, optional equipment
Sensors & Cameras
Vehicle sensors and camera systems
|
Spec
|
Value
|
|---|---|
|
|
|
|
|
|
|
ADAS processors
|
On bumper rear
On bumper rear
Top center windshield
Rear center
Front
((Optional))
On left wing mirror
((Optional))
On right wing mirror
((Optional))
Front
Left rear corner
Right rear corner
