Cadillac OPTIQ AWD
Cadillac OPTIQ AWD is an all-electric SUV with a EPA range of up to 483 km (300 miles). EVKX.net has all the details.
We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
- Performance
- Battery, Range, and Charging
- Drivetrain (suspension, brakes, steering)
- Exterior (paint colors, wheels ++)
- Interior (seats++)
- User interface and control
- Infotainment
- Lights
- Advanced driver-assistance systems
- Cargo Capacity and Towing Ability
Performance
The Cadillac OPTIQ AWD delivers a solid performance with a maximum power of 224 kW (305 hp / 300 bhp) and a total torque of 480 Nm (354 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 5.9 seconds and reaches a top speed of 210 km/h (131 mph), making it competitive within its class.
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 89.0 kWh and a net usable capacity of 85.0 kWh, providing a 4.0 kWh buffer (4.5%) for battery protection. With a nominal voltage of 330 volts, the system is classified as a 400-volt battery system, aligning with industry standards.
According to the EPA (Environmental Protection Agency) standard, the vehicle has an range of 300 miles (483 km) with an energy consumption rate of 3.5 miles per kWh. For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 150 kW. Charging from 0% to 100% takes approximately 72 minutes, while a more typical scenario from 10% to 80% takes 38 minutes with an average charging speed of 95 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 6% to 58%. This results in an effective charging speed, including time lost, of 99 kW, with each charging session taking about 27 minutes and 50 seconds.
In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 25 kWh/100 km, the trip would take about 10 hours and 1 minutes, requiring four charging stops from 6% to 55%, totaling 101 minutes of charging time.
Onboard Charger
The standard onboard charger supports up to 11.5 kW for Level 1 and Level 2 AC charging, allowing a full charge from 0 to 100% in about 7 hours and 23 minutes using a home setup. An optional 19.2 kW onboard charger reduces the full charge time to approximately 4 hours and 25 minutes.
Charge Port
The location of the charge port is on the left front side. This location makes it easy to charge stations where you park side into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.
Drivetrain
The Cadillac OPTIQ AWD features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors at the front axle and Induction Motors at the rear axle.
Suspension
The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 178 mm.
Brakes
The Cadillac OPTIQ AWD is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 432 mm, while the rear discs are 432 mm.
Regenerative Braking
Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen. The system stops the car completely using friction brakes.

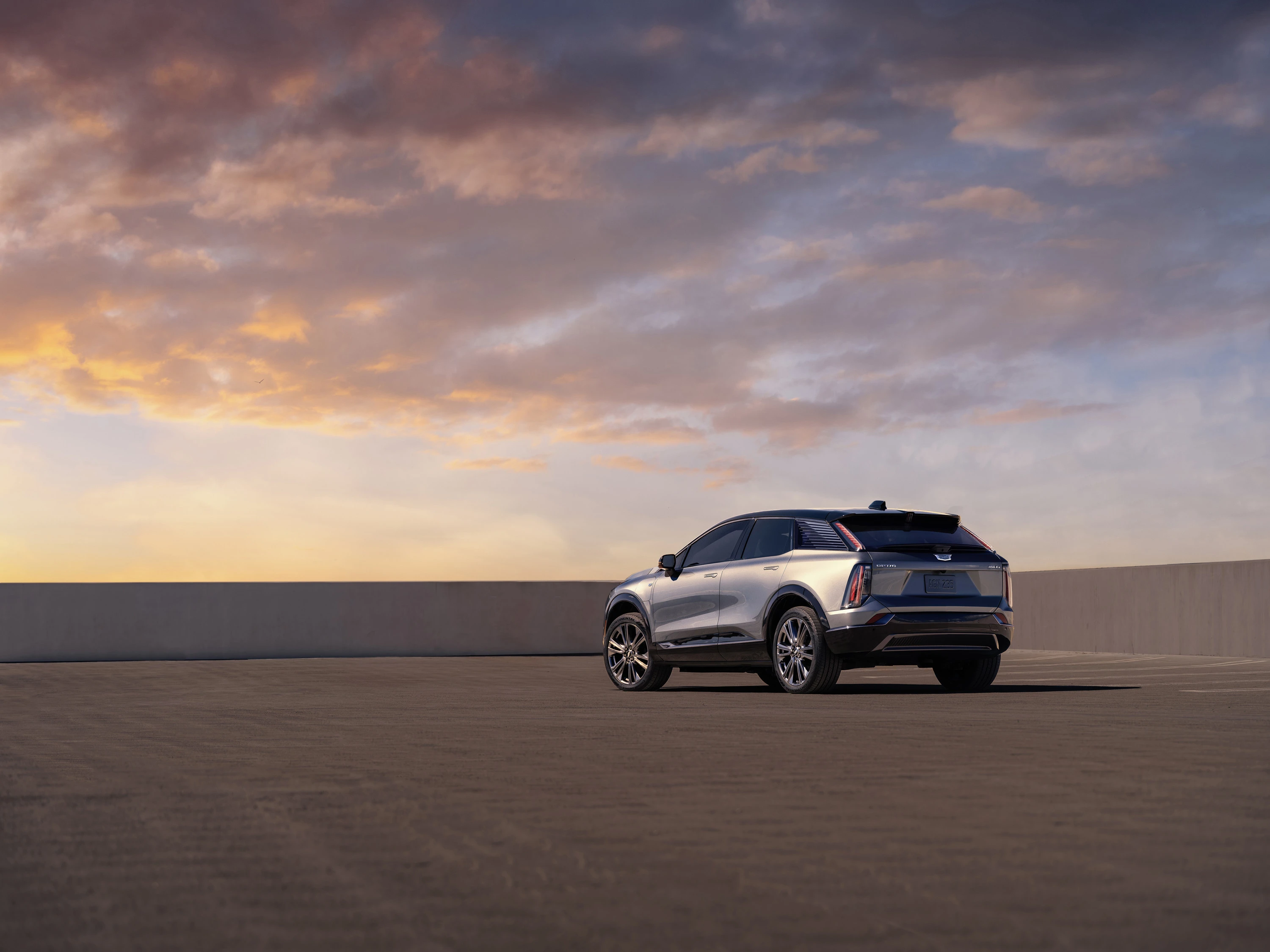

Exterior
The Cadillac OPTIQ AWD, with dimensions of 4820 mm in length, mm in width, and 1644 mm in height, falls into the Mid-size SUVs offer a blend of space, comfort, performance, and versatility, making them suitable for a wide range of drivers with diverse needs. The Cadillac OPTIQ AWD is available in a total of 8 paint colors, including several striking metallic options.
The Cadillac OPTIQ AWD offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:
Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.
The car has four regular doors and a liftgate. The tailgate is electrically powered.
There are two different roof options to select from. The standard roof has a large panoramic roof extending from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun. As an option, you can order this model with a panoramic roof that can be opened. The glass has two panels. One over the first and the second rows, and occupants can open the front part. It has an electric curtain that occupants can use to protect against the sun.
Interior
Seats
The Cadillac OPTIQ AWD accommodates five passengers with two front seats and a three-seat bench in the rear.

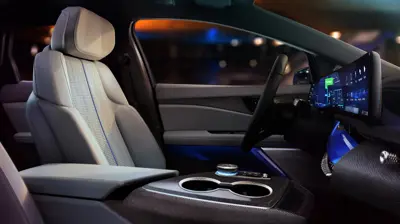

First Row Seats
The Cadillac OPTIQ AWD offers a single type of front seat.
The following functionalities are available on the **** seat:
- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Height adjustment (electrically adjustable)
- Seat cushion angle adjustment (electrically adjustable)
- Heating
- Adjustable lumbar support (electrically adjustable)
- Ventilation
- Massage
Available in:

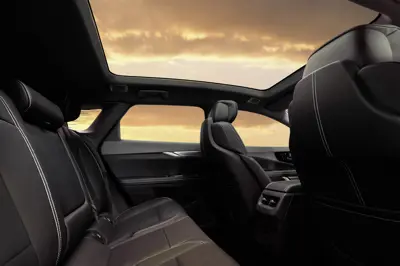

Second Row Seat
The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:
- Recline adjustment (manually adjustable)
Climate System
Two climate system options are available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
- 3-zone climate system: Supports different temperatures in three zones for the driver, passenger, and backseat.
A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.
Comfort Features
The Cadillac OPTIQ AWD includes several features to enhance comfort and convenience:
User Interface and Control

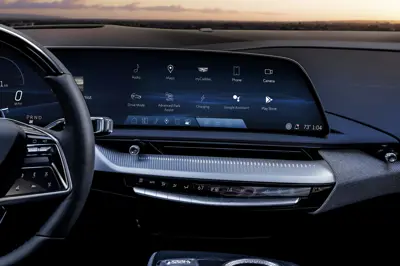

The Cadillac OPTIQ AWD has a single screen for the driver. The dashboard’s center has a single infotainment screen that serves as the primary display for both vehicle information and infotainment functions.
Key screen details:
- The touch screen behind the steering wheel accross the the center of the dash is 33.0 inches large
The model does not include a head-up display.
Steering Wheel
The Cadillac OPTIQ AWD is equipped with a single type of steering wheel:
- Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.
Infotainment
Navigation System
With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.
App Store
The infotainment system includes an App Store where you can download third-party apps to run natively on the car’s screen without needing a connected phone. Available apps vary by market but include popular options such as:
- Spotify: Stream millions of songs, playlists, and podcasts directly from your car’s infotainment system, providing endless entertainment options for your drive.
- Waze: Get real-time traffic updates, navigation, and road information to help you reach your destination quickly and safely.
Phone Mirroring
The Cadillac OPTIQ AWD supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
The Cadillac OPTIQ AWD comes equipped with one sound system option:
- AKG sound system: Features 19 speakers.
Additionally, the model includes 5 USB-C connections as standard.
Lights
Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
The taillights use LED technology, ensuring both high visibility and energy efficiency.
Advanced Driver Assistance Systems
The Cadillac OPTIQ AWD features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.
Safety Systems
Lane-Keeping Assist (LKA): Standard on the Cadillac OPTIQ AWD, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Front Cross Traffic Assist (FCTA) : Optional on the Cadillac OPTIQ AWD, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.
Rear Cross Traffic Alert (RCTA): Standard on the Cadillac OPTIQ AWD, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Automatic Emergency Braking (AEB): Standard on the Cadillac OPTIQ AWD, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Blind-spot Monitoring (BSM) : Standard on the Cadillac OPTIQ AWD, this side assist system helps to detect traffic in blind spots.
Driving Automation
With the standard level 2 system, you get the following driving automation features.
- Adaptive Cruise Control (ACC)
- Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
Security and Access Technologies
The Cadillac OPTIQ AWD is equipped with advanced security features to protect you and your vehicle. These include:
- Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 793 liters (28.0 CU FT). With the rear seat folded down, this expands to 1723 liters (60.8 CU FT).
The vehicle’s maximum weight is 2900 kg (6393 lbs), with a base weight of 2355 kg (5192 lbs). This allows for a maximum load of 545 kg (1202 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1588 kg (3501 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
