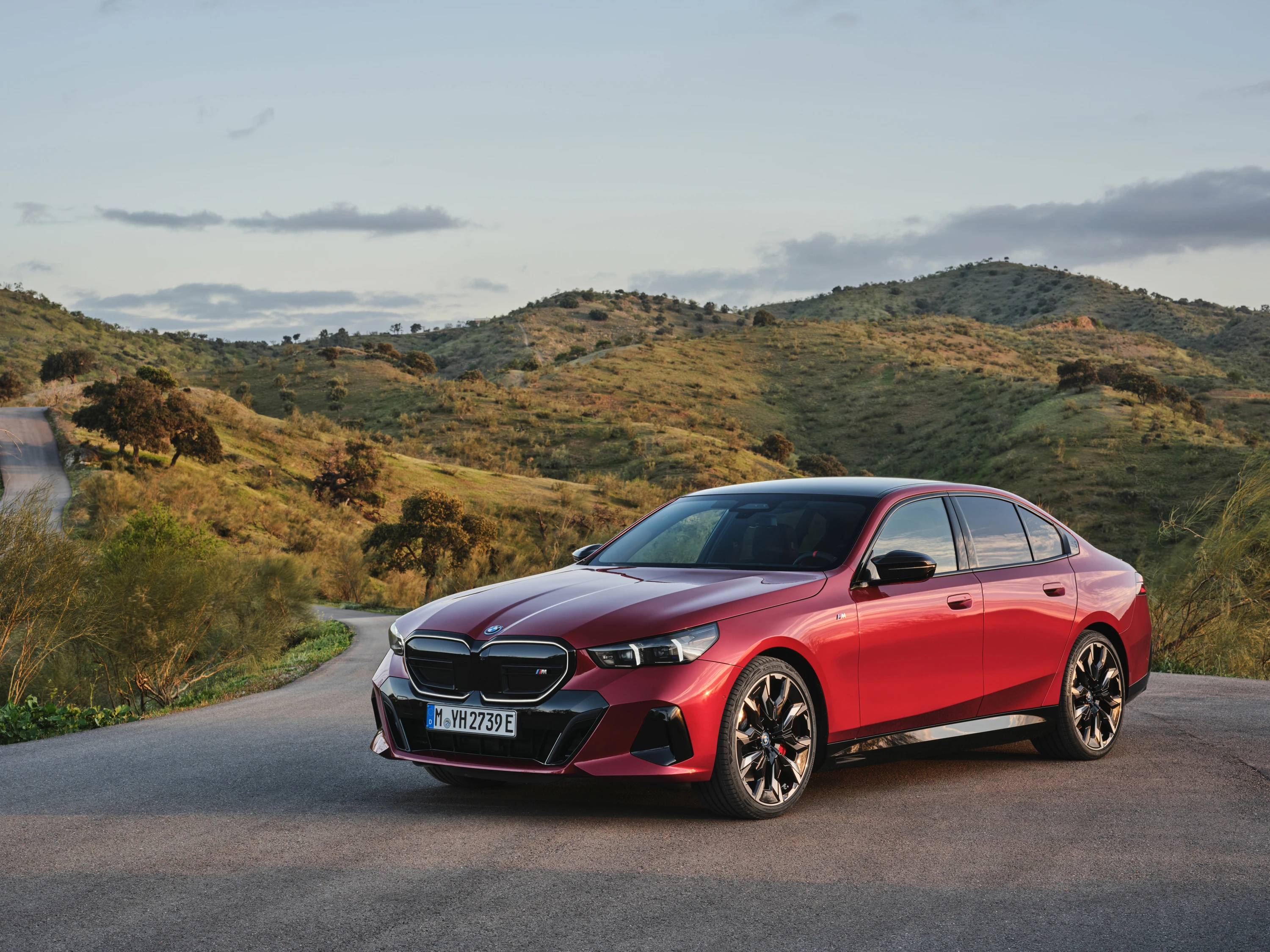

BMW i5 M60 xDrive

BMW i5 M60 xDrive is an all-electric premium sedan with a WLTP range of up to 515 km (320 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The BMW i5 M60 xDrive packs an impressive punch with a maximum power of 442 kW (601 hp / 593 bhp) and a commanding total torque of 795 Nm (587 lb-ft). This high-performance machine can sprint from 0 to 100 km/h (0 to 62 mph) in just 3.8 seconds, and it reaches a top speed of 230 km/h (143 mph), making it a standout in its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 84.4 kWh and a net usable capacity of 81.2 kWh, providing a 3.2 kWh buffer (3.8%) for battery protection. With a nominal voltage of 400 volts, the system is classified as a 400-volt battery system, aligning with industry standards. This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 515 to 456 km (320-283 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 15.8 kWh/100 km for the base model and 17.8 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 205 kW. Charging from 0% to 100% takes approximately 57 minutes, while a more typical scenario from 10% to 80% takes 33 minutes with an average charging speed of 104 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 46%. This results in an effective charging speed, including time lost, of 112 kW, with each charging session taking about 20 minutes and 38 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 22 kWh/100 km, the trip would take approximately 9 hours and 35 minutes. This journey would require four charging stops from 2% to 45%, with a total charging time of 75 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 7 hours and 22 minutes using a home charging setup.

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The BMW i5 M60 xDrive features an all-wheel drive system powered by two motors, one on each axle. The motors used are Wound-Rotor Synchronous Motors.

Suspension

The Adaptive M Suspension suspension has adaptive damping on the front and rear axle and air suspension on the rear axle that automatically keeps the car leveled depending on cargo weight. The ground clearance with this suspension is 136 mm.

Steering

Dynamic steering is a standard on the BMW i5 M60 xDrive, varying the steering ratio based on driving speed for enhanced control and comfort. In addition, rear-wheel steering is available as an optional feature. Rear wheel steering reduces the turning circle when going slow.

Brakes

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.

The maximum regenerative power is 116 kW.

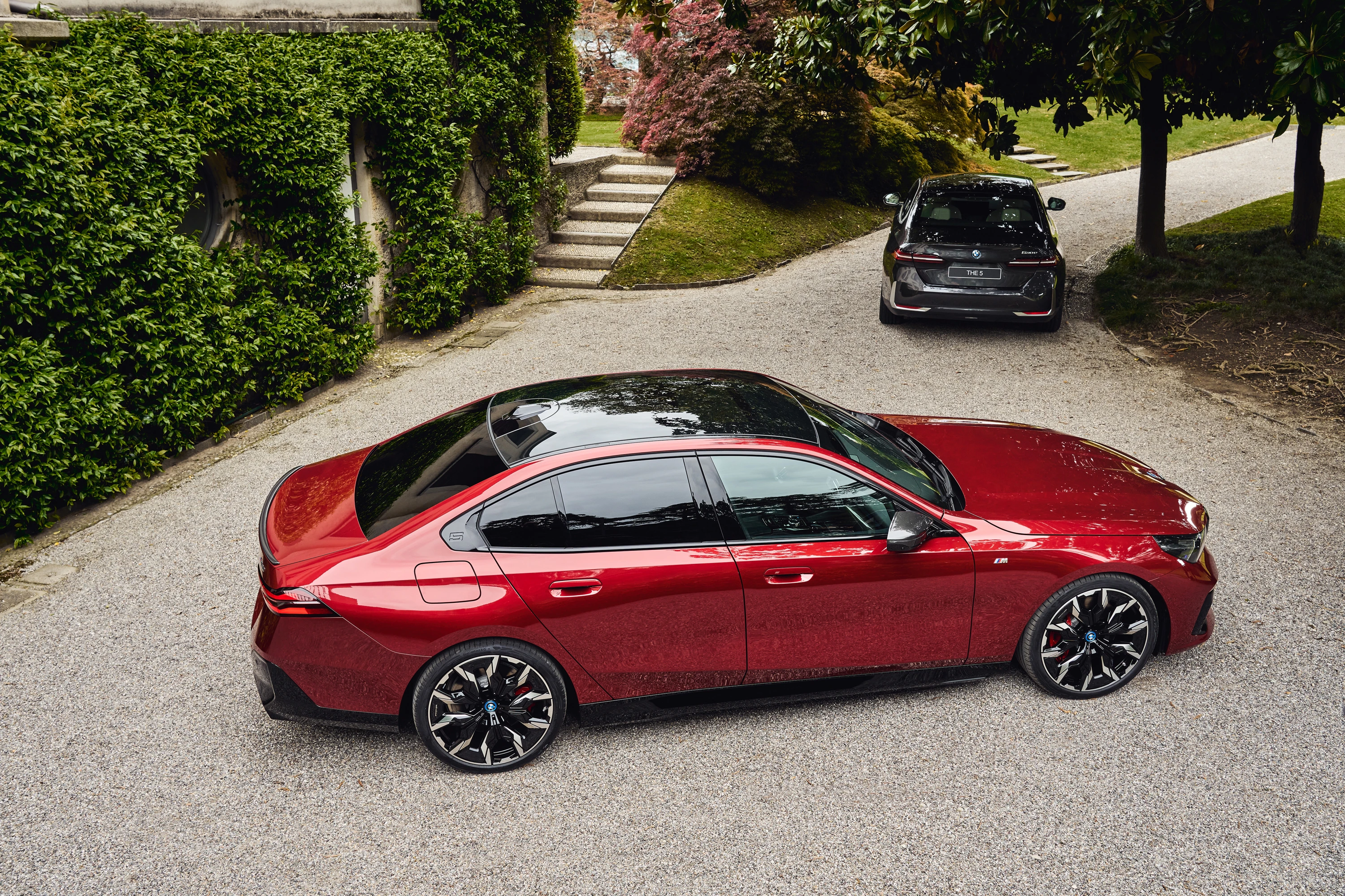

Exterior

The BMW i5 M60 xDrive, with dimensions of 5060 mm in length, 1900 mm in width, and 1505 mm in height, falls into F-segment cars, also known as luxury or full-size luxury cars, represent the pinnacle of automotive luxury, performance, and technology. They are typically large sedans or limousines and are designed to offer the utmost in comfort, prestige, and advanced features. The BMW i5 M60 xDrive is available in a total of 12 paint colors, including several striking metallic options.

The BMW i5 M60 xDrive offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

• 245/50 tires on 19" rims
• 255/45 tires on 20" rims front and 285/40 tires on 20" rims rear
• 255/40 tires on 21" rims front and 285/35 tires on 21" rims rear

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a boot lid for the trunk. Soft close is an optional function for the side doors.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a large panoramic roof extending over most of the areas from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

Seats

The BMW i5 M60 xDrive accommodates five passengers with two front seats and a three-seat bench in the rear.

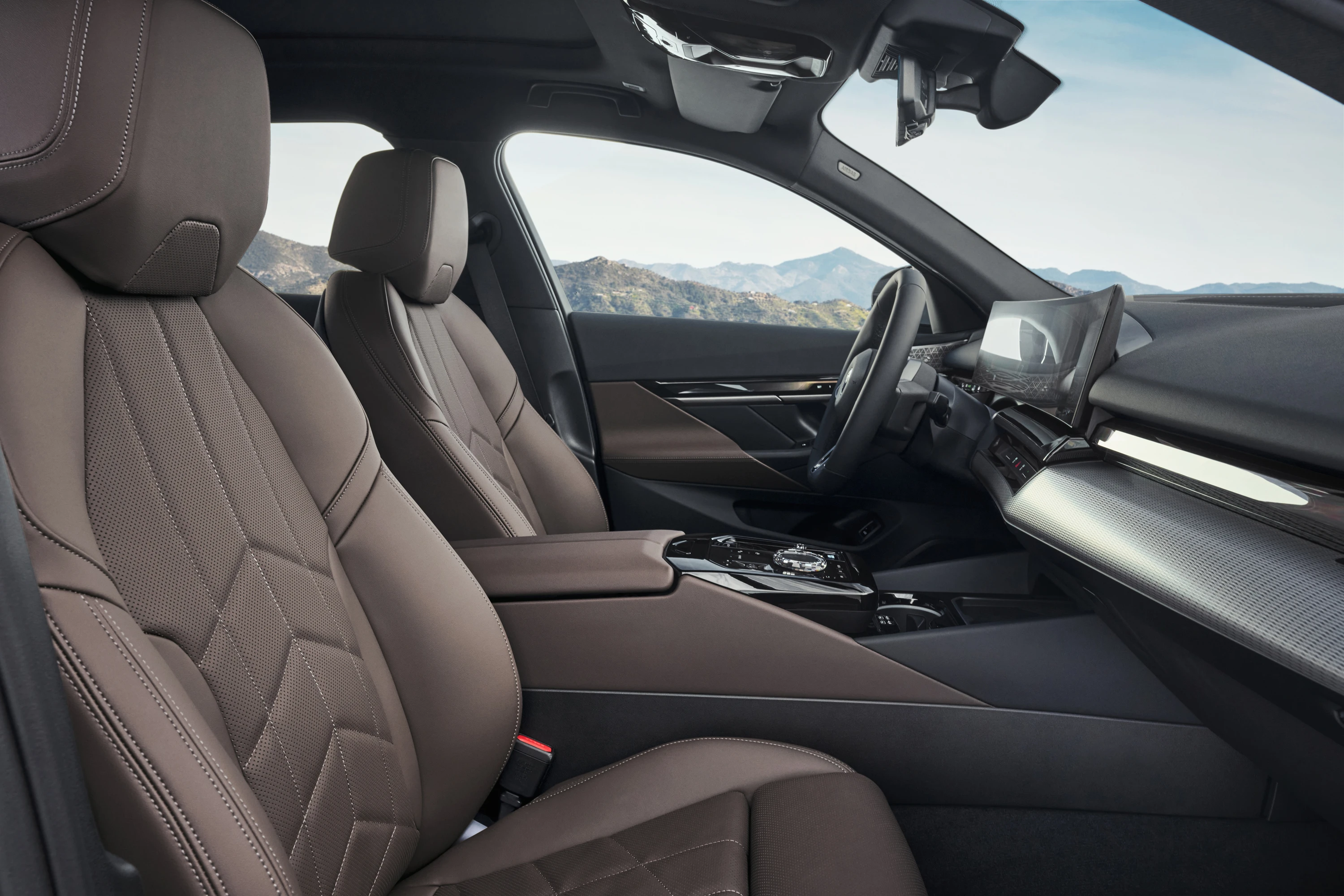

First Row Seats

The front row offers two seat types to cater to various comfort and style preferences:

The following functionalities are available on the Sport seat:

• Fore-and-aft adjustment (manually adjustable, electrically adjustable as an option)
• Recline adjustment (manually adjustable, electrically adjustable as an option)
• Height adjustable headrest
• Heating
• Memory (optional)
• Adjustable lumbar support (electrically adjustable as an option)
• Backrest side bolsters adjustment (optional)
• Ventilation (optional)

The following functionalities are available on the Comfort seats seat:

• Fore-and-aft adjustment (electrically adjustable)
• Height adjustable headrest
• Heating
• Memory (optional)
• Adjustable lumbar support (electrically adjustable as an option)
• Backrest side bolsters adjustment

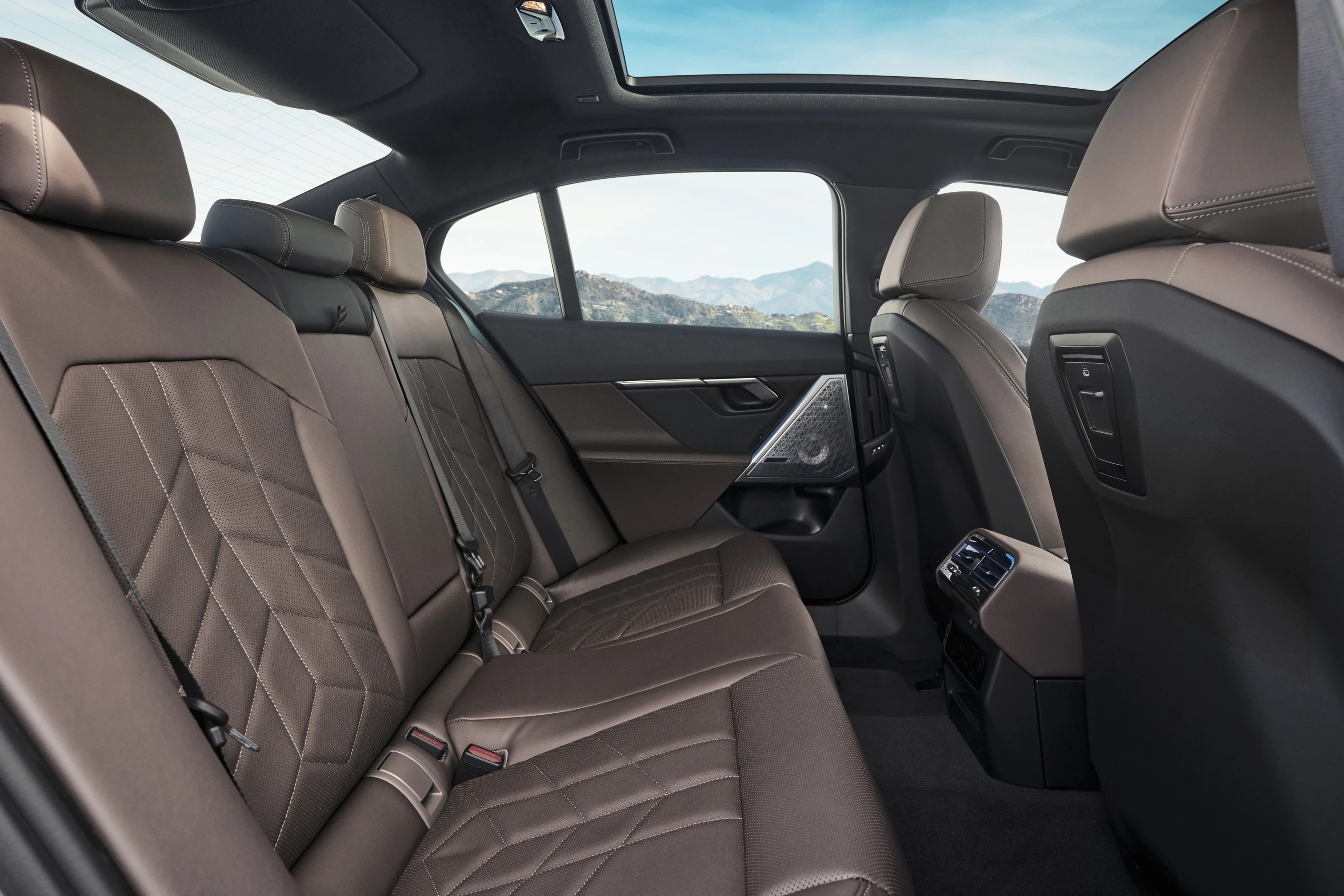

Second Row Seat

The second row features a standard three-seat bench with a 40:20:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Climate System

Two climate system options are available:

• 2-zone climate system: Supports different temperatures for the driver and passenger.
• 4-zone climate system: Supports different temperatures for the driver, passenger, and two separate passengers in the back seat

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The BMW i5 M60 xDrive includes several features to enhance comfort and convenience:

• Electrically Adjustable Steering Wheel
• Wireless Phone Charging

User Interface and Control

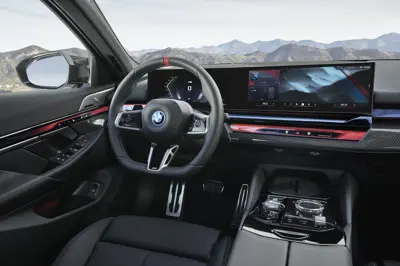

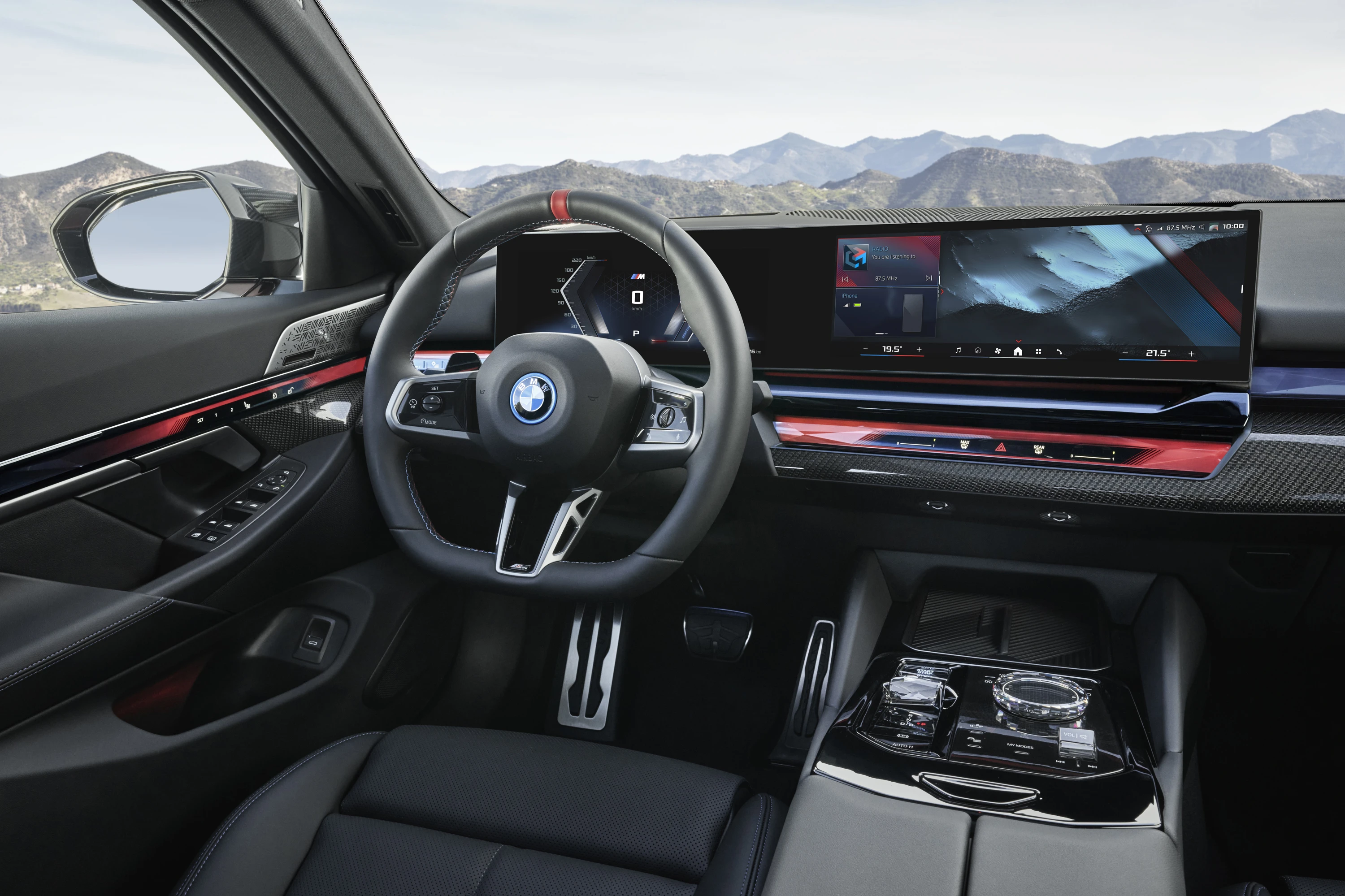

The BMW i5 M60 xDrive has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

• The screen behind the steering wheel on the left of the frame is 12.3 inches large
• The touch screen at the right part of the shared frame is 14.9 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

Steering Wheel

The BMW i5 M60 xDrive is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

A gesture control system that lets you control specific features using your hands.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The BMW i5 M60 xDrive supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

You can choose between three sound systems for the BMW i5 M60 xDrive:

• Hifi Sound system: Features six speakers and delivers a maximum output of 100 watts.
• Harman Kardon Surround Sound system: Features 12 speakers and delivers a maximum output of 205 watts.
• Bower & Wilkins Surround System: Features 18 speakers and delivers a maximum output of 655 watts.

Additionally, the model includes 6 USB-C connections as standard.

Lights

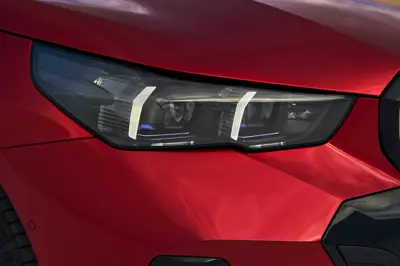

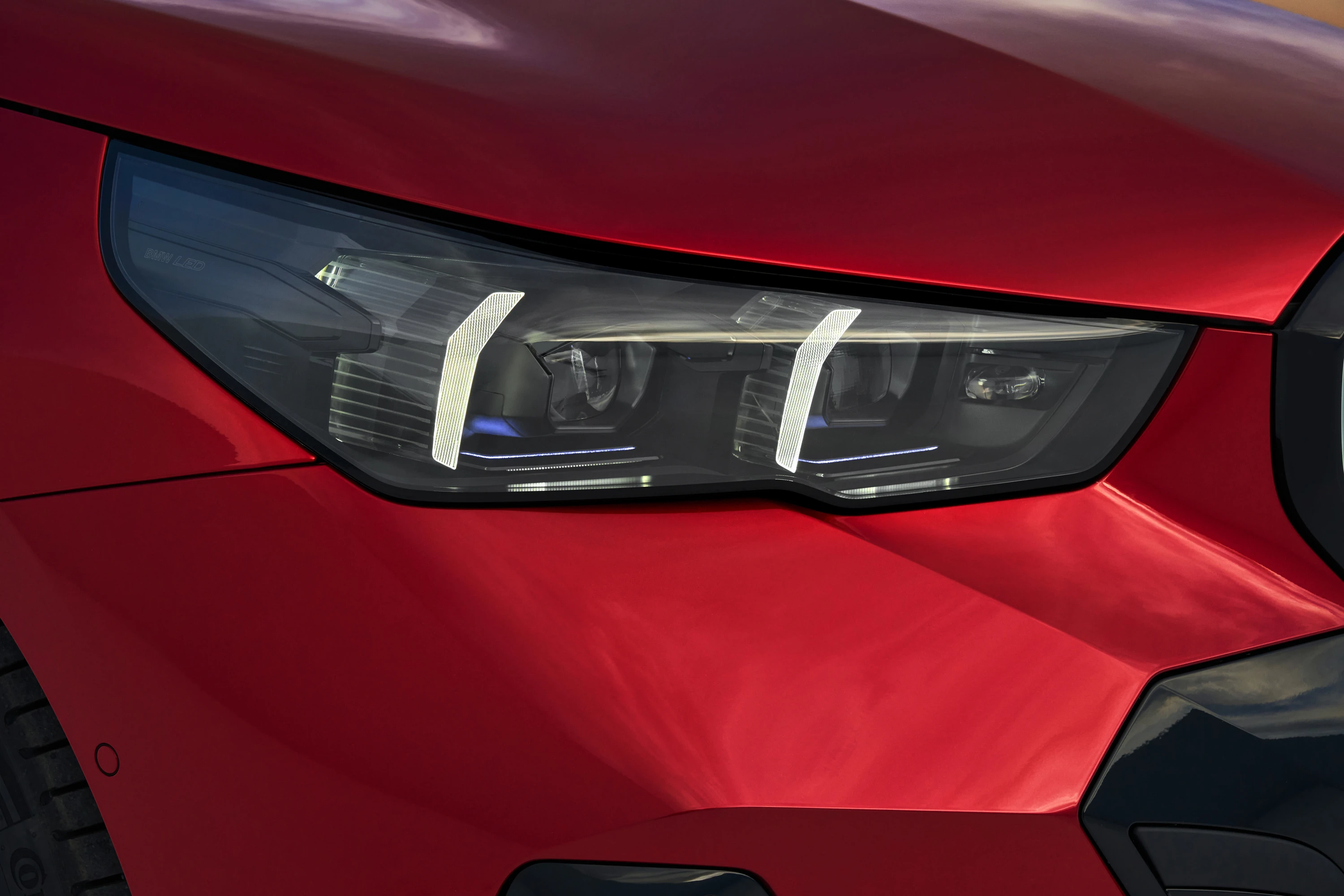

You can choose between two types of headlights for the BMW i5 M60 xDrive.

• Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
• LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The BMW i5 M60 xDrive features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the BMW i5 M60 xDrive, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the BMW i5 M60 xDrive, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the BMW i5 M60 xDrive, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Rear Cross Traffic Alert (RCTA): Optional on the BMW i5 M60 xDrive, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Optional on the BMW i5 M60 xDrive, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the BMW i5 M60 xDrive, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Optional on the BMW i5 M60 xDrive, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Driving Automation

The BMW i5 M60 xDrive offers driving automation at levels 1 or 2, depending on the equipment level.

With the Driving Assistant level 1 system, you get the following driving automation features.

• Cruise control.
• Automatic parking. (optional)

With the optional Driving Assistant Professional level 2 system, you get additional driving automation features to the ones listed above:

• Adaptive Cruise Control (ACC)
• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.

Security and Access Technologies

The BMW i5 M60 xDrive is equipped with advanced security features to protect you and your vehicle. These include:

• Keyless Entry and Start: With the standard keyless start and optional keyless entry, you can unlock and start the vehicle seamlessly without removing the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 490 liters (17.3 CU FT). With the rear seat folded down, this expands to 1290 liters (45.6 CU FT). On the roof, you can load up to 75 kg (165.3 lbs).

The vehicle’s maximum weight is 2895 kg (6382 lbs), with a base weight of 2305 kg (5082 lbs). This allows for a maximum load of 590 kg (1301 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 2000 kg (4409 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
