Last modified: Dec 7, 2024

BMW i4 eDrive35

BMW i4 eDrive35 is an all-electric premium sedan with a WLTP range of up to 490 km (305 miles). EVKX.net has all the details.

BMW i4 eDrive35

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The BMW i4 eDrive35 delivers a solid performance with a maximum power of 210 kW (286 hp / 282 bhp) and a total torque of 400 Nm (295 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 6 seconds and reaches a top speed of 190 km/h (118 mph), making it competitive within its class.

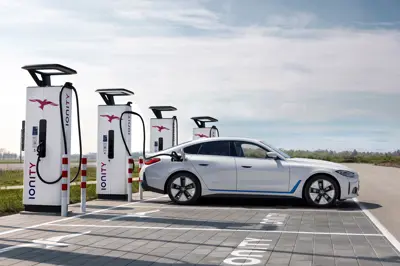

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 70.3 kWh and a net usable capacity of 67.1 kWh, providing a 3.2 kWh buffer (4.6%) for battery protection. With a nominal voltage of 399 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 490 to 406 km (305-252 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 13.7 kWh/100 km for the base model and 16.5 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 180 kW. Charging from 0% to 100% takes approximately 48 minutes, while a more typical scenario from 10% to 80% takes 25 minutes with an average charging speed of 114 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 3% to 51%. This results in an effective charging speed, including time lost, of 110 kW, with each charging session taking about 18 minutes and 32 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 18 kWh/100 km, the trip would take about 9 hours and 23 minutes, requiring four charging stops from 3% to 46%, totaling 63 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging, allowing a full charge from 0 to 100% in about 6 hours and 6 minutes using a home setup.

BMW i4 eDrive35

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The BMW i4 eDrive35 has a rear-wheel drive system supported by one motor on the rear axle. The motor used are Wound-Rotor Synchronous Motors.

Suspension

The Standard suspension has air suspension on the rear axle that automaticly keep the car leveled depending on cargo weight. The ground clearance with this suspension is 125 mm. The Adaptive M Suspension suspension has adaptive damping on the front and rear axle and air suspension on the rear axle that automatically keeps the car leveled depending on cargo weight. The ground clearance with this suspension is 125 mm.

Steering

Dynamic steering is a standard on the BMW i4 eDrive35, varying the steering ratio based on driving speed for enhanced control and comfort. In addition, rear-wheel steering is available as a standard feature. Rear wheel steering reduces the turning circle when going slow.

Brakes

The BMW i4 eDrive35 is equipped with cast-iron disc brakes on both the front and rear.

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.

The maximum regenerative power is 116 kW.

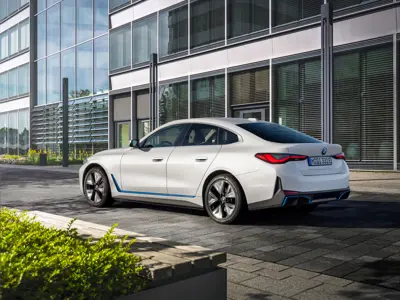

Exterior

The BMW i4 eDrive35, with dimensions of 4783 mm in length, 1852 mm in width, and 1448 mm in height, falls into D-segment cars, also known as mid-size or family cars, offer more space, comfort, and features than smaller segments, making them suitable for a variety of drivers. The BMW i4 eDrive35 is available in a total of 11 paint colors, including several striking metallic options.

The BMW i4 eDrive35 offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

  • 245/45 tires on 18" rims front and 255/45 tires on 18" rims rear
  • 245/40 tires on 19" rims front and 255/40 tires on 19" rims rear
  • 245/35 tires on 20" rims front and 255/35 tires on 20" rims rear

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a liftgate, which makes the trunk much more usable compared to a traditional bootlid, especially for a sedan. Soft close is an optional function for the side doors. The tailgate is electrically powered.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a sunroof. The glass extends over only the front row, and occupants can open it. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

BMW i4 eDrive35

Interior

Seats

The BMW i4 eDrive35 accommodates five passengers with two front seats and a three-seat bench in the rear.

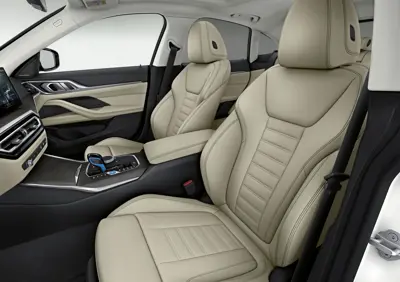

First Row Seats

The front row offers two seat types to cater to various comfort and style preferences:

The following functionalities are available on the standard seat:

Available in:

The following functionalities are available on the M Sport seat:

Available in:

BMW i4 eDrive35

Second Row Seat

The second row features a standard three-seat bench with a 40:20:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Climate System

Two climate system options are available:

  • 2-zone climate system: Supports different temperatures for the driver and passenger.
  • 4-zone climate system: Supports different temperatures for the driver, passenger, and two separate passengers in the back seat

Comfort Features

The BMW i4 eDrive35 includes several features to enhance comfort and convenience:

  • Electrically Adjustable Steering Wheel
  • Wireless Phone Charging

User Interface and Control

The BMW i4 eDrive35 has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

  • The screen behind the steering wheel on the left of the frame is 12.3 inches large
  • The touch screen at the right part of the shared frame is 14.9 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

Steering Wheel

The BMW i4 eDrive35 is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The BMW i4 eDrive35 supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

You can choose between two sound systems for the BMW i4 eDrive35:

  • Hifi Sound system: Features ten speakers and delivers a maximum output of 200 watts.
  • Harman Kardon Surround Sound system: Features 17 speakers and delivers a maximum output of 445 watts.

Additionally, the model includes 4 USB-C connections as standard.

Lights

You can choose between two types of headlights for the BMW i4 eDrive35.

  • Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
  • LED Matrix Headlights with Laser Technology: Also available as an option, these headlights combine the adaptive features of the LED Matrix system with laser technology for enhanced brightness and range, offering superior illumination and safety.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The BMW i4 eDrive35 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the BMW i4 eDrive35, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the BMW i4 eDrive35, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the BMW i4 eDrive35, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Rear Cross Traffic Alert (RCTA): Optional on the BMW i4 eDrive35, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Optional on the BMW i4 eDrive35, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the BMW i4 eDrive35, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Optional on the BMW i4 eDrive35, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Driving Automation

The BMW i4 eDrive35 offers driving automation at levels 1 or 2, depending on the equipment level.

With the Driving Assistant level 1 system, you get the following driving automation features.

With the optional Driving Assistant Professional level 2 system, you get additional driving automation features to the ones listed above:

Security and Access Technologies

The BMW i4 eDrive35 is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: With the standard keyless start and optional keyless entry, you can unlock and start the vehicle seamlessly without removing the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 470 liters (16.6 CU FT). With the rear seat folded down, this expands to 1290 liters (45.6 CU FT). On the roof, you can load up to 75 kg (165.3 lbs). Optional roof rails are available for easy mounting of a roof box or rack.

The vehicle’s maximum weight is 2545 kg (5611 lbs), with a base weight of 2000 kg (4409 lbs). This allows for a maximum load of 545 kg (1202 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1600 kg (3527 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
