Acura ZDX Type S

Acura ZDX Type S is an all-electric SUV with a EPA range of up to 463 km (288 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The Acura ZDX Type S delivers a solid performance with a maximum power of 373 kW (507 hp / 500 bhp) and a total torque of 737 Nm (544 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4.6 seconds and reaches a top speed of 210 km/h (131 mph), making it competitive within its class.

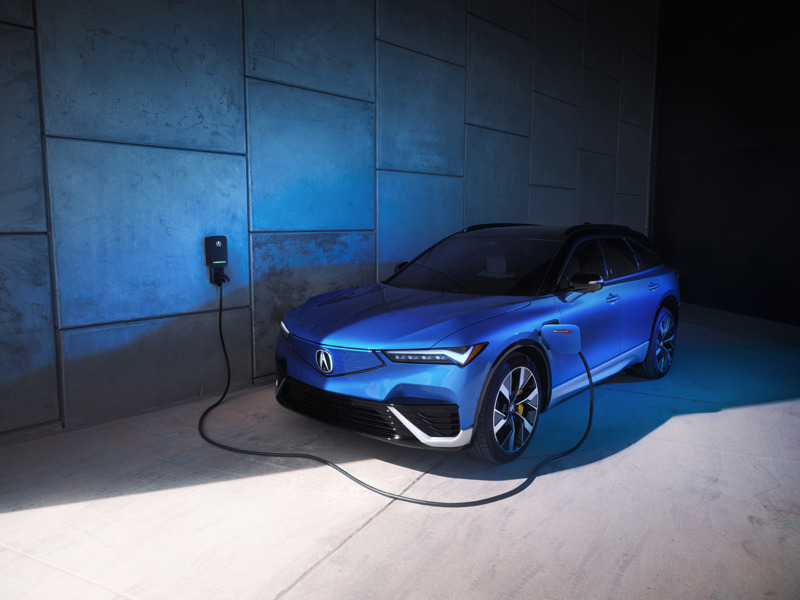

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 110.0 kWh and a net usable capacity of 102.0 kWh, providing a 8.0 kWh buffer (7.3%) for battery protection. With a nominal voltage of 400 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

According to the EPA (Environmental Protection Agency) standard, the vehicle has an range of 288 miles (463 km) with an energy consumption rate of 2.8 miles per kWh. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of kW. Charging from 0% to 100% takes approximately 180 minutes, while a more typical scenario from 10% to 80% takes 32 minutes with an average charging speed of 133 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 8% to 65%. This results in an effective charging speed, including time lost, of 118 kW, with each charging session taking about 30 minutes and 30 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 25 kWh/100 km, the trip would take approximately 9 hours and 36 minutes. This journey would require three charging stops from 8% to 57%, with a total charging time of 77 minutes.

Onboard Charger

The standard onboard charger supports up to 11.5 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 8 hours and 52 minutes using a home charging setup.

Charge Port

The location of the charge port is on the left front side. This location makes it easy to charge stations where you park side into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Acura ZDX Type S features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension and rear suspension is Multilink. It uses air suspension and hydraulic dampers.

Brakes

The Acura ZDX Type S is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 396 mm, while the rear discs are 343 mm.

Regenerative Braking

Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen. The system stops the car completely using friction brakes.

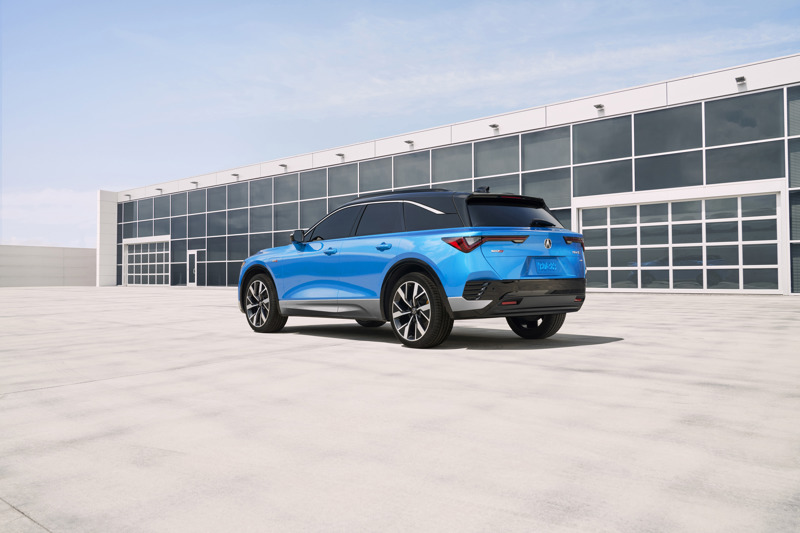

Exterior

The Acura ZDX Type S, with dimensions of 5022 mm in length, 1956 mm in width, and 1636 mm in height, falls into the Full-size SUVs offer the most space, power, and capability among SUV categories, making them suitable for a specific set of drivers with unique needs The Acura ZDX Type S is available in a total of 6 paint colors, all of which include metallic and pearlescent options.

You can select from multiple wheel designs, all available in the same size, on the Acura ZDX Type S, allowing you to personalize your vehicle to match your style and driving preferences. The available tire and wheel combinations include:

• 275/40 tires on 22" rims

The car has four regular doors and a liftgate. The tailgate is electrically powered.

There are two different roof options to select from. The standard roof has a large panoramic roof extending from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun. As an option, you can order this model with a panoramic roof that can be opened. The glass has two panels. One over the first and the second rows, and occupants can open the front part. It has an electric curtain that occupants can use to protect against the sun.

Interior

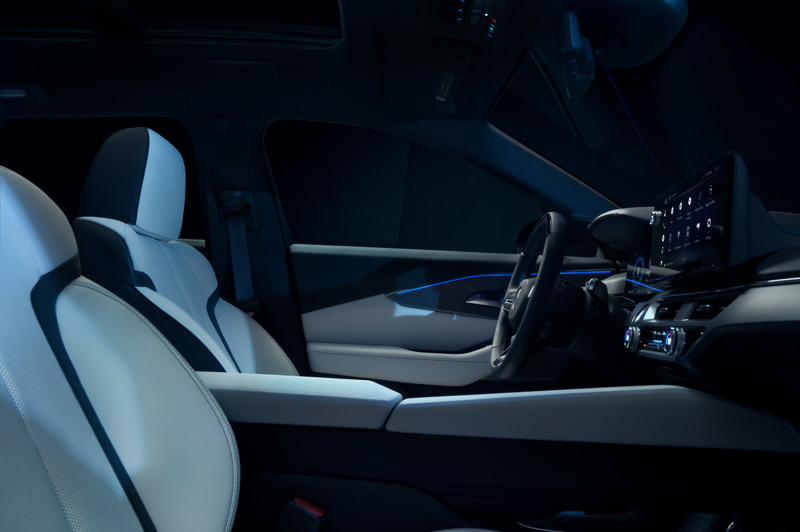

Seats

The Acura ZDX Type S accommodates five passengers with two front seats and a three-seat bench in the rear.

First Row Seats

The Acura ZDX Type S offers a single type of front seat.

The following functionalities are available on the **** seat:

• Fore-and-aft adjustment (electrically adjustable)
• Recline adjustment (electrically adjustable)
• Height adjustment (electrically adjustable)
• Seat cushion angle adjustment (electrically adjustable)
• Heating
• Memory
• Adjustable lumbar support (electrically adjustable)
• Ventilation
• Massage

Available in:

• Black leatherette upholstering
• Gray leatherette upholstering

Second Row Seat

The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

• Recline adjustment (manually adjustable)

Climate System

There is one climate system available:

• 3-zone climate system: Supports different temperatures in three zones for the driver, passenger, and backseat.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Acura ZDX Type S includes several features to enhance comfort and convenience:

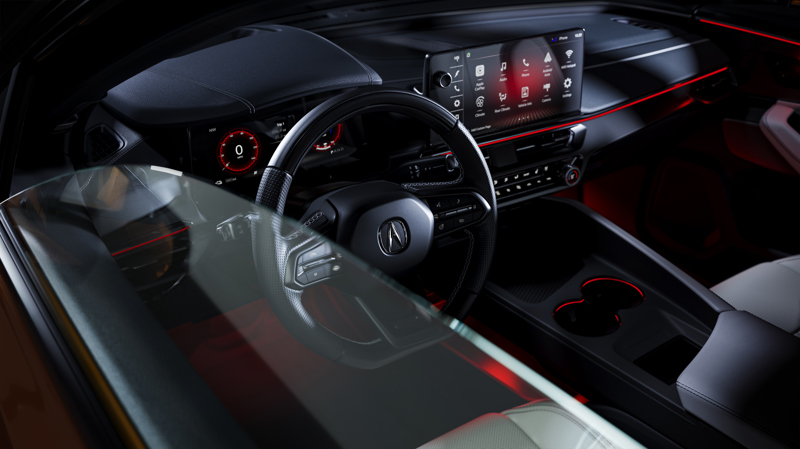

User Interface and Control

The Acura ZDX Type S has multiple integrated screens. Behind the steering wheel is a digital instrument cluster, and in the center console, there is one infotainment screen at the top of the center console.

Key screen details:

• The screen behind the steering wheel integrated into the dashboard is 11.0 inches large
• The touch screen at the top of the center console is 11.3 inches large

A head-up display is a standard system that projects speed and other important driver information onto the windshield.

Steering Wheel

The Acura ZDX Type S is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The Acura ZDX Type S supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The Acura ZDX Type S comes equipped with one sound system option:

• Bang & Olufsen sound system: Features 18 speakers and delivers a maximum output of watts.

Additionally, the model includes 5 USB-C connections as standard.

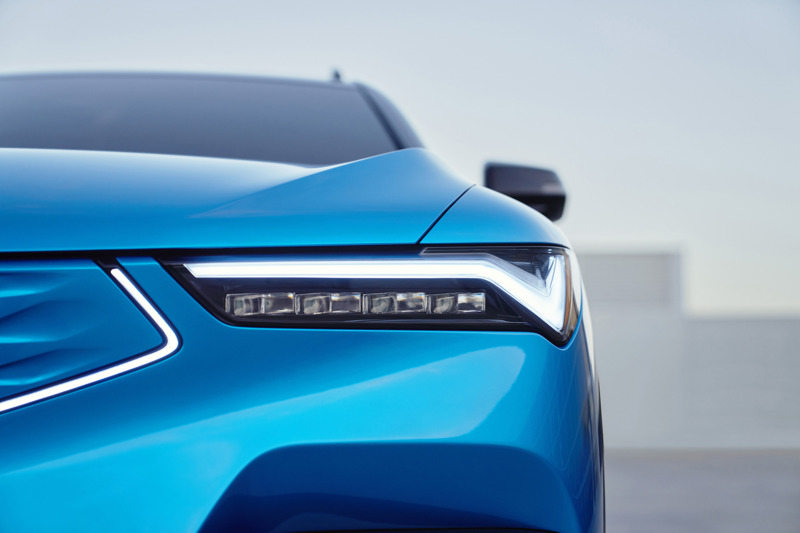

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Acura ZDX Type S features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Lane-Keeping Assist (LKA): Standard on the Acura ZDX Type S, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Optional on the Acura ZDX Type S, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Acura ZDX Type S, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Automatic Emergency Braking (AEB): Standard on the Acura ZDX Type S, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Blind-spot Monitoring (BSM) : Standard on the Acura ZDX Type S, this side assist system helps to detect traffic in blind spots.

Driving Automation

With the standard level 2 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.

Security and Access Technologies

The Acura ZDX Type S is equipped with advanced security features to protect you and your vehicle. These include:

• Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 793 liters (28.0 CU FT). With the rear seat folded down, this expands to 1723 liters (60.8 CU FT).

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1588 kg (3501 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
