Nissan Leaf 24 kWh
The Nissan Leaf 24 kWh is an all-electric hatchback offering a WLTP range of up to 175 km (109 miles). EVKX.net has all the details you need.
We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
Performance
The Nissan Leaf 24 kWh has a maximum power of 80 kW (109 hp / 107 bhp) and a total torque of 254 Nm (187 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 11.5 seconds and reaches a top speed of 145 km/h (90 mph).
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 24.0 kWh and a net usable capacity of 21.0 kWh, providing a 3.0 kWh buffer (12.5%) for battery protection. With a nominal voltage of 360 volts, the system is classified as a 400-volt battery system, aligning with industry standards.
This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.
According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle's range is 175 km (109 miles), with an energy consumption rate of 12.0 kWh/100 km (3 mi/kWh).
For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 46 kW. Charging from 0% to 100% takes approximately 146 minutes, while a typical 10% to 80% charge takes about 32 minutes with an average charging speed of 27 kW.
Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 3% to 58%. This results in an effective charging speed, including time lost, of 30 kW, with each charging session taking about 23 minutes and 52 seconds.
Onboard Charger
The standard onboard charger supports up to 6.6 kW for Level 1 and Level 2 AC charging, allowing a full 0–100% charge in about 3 hours and 10 minutes with a standard home setup.
Charge Port
The location of the charge port is on the front. This location makes it easy to use charge stations where you need to park with the front in.
Drivetrain
The Nissan Leaf 24 kWh has a front-wheel drive system supported by one motor on the front axle.
Suspension
The suspension system features a MacPherson strut front construction and a torsion beam rear construction. Both the front and rear dampers are monotube dampers, providing consistent performance and durability. The front and rear springs are coil springs, offering a balance of comfort and performance.
The Standard Suspension suspension has a fixed height and damping characteristics.
Ground clearance with this setup is 160 mm.
Drive Modes
The Nissan Leaf 24 kWh lets the user select different drive modes that affect the car's handling.
Brakes
The Nissan Leaf 24 kWh is equipped with cast-iron disc brakes on both the front and rear.
Regenerative Braking
However, it is not considered full one-pedal driving since, at low speeds, the vehicle will keep rolling until it comes to a stop by itself.Exterior
The Nissan Leaf 24 kWh, with dimensions of 4445 mm in length, 1770 mm in width, and 1550 mm in height, falls into the C-segment cars, also known as compact cars, strike a balance between size, performance, and affordability, making them versatile for a variety of drivers.
The Nissan Leaf 24 kWh is available in a total of 6 paint colors, including both solid and metallic options.
The Nissan Leaf 24 kWh offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:
- 205/55 tires on 16" rims
- 215/50 tires on 17" rims
Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.
The car has four regular doors and a boot lid for the trunk.
There is only one roof option for this model.
The standard is just a regular roof.
Interior
This model has a functional interior with a standard quality and a traditional console design. The interior is designed to be easy to use and practical, with a focus on functionality.
Seats
The Nissan Leaf 24 kWh accommodates five passengers with two front seats and a three-seat bench in the rear.
First Row Seats
The Nissan Leaf 24 kWh offers a single type of front seat.
The following functionalities are available on the **** seat:
- Fore-and-aft adjustment (manually adjustable)
- Recline adjustment (manually adjustable)
- Height adjustable headrest (manually adjustable)
- Heating (optional)
Available in:
- Gray fabric upholstering
Second Row Seat
The second row features a standard three-seat bench with a SixtyForty split, allowing each section to fold separately to increase cargo space.
Additional functionalities include:
- ISOFIX (standard for outer seats)
Interior Storage
The Nissan Leaf 24 kWh provides ample interior storage solutions to enhance convenience and organization:
- Glove Compartment: A spacious glove compartment is situated in the dashboard in front of the passenger, ideal for storing essential items.
Interior Lighting
The Nissan Leaf 24 kWh offers a range of interior lighting options designed to create a pleasant ambiance and enhance visibility.
- en interior.light.ambient.footwell
Climate System
There is one climate system available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.
Comfort Features
The Nissan Leaf 24 kWh includes several features to enhance comfort and convenience:
User Interface and Control

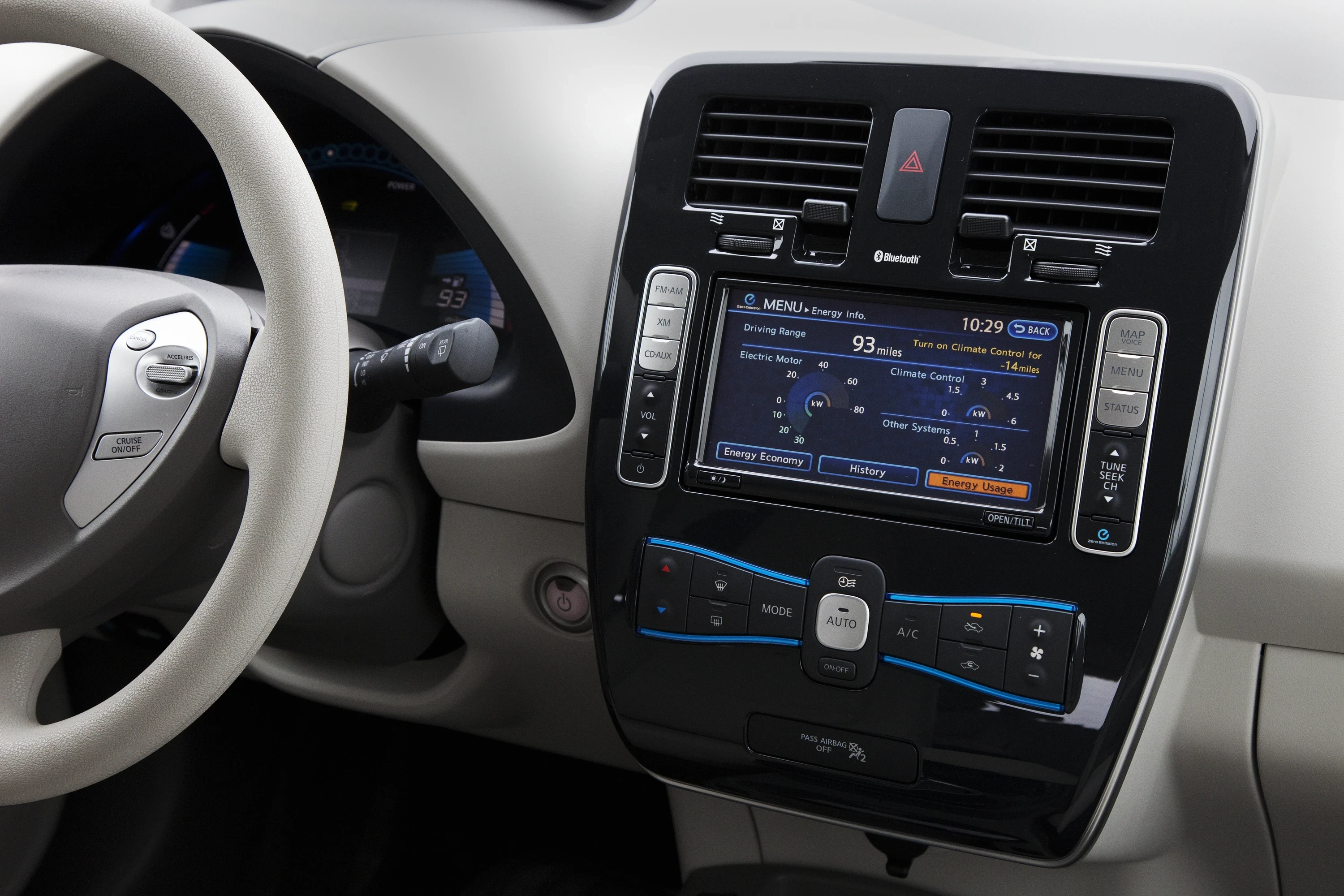

The Nissan Leaf 24 kWh features a user-friendly control interface that combines physical buttons for frequently used functions, such as climate control, with stalks and screens for a seamless experience.
en uicontrols.uncategoriezed
Key screen details:
- en uicontrols.screen.info.TopCenterConsole.touch
The Nissan Leaf 24 kWh does not include a head-up display, so driving information such as speed and navigation cues is not projected into the driver’s line of sight on the windshield.
Steering Wheel
The Nissan Leaf 24 kWh is equipped with a single type of steering wheel:
The steering wheel is adjustable for both tilt and telescope. The adjustment is manual.
Heating: Available as an option
Mirrors
Infotainment
en infotainment.os.Nissan Carwings
Navigation System
The built-in navigation system uses detailed maps and offers route planning with charging stops.
Sound System
You can choose between two sound systems for the Nissan Leaf 24 kWh:
- Standard Audio: Features four speakers.
- Bose Energy Efficient Series: Features seven speakers.
The model has 1 USB-A connections as standard.
Mobile App
The Nissan Leaf 24 kWh comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:
- Locate Your Vehicle: Easily check the current location of your car.
- Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
- Scheduled Charging: Plan and schedule charging sessions ahead of your trips.
- Find Your Car: Trigger the horn or lights to help find your car in crowded areas.
- Driving History: Review the details of your past trips.
Lights
The standard LED headlights feature multiple LED segments, allowing you to customize your preferred daytime running light (DRL) signature.
The taillights use LED technology, ensuring both high visibility and energy efficiency.
Advanced Driver Assistance Systems
The Nissan Leaf 24 kWh features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.
Safety Systems
Anti-lock Braking System (ABS): Standard on the Nissan Leaf 24 kWh, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the Nissan Leaf 24 kWh, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.
Driving Automation
With the standard system the model offers no driving automation.
- Cruise control.
Safety
The Nissan Leaf 24 kWh is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:
- Front airbags for the driver and front passenger
- Side curtain airbags for both the first and second rows
- Side airbags for the driver and front passenger
Security and Access Technologies
The Nissan Leaf 24 kWh is equipped with advanced security features to protect you and your vehicle. These include:
- Alarm System: An optional integrated alarm system monitors for unauthorized entry or tampering, providing alerts to help deter intrusions and enhance vehicle security.
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 370 liters (13.1 CU FT). With the rear seat folded down, this expands to 680 liters (24.0 CU FT).
The vehicle’s maximum weight is 1945 kg (4288 lbs), with a base weight of 1500 kg (3307 lbs). This allows for a maximum load of 445 kg (981 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
This model is not available with a towbar. So, to pull a trailer, you must look at other models.
Availability & Pricing
This model had a world premiere on 8/2/2010, and deliveries started in December 2010. This model has now been discontinued.
Pricing
Pricing may vary depending on local conditions, incentives, and promotions. Below are the starting prices for select countries:
- $32,780 (USA)
- £28,350 (United Kingdom)
