Mini Aceman JCW specifications
2025, 2026
Last modified: May 18, 2026
Specifications complete
EVKX.net provides full specifications for Mini Aceman JCW.

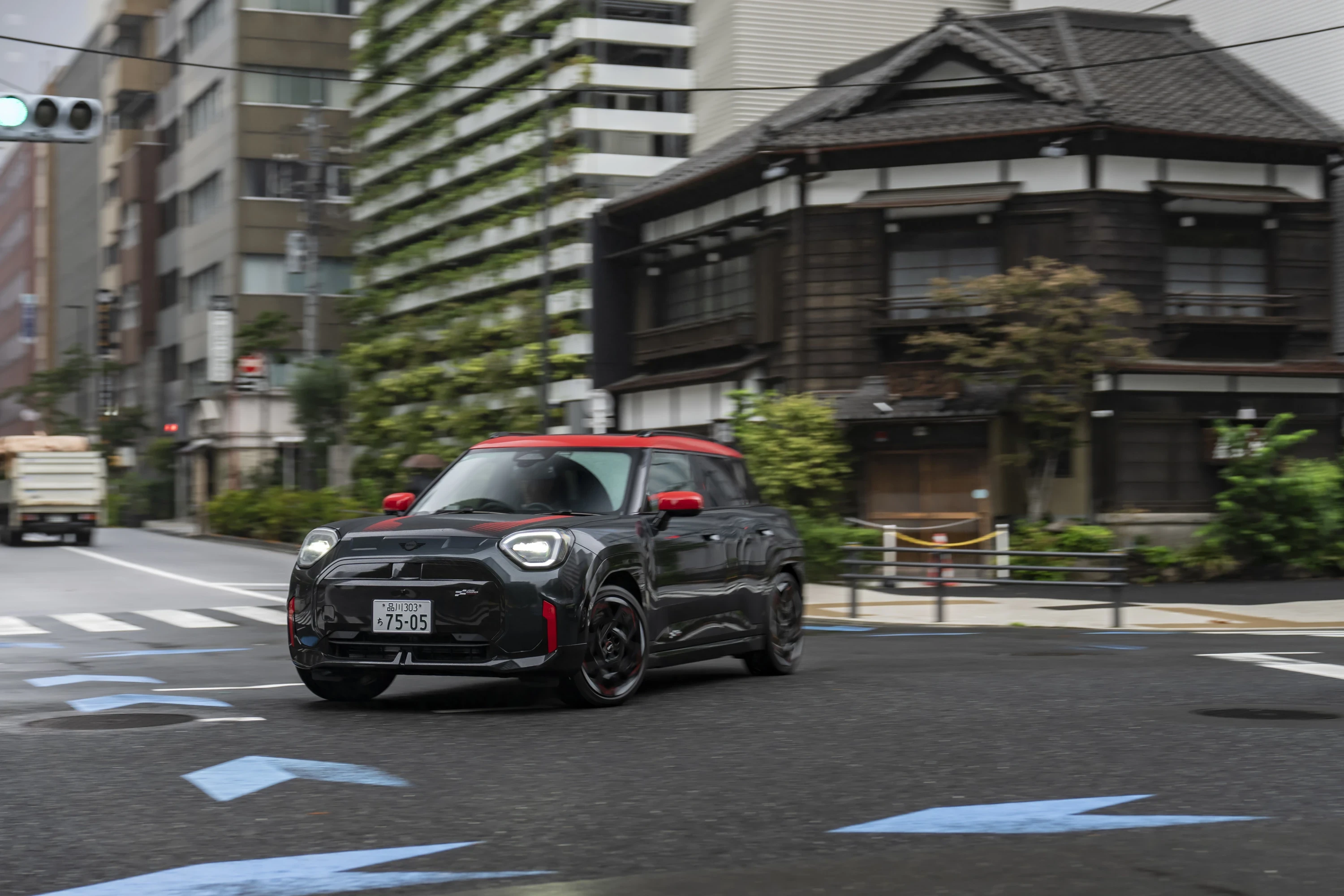

EVKX.net seeks to have the most complete specifications for Mini Aceman JCW. Click on image above for full article, visit the image gallery for high-res images of Mini Aceman JCW, visit the chargeinfo for Mini Aceman JCW with chargecurve, visit extended range info for real world ranges.
SUV · FWD · 5 seats · 400V architecture
Range
WLTP (Worldwide Harmonised Light Vehicles Test Procedure) is the European lab test used to rate range and consumption. Real-world range is usually lower.
355 km
WLTP
Battery
Usable (net) capacity is the energy actually available for driving. It is lower than the gross capacity, which keeps a protective buffer in reserve.
49.2 kWh
usable
DC charging
The highest DC fast-charging power the car can accept, in kW. It is only reached over part of the charging curve, not the whole session.
95 kW
max
0–100 km/h
6.4 s
Power
190 kW
258 hp
Efficiency
Energy used per 100 km. Lower is better — it means more range from the same battery.
13.9
kWh/100 km
Drivetrain
FWD
Mini Aceman JCW
Performance & Drivetrain
Performance
Acceleration, top speed, and power specifications
|
Spec
|
Value
|
|---|---|
| Peak power | 190 kW (258 hp / 255 bhp) |
| Electrical torque output | 350 Nm (258 lb-ft) |
| Top speed | 200 kph (124 mph) |
| 0-100km/h (0-62 mph) | 6.4 s |
Power & Torque
Peak power
190 kW (258 hp / 255 bhp)
Electrical torque output
350 Nm (258 lb-ft)
Speed & Acceleration
Top speed
200 kph (124 mph)
0-100km/h (0-62 mph)
6.4 s
Suspension
Spec
Value
Not available
Not available
Not available
Not available
Not available
Unknown
Unknown
NotSet
NotSet
Coil
Coil
MacPhersonStrut
Suspension type rear
Multilink
Adaptive Features
Not available
Not available
Not available
Height Adjustment
Not available
Not available
Ground Clearance
Unknown
Unknown
Component Types
NotSet
NotSet
Coil
Coil
MacPhersonStrut
Suspension type rear
Multilink
Battery, Range & Charging
Battery & Charging
Battery specifications and charging capabilities
|
Spec
|
Value
|
|---|---|
|
54.2
kWh
|
|
|
49.2
kWh
|
|
|
95
kW
|
|
|
Number of modules
|
|
|
398.2
V
|
|
|
Cathode Materials
|
NMC |
54.2
kWh
49.2
kWh
95
kW
Number of modules
398.2
V
Cathode Materials
NMC
Chargeport
Charging port specifications by region
|
Spec
|
Value
|
|---|---|
|
Chargeport placement
|
Right rear side |
|
Type chargeport Europe
|
CCS2
|
|
Type chargeport Oceania (Australia, New Zealand ++)
|
CCS2
|
Chargeport placement
Right rear side
Type chargeport Europe
CCS2
Type chargeport Oceania (Australia, New Zealand ++)
CCS2
Range & Consumption
Range estimates and energy consumption data
Below you see the official range info. Visit our extended range info for detailed real world range examples. Visit our Range Guide to see what affects range and how the official range values are measured.
|
Spec
|
Value
|
|---|---|
|
Basic trim WLTP range
Learn more
|
355
km
|
|
Basic trim WLTP consumption
Learn more
|
13.9
kWh/100km
|
|
Basic trim WLTP consumption with charging loss
Learn more
|
160
kWh/100km
|
|
Top trim WLTP range
Learn more
|
350
km
|
|
Top trim WLTP consumption
Learn more
|
14.1
kWh/100km
|
|
Top trim WLTP consumption with charging loss
Learn more
|
164
kWh/100km
|
Dimensions, Cargo & Exterior
Dimensions
Spec
Value
Length
4079 mm (160.6")
Height
1514 mm (59.6")
Width excluding mirrors
1754 mm (69.1")
Width including mirrors
2049 mm (80.7")
Wheelbase
2606 mm (102.6")
Track width front
Unknown
Track width rear
Unknown
Drag coefficient
0.28
Frontal area
m²
Approach Angle
Departure Angle
Turning circle
11.1 meter (437.0")
Basic Dimensions
Length
4079 mm (160.6")
Height
1514 mm (59.6")
Width excluding mirrors
1754 mm (69.1")
Width including mirrors
2049 mm (80.7")
Wheelbase & Track
Wheelbase
2606 mm (102.6")
Track width front
Unknown
Track width rear
Unknown
Aerodynamics
Drag coefficient
0.28
Frontal area
m²
Clearance & Turning
Approach Angle
Departure Angle
Turning circle
11.1 meter (437.0")
Cargo Capacity and Towing Ability
Weight, cargo capacity and towing specifications
|
Spec
|
Value
|
|---|---|
|
1825 kg (4023 lbs)
|
|
|
2355 kg (5192 lbs)
|
|
|
530 kg (1168 lbs)
|
|
|
75 kg (165 lbs)
|
|
|
300 liter (11 cu-ft)
|
|
|
1005 liter (35 cu-ft)
|
|
|
Not available
|
|
|
750 kg (1653 lbs)
|
|
|
750 kg (1653 lbs)
|
|
|
Maximum tow ball weight
|
Unknown
|
Weight Specifications
1825 kg (4023 lbs)
2355 kg (5192 lbs)
530 kg (1168 lbs)
75 kg (165 lbs)
Cargo Capacity
300 liter (11 cu-ft)
1005 liter (35 cu-ft)
Not available
Towing Capacity
750 kg (1653 lbs)
750 kg (1653 lbs)
Maximum tow ball weight
Unknown
Exterior
Spec
Value
Paint colors
Sunny Side Up Yellow
Chili Red
Melting Silver III
Ocean Wave Green
Blazing Blue
British Racing Green IV
Indigo Sunset Blue
Midnight Black II
Nanuq White
Legend Grey Gray
Paint colors
Sunny Side Up Yellow
Chili Red
Melting Silver III
Ocean Wave Green
Blazing Blue
British Racing Green IV
Indigo Sunset Blue
Midnight Black II
Nanuq White
Legend Grey Gray
Interior, Controls & Infotainment
Interior
Seating Configuration
This model is available with a seat configuration with five seats.
Front seats
Spec
Value
Driver and Passenger Seat
Seat depth adjustment
Standard feature
Seat height adjustment
Standard feature
Backrest angle adjustment
Standard feature
Seat cushion angle adjustment
Not Available
Memory
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Unknown
Not Available
Not Available
Seat Category
Driver and Passenger Seat
Basic Adjustments
Seat depth adjustment
Standard feature
Seat height adjustment
Standard feature
Backrest angle adjustment
Standard feature
Memory
Not Available
Advanced Adjustments
Seat cushion angle adjustment
Not Available
Height adjustable headrest
Not Available
Length adjustable headrest
Not Available
Adjustable thigh support
Not Available
Backrest side bolster adjustment
Not Available
Seat cushion side bolster adjustment
Not Available
Comfort Features
Footrest passenger
Not Available
Leg support passenger
Not Available
Electric lumbar adjustment
Unknown
Seat ventilation
Not Available
Massage function
Not Available
Second row seats
Spec
Value
Three-seat bench
Seat depth adjustment
Not Available
Seat height adjustment
Not Available
Backrest angle adjustment
Not Available
Seat cushion angle adjustment
Not Available
Memory
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available
Seat Category
Seat type
Three-seat bench
Basic Adjustments
Seat depth adjustment
Not Available
Seat height adjustment
Not Available
Backrest angle adjustment
Not Available
Memory
Not Available
Advanced Adjustments
Seat cushion angle adjustment
Not Available
Height adjustable headrest
Not Available
Length adjustable headrest
Not Available
Adjustable thigh support
Not Available
Backrest side bolster adjustment
Not Available
Seat cushion side bolster adjustment
Not Available
Comfort Features
Footrest passenger
Not Available
Leg support passenger
Not Available
Electric lumbar adjustment
Not Available
Seat ventilation
Not Available
Massage function
Not Available
UI and controls
User interface and control specifications
|
Spec
|
Value
|
|---|---|
| Head-up display | Yes, optional equipment |
| Voice control | Yes, standard equipment |
| Gesture control | Not available |
| Android Auto support | Yes, standard equipment |
| Apple CarPlay support | Yes, standard equipment |
| In-car navigation | Yes, standard equipment |
| Available screen layouts | 1 |
Interface Controls
Head-up display
Yes, optional equipment
Voice control
Yes, standard equipment
Gesture control
Not available
Available screen layouts
1
Smartphone Integration
Yes, standard equipment
Yes, standard equipment
Yes, standard equipment
Infotainment
Number of available sound systems
Standard 6-Speaker
Spec
Value
Number of speakers
6
Total effect
100 W
Audio System
Number of speakers
6
Total effect
100 W
Harman Kardon 10-Speaker
Spec
Value
Number of speakers
10
Total effect
360 W
Audio System
Number of speakers
10
Total effect
360 W
Driver Assistance
Driver Assistance
Advanced safety and driving assistance features
|
Spec
|
Value
|
|---|---|
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Not available | |
| Yes, standard equipment | |
|
Hill descent assist
|
Not available |
|
Hill start assist
|
Yes, standard equipment |
| Yes, standard equipment | |
| Yes, standard equipment | |
|
Traction control
|
Yes, standard equipment |
|
Left turn crash avoidance
|
Not available |
| Yes, standard equipment | |
| Yes, standard equipment | |
|
Temperature warning
|
Yes, standard equipment |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Yes, standard equipment | |
| Not available |
Yes, standard equipment
Yes, standard equipment
Yes, standard equipment
Yes, standard equipment
Not available
Sensors & Cameras
Vehicle sensors and camera systems
|
Spec
|
Value
|
|---|---|
|
|
|
|
| N/A | |
| N/A | |
|
ADAS processors
|
|
Left front corner
Right front corner
Left front side
Right front side
Left rear corner
Right rear corner
Left rear side
Right rear side
Front
Rear center
Left B-pillar
Right B-pillar
Front
Rear center
N/A
N/A
Mobileye EyeQ4
— 4 TOPS
