KIA EV3 Standard Range
KIA EV3 Standard Range is an all-electric crossover with a WLTP range of up to 436 km (271 miles). EVKX.net has all the details.
KIA EV3 Standard Range
We've organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:
- Performance
- Battery, Range, and Charging
- Drivetrain (suspension, brakes, steering)
- Exterior (paint colors, wheels ++)
- Interior (seats++)
- User interface and control
- Infotainment
- Battery, Range, and Charging
- Lights
- Advanced driver-assistance systems
- Cargo Capacity and Towing Ability
Performance
The KIA EV3 Standard Range offers modest performance with a maximum power of 150 kW (204 hp / 201 bhp) and a total torque of 283 Nm (209 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 7.5 seconds and has a top speed of 170 km/h (106 mph), aligning more closely with traditional internal combustion engine vehicles.
Battery, Range, and Charging
The high-capacity battery has a gross capacity of 58.3 kWh and a net usable capacity of 55.0 kWh, providing a 3.3 kWh buffer (5.7%) for battery protection. With a nominal voltage of 369 volts, the system is classified as a 400-volt battery system, aligning with industry standards.
Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle's range varies between 436 to 414 km (271-257 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle's energy consumption is rated at 12.6 kWh/100 km for the base model and 13.3 kWh/100 km for the top-tier model under the WLTP test cycle.For more details about the range, see real-world data and range listings on this model’s range and consumption page.
The vehicle supports fast DC charging with a maximum power of 100 kW. Charging from 0% to 100% takes approximately 50 minutes, while a more typical scenario from 10% to 80% takes 22 minutes with an average charging speed of 105 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 10% to 72%. This results in an effective charging speed, including time lost, of 89 kW, with each charging session taking about 23 minutes and 1 seconds.
In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 20 kWh/100 km, the trip would take about 9 hours and 58 minutes, requiring four charging stops from 7% to 73%, totaling 98 minutes of charging time.
Onboard Charger
The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging, allowing a full charge from 0 to 100% in about 5 hours and 0 minutes using a home setup.
KIA EV3 Standard Range
Charge Port
The location of the charge port is on the front. This location makes it easy to use charge stations where you need to park with the front in.
Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.
Bidirectional Charging
This model supports V2L (Vehicle to Load), allowing you to power electrical equipment requiring up to 3.6 kW of power, including the ability to charge other vehicles.Drivetrain
The KIA EV3 Standard Range has a front-wheel drive system supported by one motor on the front axle. The motor used are Permanent Magnet Synchronous Motors.
Suspension
The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers. The standard suspension has a fixed height and damping.The ground clearance with this suspension is 140 mm.
Steering
Dynamic steering is common.standardfeature on the KIA EV3 Standard Range, varying the steering ratio based on driving speed for enhanced control and comfort.
Drive Modes
The KIA EV3 Standard Range lets the user select different drive modes that affect the car's handling.
The driver can choose between 5 modes:;
- Eco: Balanced steering and efficent throttle.
- Sport: Dynamic steering and throttle.
- Normal: Balanced steering and throttle.
- Individual: User-defined settings for steering and throttle.
- Snow: Balanced steering and throttle.
Brakes
The KIA EV3 Standard Range is equipped with cast-iron disc brakes on both the front and rear. The front discs measure 345 mm, while the rear discs are 345 mm.
Regenerative Braking
Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen.
You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.
Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are four levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.
The maximum regenerative power is 150 kW.
KIA EV3 Standard Range
Interior
The interior of the KIA EV3 Standard Range is functional, with medium-quality materials used throughout. It includes a floating center console that creates an open space between the passenger and driver, providing convenient storage options. The overall design prioritizes practicality and ease of use.
There is one seat type you can select in different materials.Seats
The KIA EV3 Standard Range accommodates five passengers with two front seats and a three-seat bench in the rear.
First Row Seats
The KIA EV3 Standard Range offers a single type of front seat.
The following functionalities are available on the **** seat:- Fore-and-aft adjustment (electrically adjustable)
- Recline adjustment (electrically adjustable)
- Seat cushion angle adjustment
- Height adjustable headrest
- Heating
- Adjustable lumbar support (electrically adjustable as an option)
- Ventilation (optional)
Second Row Seat
The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space.
Additional functionalities include:
- Recline adjustment (manually adjustable)
- Height adjustable headrest (manually adjustable)
- ISOFIX (standard for outer seats)
KIA EV3 Standard Range
Climate System
There is one climate system available:
- 2-zone climate system: Supports different temperatures for the driver and passenger.
This model has a heat pump as an option. This heat pump can save significant energy used for heating in cold weather.
Comfort Features
The KIA EV3 Standard Range includes several features to enhance comfort and convenience:;
- Wireless Phone Charging
User Interface and Control

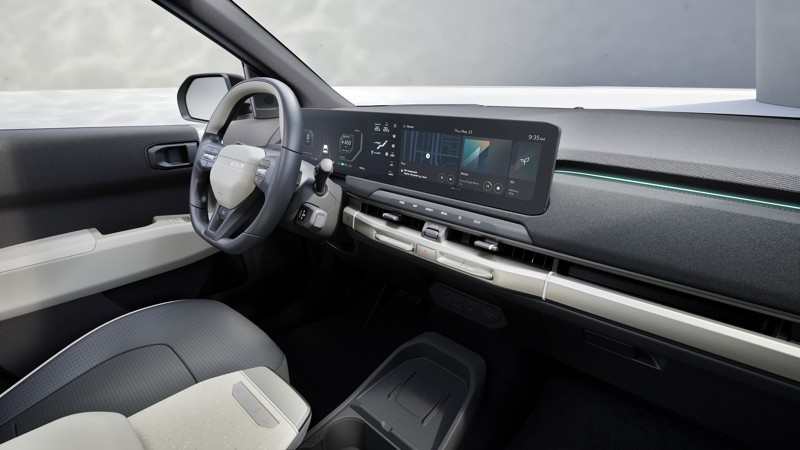

The control interface for the KIA EV3 Standard Range combines buttons, stalks, and screens for a seamless and user-friendly experience.
The KIA EV3 Standard Range has a single screen for the driver.
The dashboard’s center has a single infotainment screen that serves as the primary display for both vehicle information and infotainment functions.
Key screen details:
- The screen behind the steering wheel accross the the center of the dash is 30.0 inches large
A head-up display is common.optionalfeature system that projects speed and other important driver information onto the windshield.
Steering Wheel
The KIA EV3 Standard Range is equipped with a single type of steering wheel:
- Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.
Mirrors
Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.
Infotainment
The KIA EV3 Standard Range features a custom-built infotainment system designed to provide a interface with a range of features and functions to enhance the driving experience.
Navigation System
The built-in navigation system uses detailed maps and offers advanced route planning. The system provides real-time traffic information ensuring an efficient and stress-free journey.
Phone Mirroring
The KIA EV3 Standard Range supports Android Auto and Apple CarPlay, allowing you to mirror your phone's screen on the car's display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.
Sound System
You can choose between two sound systems for the KIA EV3 Standard Range:
- Standard: Features six speakers.
- Meridian Premium Sound System: Features en 14 speakers.
Additionally, the model includes 4 USB-C connections as standard. The model has 1 USB-A connections as standard.
Mobile App
The KIA EV3 Standard Range comes with a dedicated mobile app, available for both Android and iOS devices, allowing you to manage and monitor your vehicle remotely. The app offers a wide range of features designed to enhance your driving experience:;
- Locate Your Vehicle: Easily check the current location of your car.
- Preconditioning: Preheat or cool your car before you start your journey for optimal comfort.
- Remote Parking: Effortlessly control your car to park or exit a parking space remotely.
- Lock & Unlock: Securely lock or unlock your car doors with a tap.
- Scheduled Charging: Plan and schedule charging sessions ahead of your trips.
- Adjust Charging Target: Set your desired State of Charge to start or stop charging as needed.
- Route Planning: Plan your route and send it directly to your car's navigation system.
- Driving History: Review the details of your past trips.
Lights
You can choose between two types of headlights for the KIA EV3 Standard Range.
- Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
- LED Matrix Headlights: Available as an option, this adaptive system splits the traditional single headlight beam into dozens of smaller rays that the light controller can turn on and off individually, optimizing lighting by un-lighting specific small areas in front.
Advanced Driver Assistance Systems
The KIA EV3 Standard Range features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort. ;
Safety Systems
Anti-lock Braking System (ABS): Standard on the KIA EV3 Standard Range, this system prevents the wheels from locking during braking.
Electronic Stability Control (ESC): Standard on the KIA EV3 Standard Range, this system improves the vehicle's stability and handling during sudden maneuvers or on slippery road conditions.
Lane-Keeping Assist (LKA): Standard on the KIA EV3 Standard Range, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.
Front Cross Traffic Assist (FCTA) : Standard on the KIA EV3 Standard Range, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.
Rear Cross Traffic Alert (RCTA): Standard on the KIA EV3 Standard Range, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.
Forward Collision Warning (FCW): Standard on the KIA EV3 Standard Range, this driver assist system helps drivers avoid or mitigate frontal collisions.
Automatic Emergency Braking (AEB): Standard on the KIA EV3 Standard Range, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.
Automatic Emergency Steering (AES): Standard on the KIA EV3 Standard Range, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.
Blind-spot Monitoring (BSM) : Optional on the KIA EV3 Standard Range, this side assist system helps to detect traffic in blind spots.
Exit Warning: Standard on the KIA EV3 Standard Range, this system that alerts occupants against opening doors if there is a risk of hitting something.
Driving Automation
With the standard Highway Driving Assist level 2 system, you get the following driving automation features.
- Adaptive Cruise Control (ACC)
- Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
With the optional Highway Driving Assist 2 level 2 system, you get additional driving automation features to the ones listed above:
Sensors & Cameras
This model uses cameras, radar, and ultrasonic sensors for its driver assist systems.
Up to five radar sensors, five cameras, and en 12 ultrasonic sensors monitor the vehicle’s surroundings.
Safety
The KIA EV3 Standard Range is equipped with multiple airbags to ensure occupant protection in the event of a collision. The airbag system includes:
- Front airbags for the driver and front passenger
- Side curtain airbags for both the first and second rows
- Side airbags for the driver and front passenger
- Side airbags for the second-row passengers
- A front center airbag to prevent the driver and front passenger from colliding with each other during a side impact
Security and Access Technologies
The KIA EV3 Standard Range is equipped with advanced security features to protect you and your vehicle. These include:
Cargo Capacity and Towing Ability
The trunk offers a cargo capacity of 460 liters (16.2 CU FT). With the rear seat folded down, this expands to 1251 liters (44.2 CU FT).
On the roof, you can load up to 80 kg (176.4 lbs).
Optional roof rails are available for easy mounting of a roof box or rack.
Additionally, there is a frunk (front trunk) with a storage capacity of 25 liters (0.9 CU FT).
The vehicle’s maximum weight is 2270 kg (5004 lbs), with a base weight of 1725 kg (3803 lbs). This allows for a maximum load of 545 kg (1202 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.
A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 500 kg (1102 lbs), while for an unbraked trailer, it is 500 kg (1102 lbs).
Availability & Pricing
The KIA EV3 Standard Range had its world premiere on 5/23/2024, with deliveries starting in November 2024.
Pricing
Pricing may vary depending on local conditions, incentives, and promotions. Below are the starting prices for select countries:
- 359,900.000 NOK (Norway)
