Hyundai IONIQ 5 N specifications

Last modified: Nov 22, 2025

EVKX.net provides full specifications for Hyundai IONIQ 5 N.

EVKX.net seeks to have the most complete specifications for Hyundai IONIQ 5 N. Click on image above for full article, visit the image gallery for high-res images of Hyundai IONIQ 5 N, visit the chargeinfo for Hyundai IONIQ 5 N with chargecurve, visit extended range info for real world ranges.

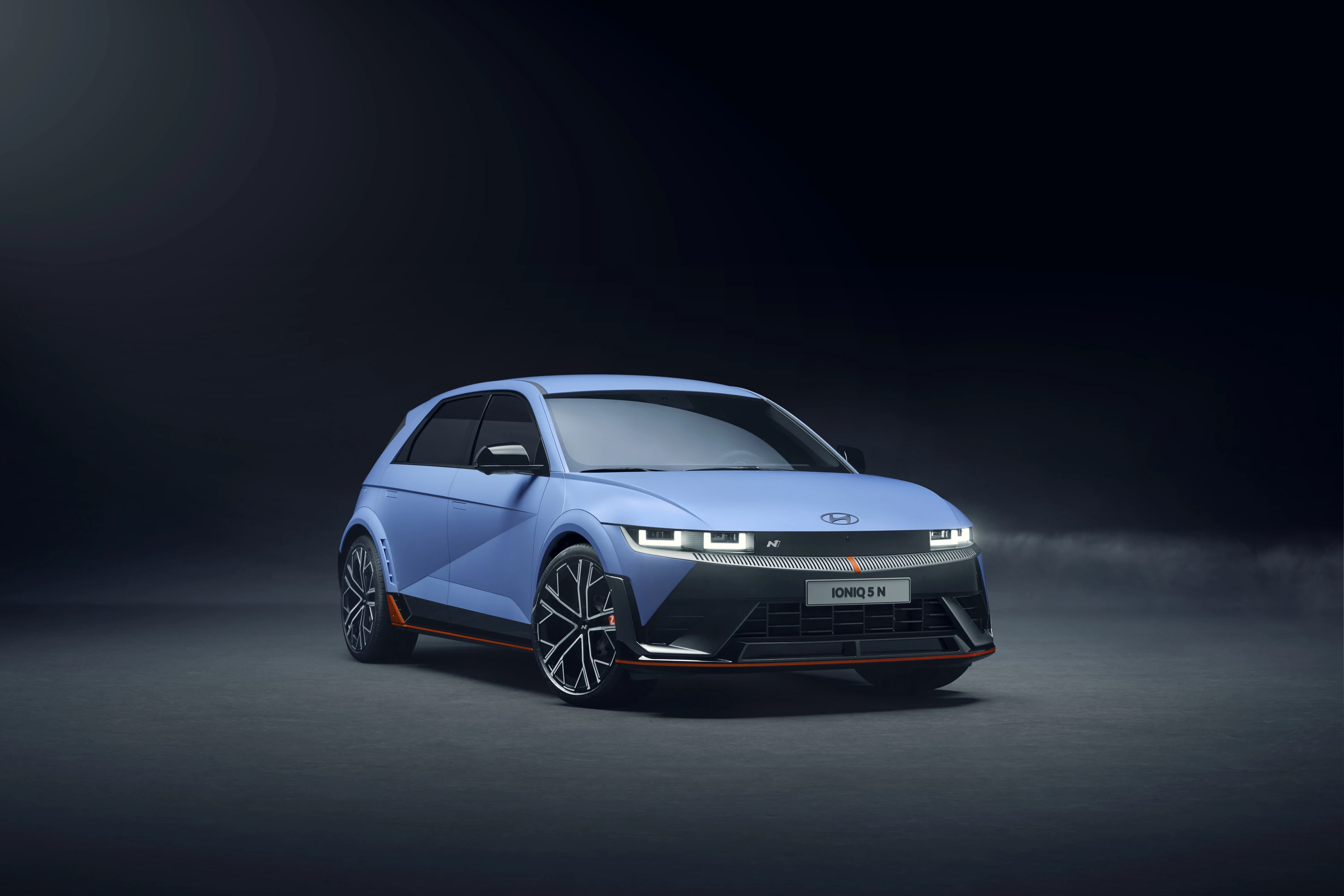

Hyundai IONIQ 5 N

Hyundai IONIQ 5 N

Performance

Power, torque and acceleration specifications

Power & Torque

Peak power
Power
448 KW (609 hp /601 bhp)
Peak power with boost
Boost
478 KW (650 hp /641 bhp)
Electrical torque output
Torque
714 nm (527 lb-ft)
Electrical torque output boost
Boost Torque
770 nm (568 lb-ft)

Speed & Acceleration

Top speed
Top Speed
260 kph (162 mph)
0-100km/h (0-62 mph)
0-100 km/h
3.5 s
0-100km/h (0-62 mph) boost
Boost Mode
3.4 s

Range & Consumption

Official test cycle results and real-world estimates

Below you see the offical range info. Visit our extended range info for detailed real world range examples. Visit our Range Guide to see what affects range and how the offical range values are measured.
WLTP range
450 km
WLTP
WLTP consumption
17.8 kWh/100km
Real-world
WLTP consumption with charging loss
19.2 kWh/100km
WLTP

Battery & Charging

Battery specifications and charging capabilities

Battery gross
84 kWh
Gross
Battery net
80 kWh
Usable
Max DC charging
233 kW
Peak DC
Number of modules
Pack Configuration
192s2p
Nominal voltage
697 V
Cathode Materials

Chargeport

Charging port specifications by region

Spec
RightRearSide
Type chargeport Europe
CCS2
Europe
Type chargeport North America
CCS1
North America
Type chargeport China
GBT
China
Type chargeport Japan
CHAdeMO
Japan
Type chargeport Oceania (Australia, New Zealand ++)
CCS2
Oceania

Dimensions

📏 Basic Dimensions

📏 Length
4715 mm (185.6")
📐 Height
1585 mm (62.4")
↔️ Width excluding mirrors
1940 mm (76.4")
🔄 Width including mirrors
mm (")

🛞 Wheelbase & Track

🛞 Wheelbase
3000 mm (118.1")
⚪ Track width front
1628 mm (64.1")
⚫ Track width rear
1637 mm (64.4")

💨 Aerodynamics

💨 Drag coefficient
0.28
📐 Frontal area
m²

⛰️ Clearance & Turning

⛰️ Approach Angle
🏔️ Departure Angle
🔄 Turning circle
12 meter (472.4")

Cargo Capacity and Towing Ability

Weight, cargo capacity and towing specifications

Weight Specifications

Curb weight
Empty Weight
2214 kg (4881 lbs)
2660 kg (5864 lbs)
446 kg (983 lbs)
80 kg (176 lbs)

Cargo Capacity

480 liter (17 cu-ft)
1540 liter (54 cu-ft)
24 liter (1 cu-ft)

Towing Capacity

1600 kg (3527 lbs)
750 kg (1653 lbs)
Maximum tow ball weight
Tongue
100 kg (220 lbs)

Suspension

🎛️ Adaptive Features

🎛️ Adaptive suspension
Yes, standard equipment
🔧 Adjustable damping front
Yes, standard equipment
🔧 Adjustable damping rear
Yes, standard equipment

📏 Height Adjustment

📏 Adjustable height front
Not available
📏 Adjustable height rear
Not available

⬆️ Ground Clearance

⬆️ Max ground clearance
158 mm (6.2")
⬇️ Minimum ground clearance
158 mm (6.2")

🔩 Component Types

🔩 Damper type front
ElectronicallyControlled
🔩 Damper type rear
ElectronicallyControlled
🌀 Spring type front
Coil
🌀 Spring type rear
Coil
⚙️ Suspension type front
NotSet
⚙️ Suspension type rear
NotSet

Interior

💺 Seating Configuration
This model is available with a seat configuration with five seats.

🪑 Front seats

🏷️ Seat Category

🏷️ Seat type
Driver and Passenger Seat

⚙️ Basic Adjustments

↔️ Seat depth adjustment
Standard feature
↕️ Seat height adjustment
Unknown
⤴️ Backrest angle adjustment
Standard feature
💾 Memory
Not Available

🎛️ Advanced Adjustments

📐 Seat cushion angle adjustment
Unknown
🎚️ Height adjustable headrest
Standard feature
📏 Length adjustable headrest
Not Available
🦵 Adjustable thigh support
Not Available
🔄 Backrest side bolster adjustment
Not Available
🔁 Seat cushion side bolster adjustment
Not Available

💆 Comfort Features

🦶 Footrest passenger
Unknown
🔧 Leg support passenger
Unknown
⚡ Electric lumbar adjustment
Optional electric feature
🌬️ Seat ventilation
Optional feature
💆 Massage function
Not Available

🚗 Second row seats

🏷️ Seat Category

🏷️ Seat type
Three-seat bench

⚙️ Basic Adjustments

↔️ Seat depth adjustment
Unknown
↕️ Seat height adjustment
Unknown
⤴️ Backrest angle adjustment
Standard feature
💾 Memory
Not Available

🎛️ Advanced Adjustments

📐 Seat cushion angle adjustment
Unknown
🎚️ Height adjustable headrest
Unknown
📏 Length adjustable headrest
Unknown
🦵 Adjustable thigh support
Unknown
🔄 Backrest side bolster adjustment
Not Available
🔁 Seat cushion side bolster adjustment
Not Available

💆 Comfort Features

🦶 Footrest passenger
Not Available
🔧 Leg support passenger
Not Available
⚡ Electric lumbar adjustment
Not Available
🌬️ Seat ventilation
Unknown
💆 Massage function
Unknown

Driver Assistance

Advanced safety and driving assistance features

Lane keeping
Yes, standard equipment
Lane departure warning
Yes, standard equipment
Drowsiness Alert
Reversing camera
Yes, standard equipment
360 camera
Yes (Surround View Monitor), optional equipment

Sensors & Cameras

Vehicle sensors and camera systems

Ultrasonic sensors
On bumper front
On bumper front
On bumper front left corner
On bumper front right corner
On bumper front left side
On bumper front right side
On bumper rear left side
On bumper rear right side
On bumper rear left corner
On bumper rear right corner
On bumper rear
On bumper rear
Cameras
Top center windshield
Front ((Optional))
On left wing mirror ((Optional))
On right wing mirror ((Optional))
Rear center ((Optional))
Radar sensors
Front
Left front corner ((Optional))
Right front corner ((Optional))
Left rear corner ((Optional))
Right rear corner ((Optional))
Lidar sensors
N/A

UI and controls

User interface and control specifications

Interface Controls

Head-up display
HUD
Yes, standard equipment
Voice control
Voice
Yes, standard equipment
Gesture control
Gesture
Not available
Available screen layouts
Layouts
1

Smartphone Integration

Yes, standard equipment
Yes, standard equipment
Yes, standard equipment

Infotainment

🎵 Audio System

🔊 Number of speakers
8
⚡ Total effect
W

Exterior

🎨 Paint colors

Atlas White
Abyss Black Pearl
Lucid Blue Pearl
Cyber Gray Metallic
Galactic Gray Metallic
Shooting Star Gray Matte
