BYD Seal RWD

BYD Seal RWD is an all-electric sedan with a WLTP range of up to 520 km (323 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The BYD Seal RWD delivers a solid performance with a maximum power of 230 kW (313 hp / 308 bhp) and a total torque of 360 Nm (266 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 5.9 seconds and reaches a top speed of 180 km/h (112 mph), making it competitive within its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 85.4 kWh and a net usable capacity of 82.5 kWh, providing a 2.9 kWh buffer (3.4%) for battery protection. Operating at a nominal voltage of 569 volts, it qualifies as an 800-volt battery system. This high voltage is pivotal in enabling the system’s charging capabilities. The Lithium-Ion battery utilizes LFP technology, offering both benefits and drawbacks compared to typical NCA/NMC batteries.

According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range is 520 km (323 miles), with an energy consumption rate of 15.9 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 150 kW. Charging from 0% to 100% takes approximately 66 minutes, while a more typical scenario from 10% to 80% takes 36 minutes with an average charging speed of 98 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 4% to 59%. This results in an effective charging speed, including time lost, of 91 kW, with each charging session taking about 30 minutes and 59 seconds.

In a 1000 km challenge at a constant speed of 120 km/h (75 mph) with an assumed consumption rate of 25 kWh/100 km, the trip would take about 10 hours and 12 minutes, requiring four charging stops from 8% to 59%, totaling 112 minutes of charging time.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging, allowing a full charge from 0 to 100% in about 7 hours and 30 minutes using a home setup.

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The BYD Seal RWD has a rear-wheel drive system supported by one motor on the rear axle. The motor used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension employs a double wishbone design, while the rear uses a Multilink setup. The standard suspension includes steel springs and hydraulic dampers.

Steering

Dynamic steering is a standard on the BYD Seal RWD, varying the steering ratio based on driving speed for enhanced control and comfort.

Brakes

The BYD Seal RWD is equipped with cast-iron disc brakes on both the front and rear.

Regenerative Braking

Automatic regeneration is not available in this model. However, regenerative braking is facilitated through one-pedal driving combined with blended brakes. At low speeds, the one-pedal drive mode will keep the car creeping forward.

Additionally, you can adjust the strength of the regenerative braking when you lift your foot off the accelerator. There are two levels of regenerative braking to choose from, allowing you to customize the driving experience to your preference.

The maximum regenerative power is 200 kW.

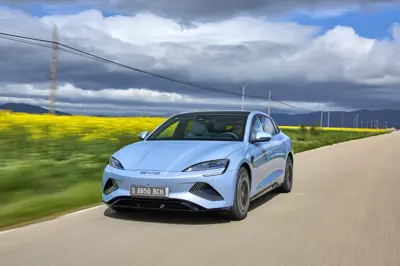

Exterior

The BYD Seal RWD, with dimensions of 4800 mm in length, 1875 mm in width, and 1460 mm in height, falls into D-segment cars, also known as mid-size or family cars, offer more space, comfort, and features than smaller segments, making them suitable for a variety of drivers. The BYD Seal RWD is available in a total of 6 solid paint colors.

You can select from multiple wheel designs, all available in the same size, on the BYD Seal RWD, allowing you to personalize your vehicle to match your style and driving preferences. The available tire and wheel combinations include:

• 265/40 tires on 22" rims

The car has four regular doors and a boot lid for the trunk.

There is only one roof option for this model. The standard roof includes a large panoramic glass roof extending from the front to the rear, enhancing the interior’s spacious and bright feel, thereby improving the mood and comfort of occupants. This glass is tinted to protect against heat from the sun.

The windows from the B-pillar and back are tinted, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

Seats

The BYD Seal RWD accommodates five passengers with two front seats and a three-seat bench in the rear.

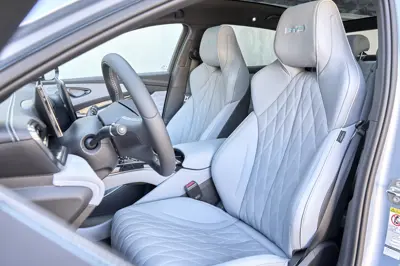

First Row Seats

The BYD Seal RWD offers a single type of front seat.

The following functionalities are available on the standard seat:

• Fore-and-aft adjustment (electrically adjustable)
• Recline adjustment (electrically adjustable)
• Height adjustment (electrically adjustable)
• Heating
• Memory (standard for driver, not available for passenger)
• Adjustable lumbar support (electrically adjustable)
• Ventilation

Available in:

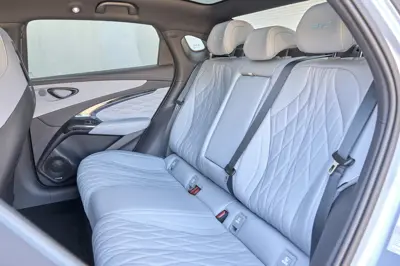

Second Row Seat

The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

• Height adjustable headrest

Climate System

There is one climate system available:

• 2-zone climate system: Supports different temperatures for the driver and passenger.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The BYD Seal RWD includes several features to enhance comfort and convenience:

• Electrically Adjustable Steering Wheel
• Wireless Phone Charging

User Interface and Control

The control interface for the BYD Seal RWD is primarily focused on screen interaction, with limited functionality available through physical buttons and stalks. This design may result in a less than ideal user experience and usability for some users.

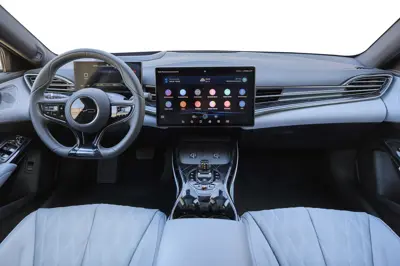

The BYD Seal RWD has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

• The screen behind the steering wheel mounted into the dashboard is 10.3 inches large
• The touch screen on the dashboard’s center is 15.6 inches large

A head-up display is a standard system that projects speed and other important driver information onto the windshield.

Steering Wheel

The BYD Seal RWD is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The BYD Seal RWD supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The BYD Seal RWD comes equipped with one sound system option:

• Dynaudio Performance Audio System: Features 12 speakers.

Additionally, the model includes 3 USB-C connections as standard. The model has 1 USB-A connections as standard.

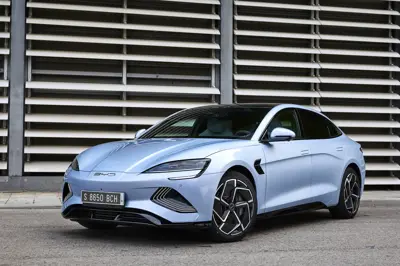

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The BYD Seal RWD features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the BYD Seal RWD, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the BYD Seal RWD, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the BYD Seal RWD, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Optional on the BYD Seal RWD, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the BYD Seal RWD, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Standard on the BYD Seal RWD, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the BYD Seal RWD, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Optional on the BYD Seal RWD, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Standard on the BYD Seal RWD, this side assist system helps to detect traffic in blind spots.

Driving Automation

With the standard Smart Pilot level 2 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Automatic parking. (optional)

Security and Access Technologies

The BYD Seal RWD is equipped with advanced security features to protect you and your vehicle. These include:

• Keyless Entry and Start: The vehicle’s keyless entry and start system enables seamless access, allowing you to unlock and start the car without needing to remove the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 402 liters (14.2 CU FT). Additionally, there is a frunk (front trunk) with a storage capacity of 53 liters (1.9 CU FT).

The vehicle’s maximum weight is 2501 kg (5514 lbs), with a base weight of 2155 kg (4751 lbs). This allows for a maximum load of 346 kg (763 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

This model is not available with a towbar. So, to pull a trailer, you must look at other models.
