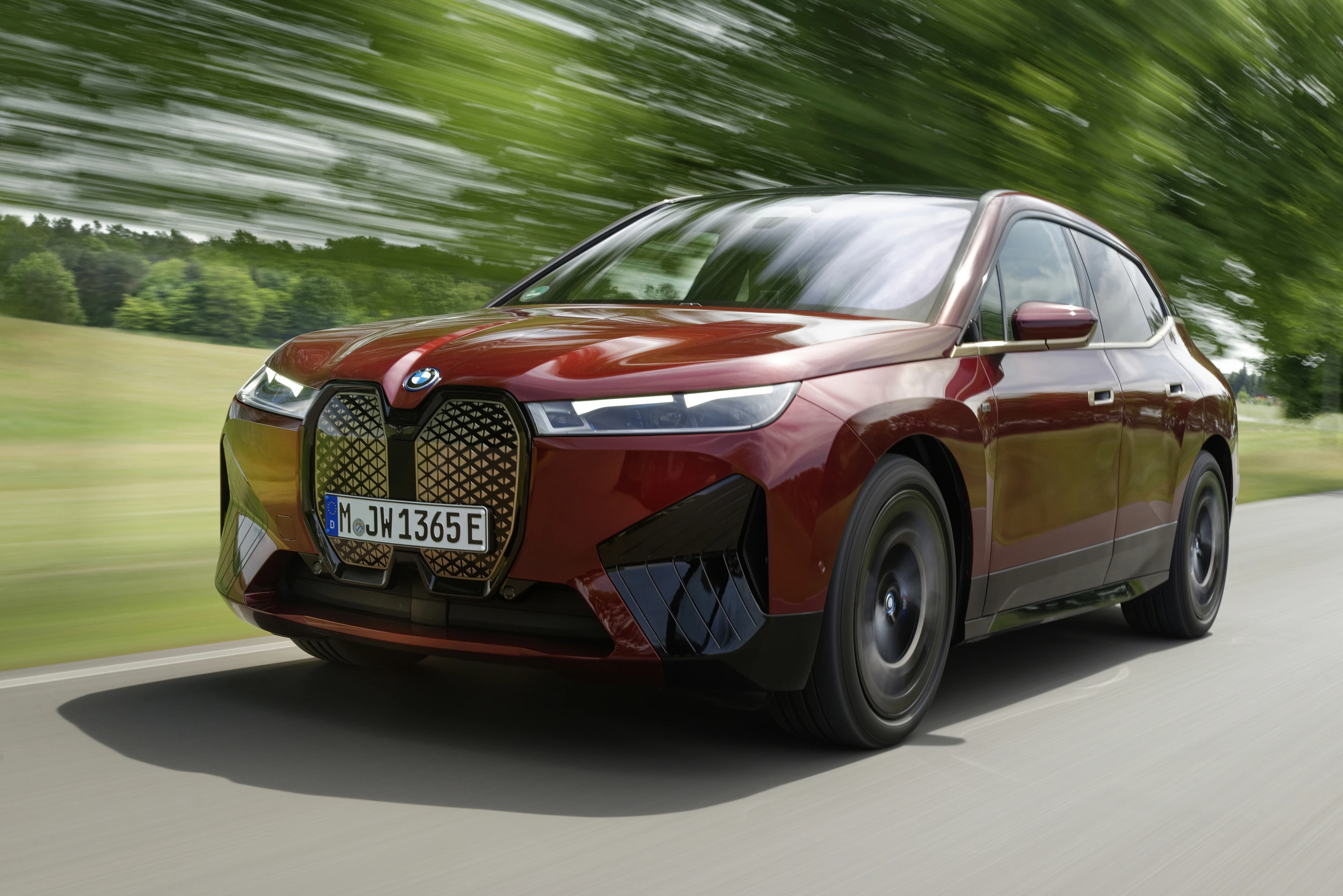

BMW iX M60

BMW iX M60 is an all-electric luxury SUV with a WLTP range of up to 561 km (349 miles). EVKX.net has all the details.

BMW iX M60

BMW iX M60

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

Performance

The BMW iX M60 packs an impressive punch with a maximum power of 455 kW (619 hp / 610 bhp) and a commanding total torque of 765 Nm (565 lb-ft). This high-performance machine can sprint from 0 to 100 km/h (0 to 62 mph) in just 3.8 seconds, and it reaches a top speed of 250 km/h (155 mph), making it a standout in its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 111.0 kWh and a net usable capacity of 105.2 kWh, providing a 5.8 kWh buffer (5.2%) for battery protection. With a nominal voltage of 369 volts, the system is classified as a 400-volt battery system, aligning with industry standards.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 561 to 502 km (349-312 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 18.8 kWh/100 km for the base model and 21.0 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of kW. Charging from 0% to 100% takes approximately 59 minutes, while a more typical scenario from 10% to 80% takes 32 minutes with an average charging speed of 138 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 3% to 53%. This results in an effective charging speed, including time lost, of 132 kW, with each charging session taking about 24 minutes and 49 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 27 kWh/100 km, the trip would take approximately 9 hours and 35 minutes. This journey would require three charging stops from 3% to 56%, with a total charging time of 76 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 9 hours and 33 minutes using a home charging setup.

BMW iX M60

BMW iX M60

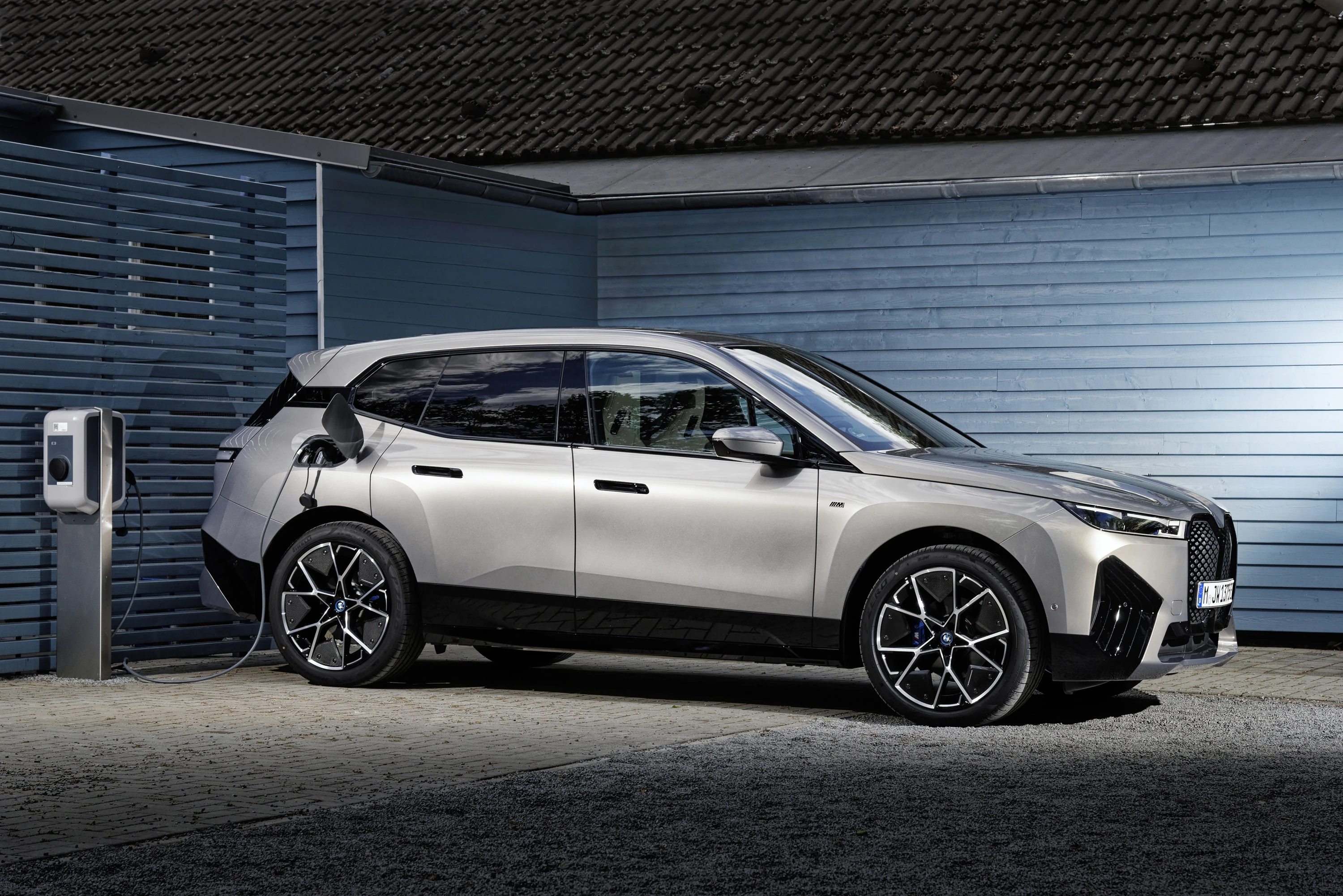

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The BMW iX M60 features an all-wheel drive system powered by two motors, one on each axle. The motors used are Wound-Rotor Synchronous Motors.

Suspension

The front suspension is double wishbone, and the rear suspension is Multilink. It uses air suspension and hydraulic dampers. The suspension is fully adaptive on the front and rear axle, so height and damping can be adjusted manually and automatically. The minimum ground clearance is 193 mm, and the maximum is 223 mm.

Steering

Dynamic steering is a standard on the BMW iX M60, varying the steering ratio based on driving speed for enhanced control and comfort. In addition, rear-wheel steering is available as a standard feature. Rear wheel steering reduces the turning circle when going slow.

Brakes

Regenerative Braking

The regenerative braking system in this model offers several modes to enhance efficiency and driving experience. The most efficient option is the Automatic Regeneration Mode, where the vehicle coasts when possible and employs regenerative braking to reduce speed as needed.

Manual regeneration is another mode, where regenerative braking is controlled by pressing the brake pedal. The brake system blends in physical brakes only when necessary.

Another option is the Regen on Accelerator Pedal mode where regenerative braking is activated when the driver eases off the accelerator pedal. This system allows the vehicle to slow down and recover energy without the driver needing to press the brake pedal, a feature often referred to as one-pedal driving. You can choose between two stopping modes for one-pedal driving. Hold mode brings the vehicle to a complete stop using friction brakes, and Roll mode allows the vehicle to roll until it stops naturally.

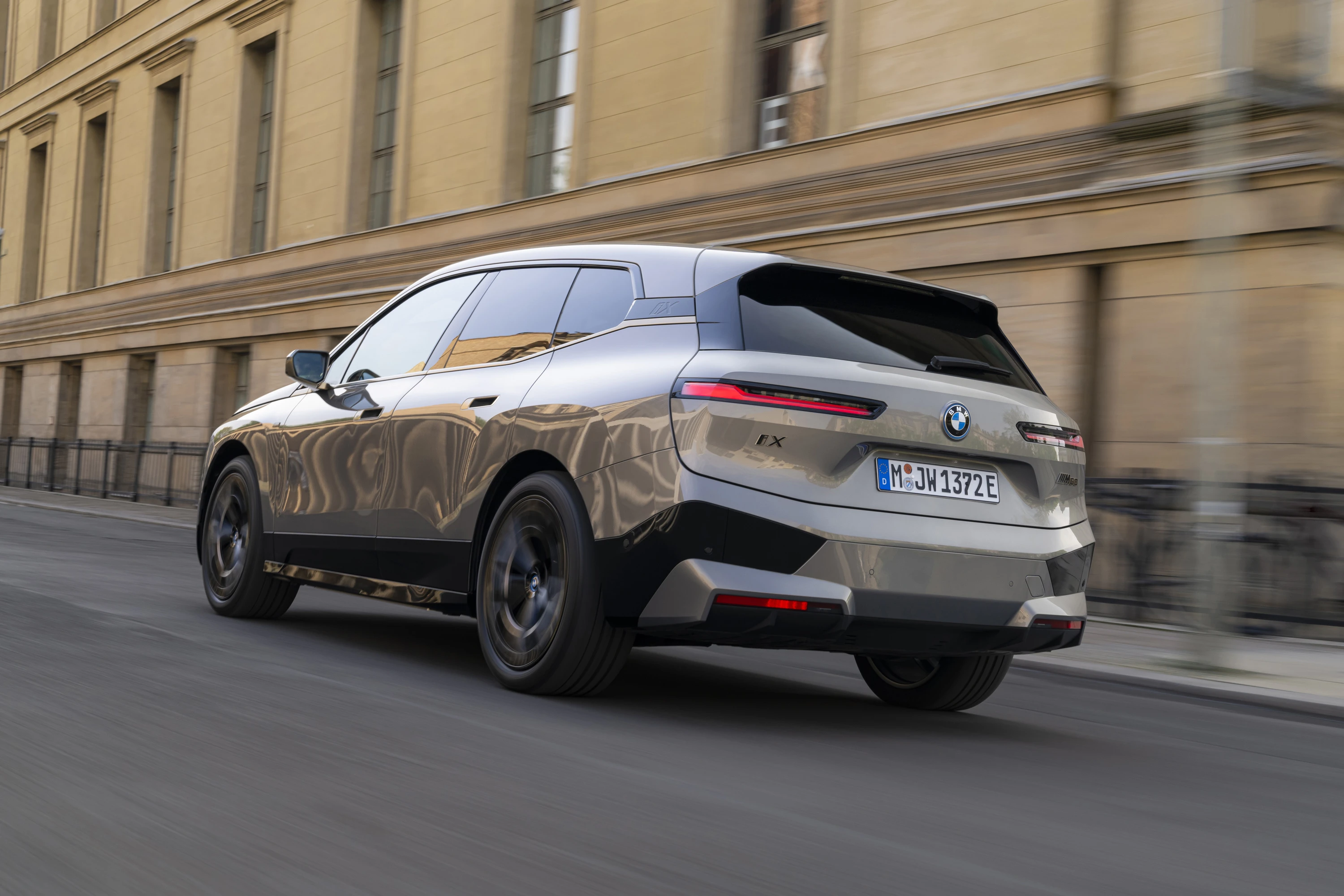

Exterior

The BMW iX M60, with dimensions of 4953 mm in length, 1967 mm in width, and 1696 mm in height, falls into the Mid-size SUVs offer a blend of space, comfort, performance, and versatility, making them suitable for a wide range of drivers with diverse needs. You can choose between 9 different paint colors when ordering this model.

You can select from multiple wheel designs, all available in the same size, on the BMW iX M60, allowing you to personalize your vehicle to match your style and driving preferences. The available tire and wheel combinations include:

  • 255/50 tires on 22" rims front and 275/40 tires on 22" rims rear

The car has four regular doors and a liftgate. Soft close is an optional function for the side doors. The electric-powered liftgate has a kick-sensor as optional equipment, making it possible to open it by just kicking the foot under the tailgate.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a large panoramic roof extending from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. The glass has an electrochromic function that lets you blend the glass to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

BMW iX M60

BMW iX M60

Interior

Seats

The BMW iX M60 accommodates five passengers with two front seats and a three-seat bench in the rear.

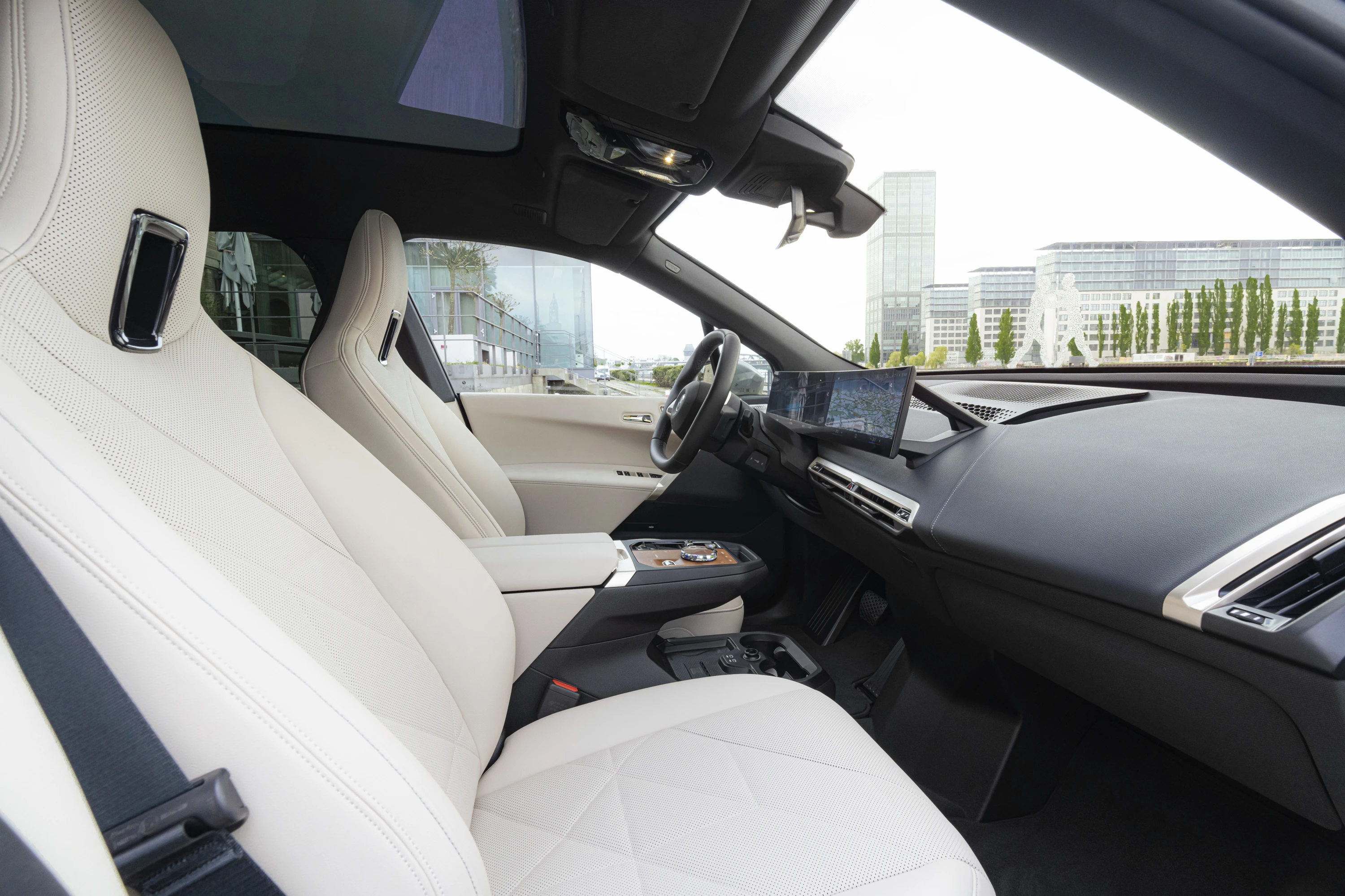

First Row Seats

The BMW iX M60 offers a single type of front seat.

The following functionalities are available on the standard seat:

Available in:

BMW iX M60

BMW iX M60

Second Row Seat

The second row features a standard three-seat bench with a 40:20:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Climate System

Two climate system options are available:

  • 2-zone climate system: Supports different temperatures for the driver and passenger.
  • 4-zone climate system: Supports different temperatures for the driver, passenger, and two separate passengers in the back seat

Comfort Features

The BMW iX M60 includes several features to enhance comfort and convenience:

  • Electrically Adjustable Steering Wheel
  • Wireless Phone Charging

User Interface and Control

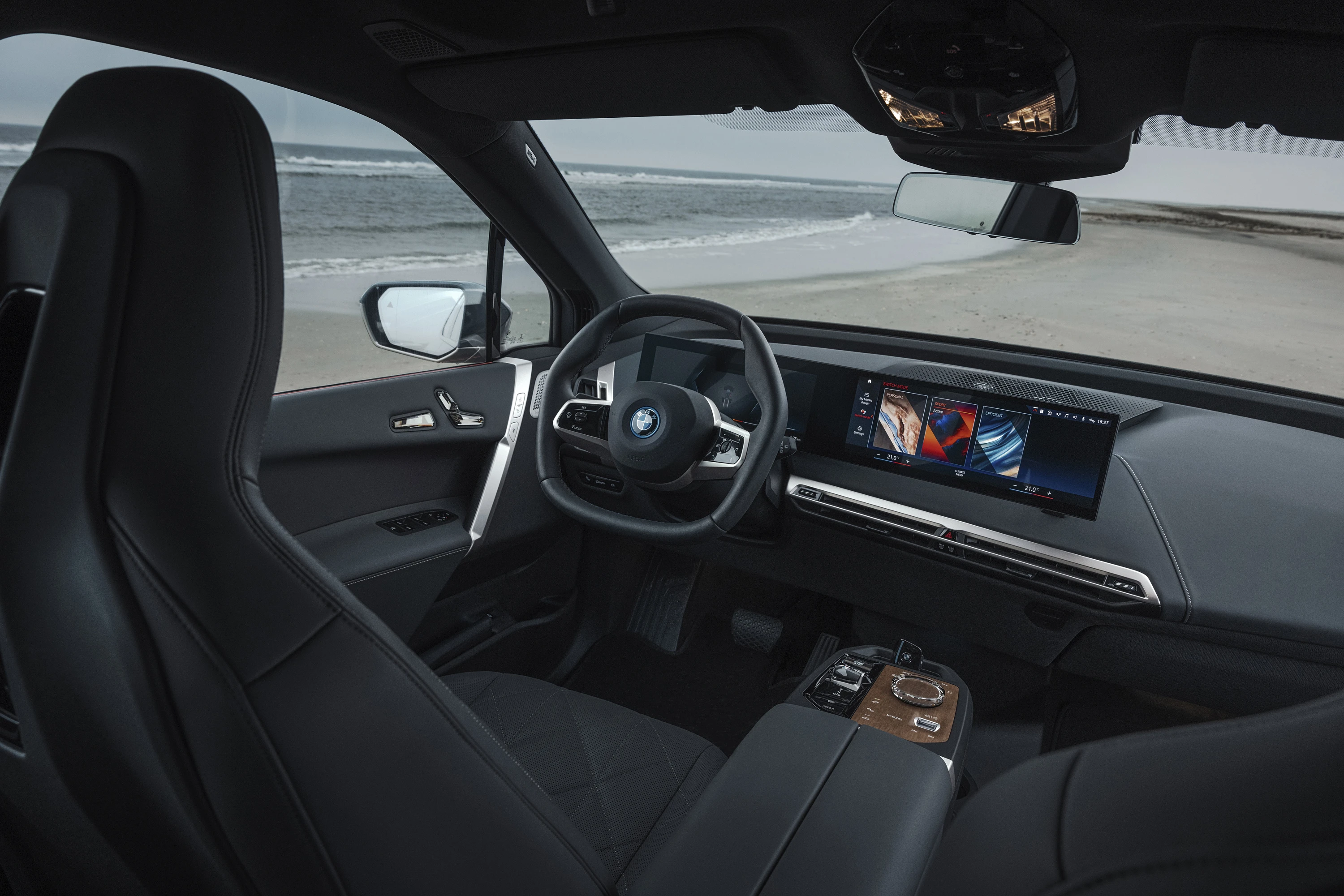

The BMW iX M60 has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

  • The screen behind the steering wheel on the left of the frame is 12.3 inches large
  • The touch screen at the right part of the shared frame is 14.9 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

BMW iX M60

BMW iX M60

Steering Wheel

The BMW iX M60 is equipped with a single type of steering wheel:

  • Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The BMW iX M60 supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

You can choose between two sound systems for the BMW iX M60:

  • Harman Kardon Surround Sound system: Features 18 speakers and delivers a maximum output of 655 watts.
  • Bowers & Wilkins Diamond surround sound system: Features 30 speakers and delivers a maximum output of 1615 watts.

Additionally, the model includes 6 USB-C connections as standard.

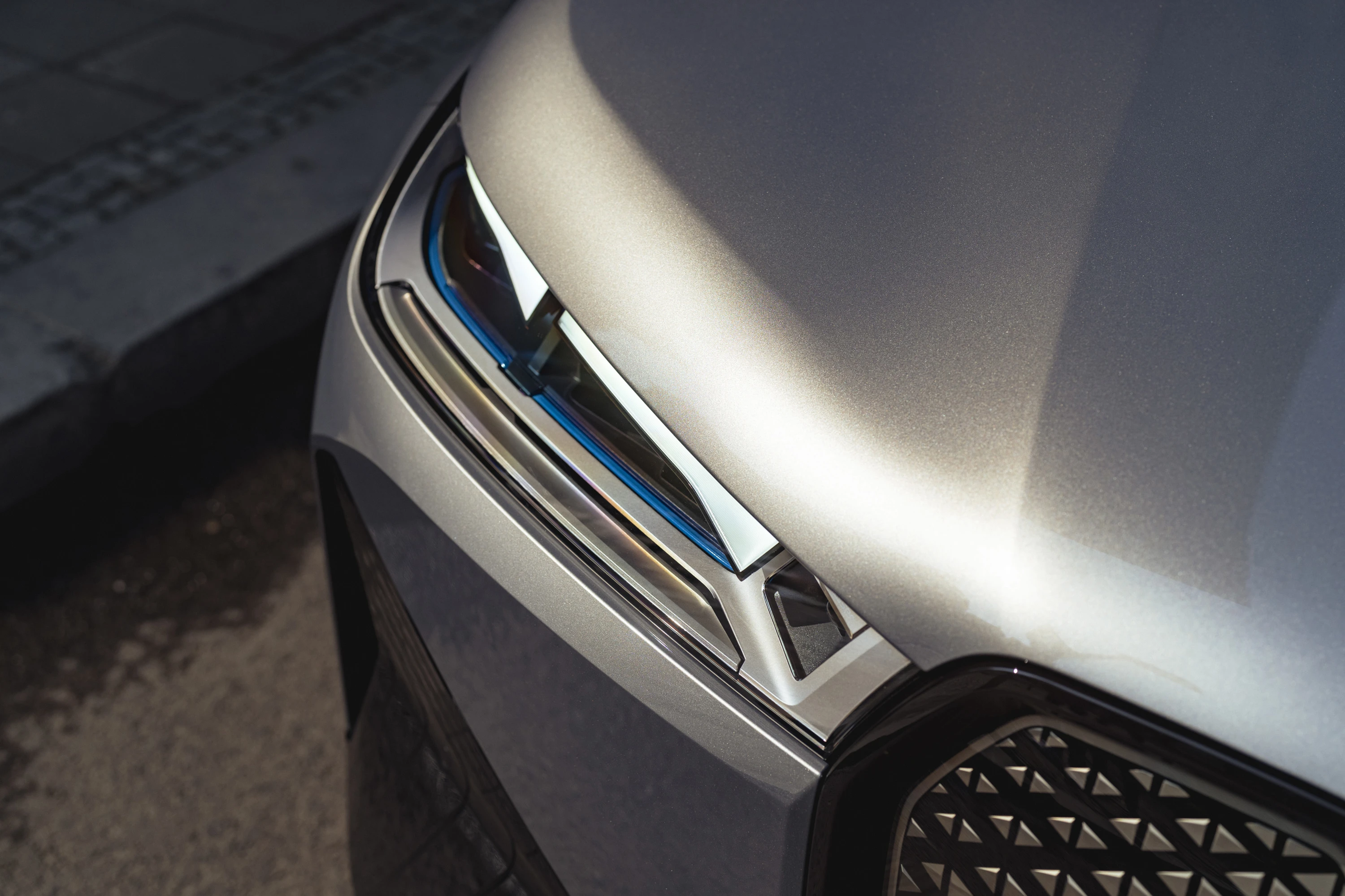

Lights

You can choose between two types of headlights for the BMW iX M60.

  • Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.
  • LED Matrix Headlights with Laser Technology: Also available as an option, these headlights combine the adaptive features of the LED Matrix system with laser technology for enhanced brightness and range, offering superior illumination and safety.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

BMW iX M60

BMW iX M60

Advanced Driver Assistance Systems

The BMW iX M60 features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the BMW iX M60, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the BMW iX M60, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the BMW iX M60, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Rear Cross Traffic Alert (RCTA): Optional on the BMW iX M60, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Forward Collision Warning (FCW): Optional on the BMW iX M60, this driver assist system helps drivers avoid or mitigate frontal collisions.

Automatic Emergency Braking (AEB): Standard on the BMW iX M60, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Optional on the BMW iX M60, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Driving Automation

The BMW iX M60 offers driving automation at levels 1 or 2, depending on the equipment level.

With the Driving Assistant level 1 system, you get the following driving automation features.

With the optional Driving Assistant Professional level 2 system, you get additional driving automation features to the ones listed above:

Security and Access Technologies

The BMW iX M60 is equipped with advanced security features to protect you and your vehicle. These include:

  • Keyless Entry and Start: With the standard keyless start and optional keyless entry, you can unlock and start the vehicle seamlessly without removing the key from your pocket or bag.

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 500 liters (17.7 CU FT). With the rear seat folded down, this expands to 1750 liters (61.8 CU FT). On the roof, you can load up to 75 kg (165.3 lbs). Optional roof rails are available for easy mounting of a roof box or rack.

The vehicle’s maximum weight is 3135 kg (6911 lbs), with a base weight of 2510 kg (5534 lbs). This allows for a maximum load of 625 kg (1378 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 2500 kg (5512 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
