MG IM5 Performance specifications

MY2026
Last modified: Mar 08, 2026

EVKX.net provides full specifications for MG IM5 Performance.

EVKX.net seeks to have the most complete specifications for MG IM5 Performance. Click on image above for full article, visit the image gallery for high-res images of MG IM5 Performance, visit the chargeinfo for MG IM5 Performance with chargecurve, visit extended range info for real world ranges.

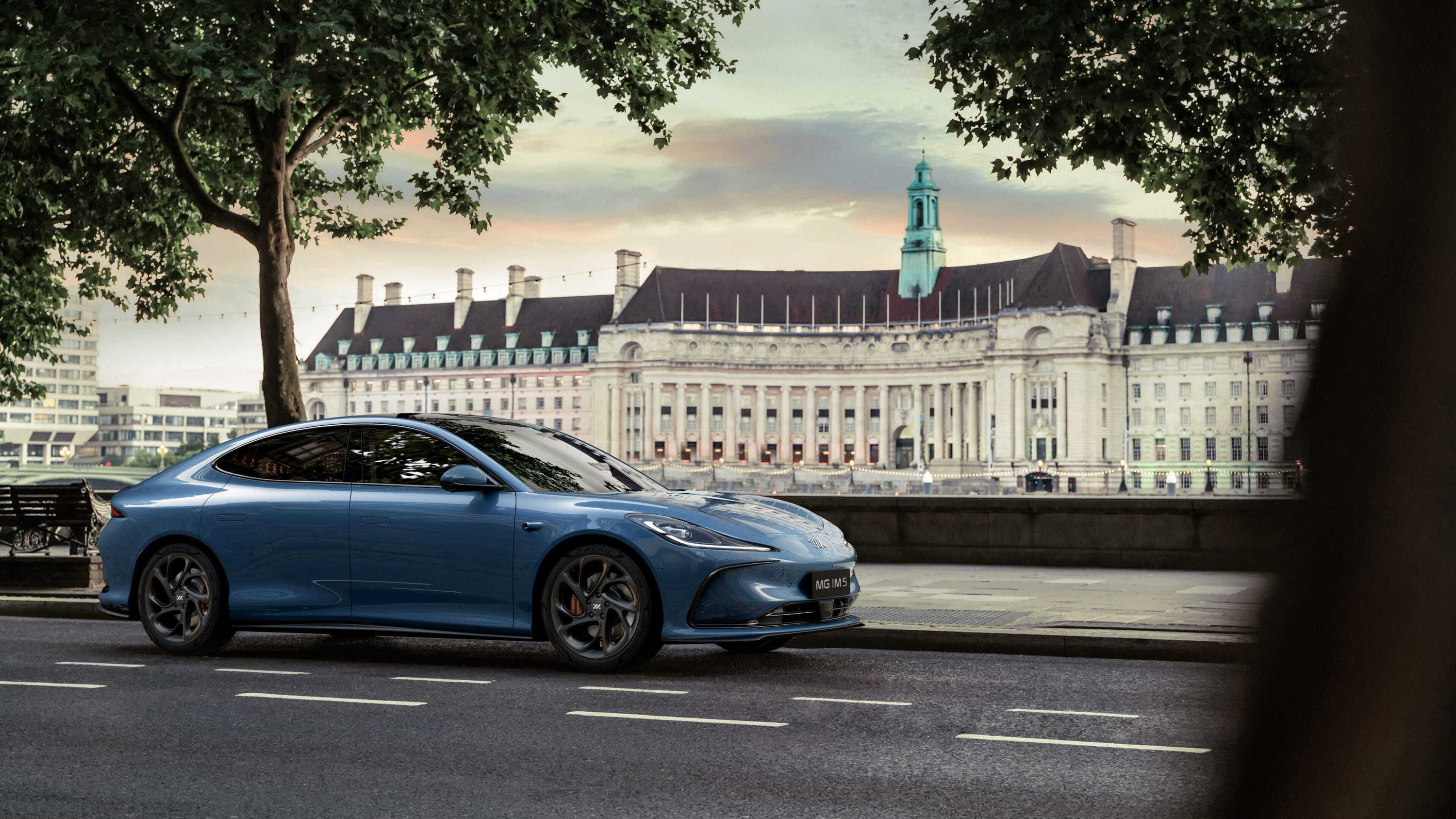

MG IM5 Performance

MG IM5 Performance

Performance

Power, torque and acceleration specifications

Power & Torque

Peak power
553 kW (752 hp / 742 bhp)
Electrical torque output
802 Nm (592 lb-ft)

Speed & Acceleration

Top speed
238 kph (148 mph)
0-100km/h (0-62 mph)
3.2 s

Range & Consumption

Official test cycle results and real-world estimates

Below you see the official range info. Visit our extended range info for detailed real world range examples. Visit our Range Guide to see what affects range and how the official range values are measured.
WLTP range
575 km
WLTP consumption
16.8 kWh/100km
WLTP consumption with charging loss
19.7 kWh/100km
x.models.Models

Battery & Charging

Battery specifications and charging capabilities

Battery gross
100 kWh
Battery net
96.5 kWh
Max DC charging
396 kW
Number of modules
0
Pack Configuration
204s1p
Nominal voltage
751 V
Cathode Materials
NMC

Chargeport

Charging port specifications by region

Spec
LeftRearCorner
Type chargeport Europe
CCS2

Dimensions

Basic Dimensions

Length
4931 mm (194.1")
Height
1474 mm (58.0")
Width excluding mirrors
1960 mm (77.2")
Width including mirrors
2077 mm (81.8")

Wheelbase & Track

Wheelbase
2950 mm (116.1")
Track width front
1698 mm (66.9")
Track width rear
1707 mm (67.2")

Aerodynamics

Drag coefficient
0.237
Frontal area
m²

Clearance & Turning

Approach Angle
14
Departure Angle
18
Turning circle
9.98 meter (392.9")

Cargo Capacity and Towing Ability

Weight, cargo capacity and towing specifications

Weight Specifications

2298 kg (5066 lbs)
2730 kg (6019 lbs)
432 kg (952 lbs)
0 kg (0 lbs)

Cargo Capacity

457 liter (16 cu-ft)
1290 liter (46 cu-ft)
18 liter (1 cu-ft)

Towing Capacity

1500 kg (3307 lbs)
750 kg (1653 lbs)
Maximum tow ball weight
75 kg (165 lbs)

Suspension

The model offers 2 suspension variants

Standard

Adaptive Features

Not available
Yes, standard equipment
Yes, standard equipment

Height Adjustment

Not available
Not available

Ground Clearance

151 mm (5.9")
151 mm (5.9")

Component Types

Monotube
Monotube
Coil
Coil
DoubleWishbone
Suspension type rear
Multilink

Air Suspension

Adaptive Features

Yes, standard equipment
Yes, standard equipment
Yes, standard equipment

Height Adjustment

Yes, standard equipment
Yes, standard equipment

Ground Clearance

121 mm (4.8")
181 mm (7.1")

Component Types

ElectronicallyControlled
ElectronicallyControlled
Air
Air
DoubleWishbone
Suspension type rear
Multilink

Interior

Seating Configuration
This model is available with a seat configuration with five seats.

Front seats

Seat Category

Seat type
Driver and Passenger Seat

Basic Adjustments

Seat depth adjustment Standard electric feature
Seat height adjustment Standard electric feature
Backrest angle adjustment Standard electric feature
Memory Standard driver, not available passenger

Advanced Adjustments

Seat cushion angle adjustment Standard electric driver, not available passenger
Height adjustable headrest Standard feature
Length adjustable headrest Not Available
Adjustable thigh support Not Available
Backrest side bolster adjustment Not Available
Seat cushion side bolster adjustment Not Available

Comfort Features

Footrest passenger Not Available
Leg support passenger Not Available
Electric lumbar adjustment Standard electric driver, not available passenger
Seat ventilation Standard feature
Massage function Standard driver, not available passenger

Second row seats

Seat Category

Seat type Three-seat bench

Basic Adjustments

Seat depth adjustment Not Available
Seat height adjustment Not Available
Backrest angle adjustment Standard feature
Memory Not Available

Advanced Adjustments

Seat cushion angle adjustment Not Available
Height adjustable headrest Standard feature
Length adjustable headrest Not Available
Adjustable thigh support Not Available
Backrest side bolster adjustment Not Available
Seat cushion side bolster adjustment Not Available

Comfort Features

Footrest passenger Not Available
Leg support passenger Not Available
Electric lumbar adjustment Not Available
Seat ventilation Not Available
Massage function Not Available

Driver Assistance

Advanced safety and driving assistance features

Lane keeping
Yes, standard equipment
Lane departure warning
Yes, standard equipment
Drowsiness Alert
Yes, standard equipment
Reversing camera
Yes, standard equipment
360 camera
Yes, standard equipment

Sensors & Cameras

Vehicle sensors and camera systems

Ultrasonic sensors
On bumper front
On bumper front
On bumper front left corner
On bumper front right corner
On bumper front left side
On bumper front right side
On bumper rear left side
On bumper rear right side
On bumper rear left corner
On bumper rear right corner
On bumper rear
On bumper rear
Cameras
Top center windshield
Front ((Optional))
On left wing mirror ((Optional))
On right wing mirror ((Optional))
Rear center ((Optional))
Radar sensors
Front
Left rear corner
Right rear corner
Lidar sensors
N/A

UI and controls

User interface and control specifications

Interface Controls

Head-up display
Not available
Voice control
Yes, standard equipment
Gesture control
Not available
Available screen layouts
1

Smartphone Integration

Yes, standard equipment
Yes, standard equipment
Yes, standard equipment

Infotainment

Audio System

Number of speakers
20
Total effect
W

Exterior

Paint colors

Artic White
Nevis Blue
Black Pearl
Rembrandt Gray
