Genesis GV60 AWD Performance

Genesis GV60 AWD Performance is an all-electric SUV with a WLTP range of up to 470 km (292 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The Genesis GV60 AWD Performance delivers a solid performance with a maximum power of 320 kW (435 hp / 429 bhp) and a total torque of 700 Nm (517 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 4 seconds and reaches a top speed of 235 km/h (146 mph), making it competitive within its class.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 77.4 kWh and a net usable capacity of 74.0 kWh, providing a 3.4 kWh buffer (4.4%) for battery protection. Operating at a nominal voltage of 697 volts, it qualifies as an 800-volt battery system. This high voltage is pivotal in enabling the system’s charging capabilities.

According to the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range is 470 km (292 miles), with an energy consumption rate of 15.7 kWh/100 km (3 mi/kWh). For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 233 kW. Charging from 0% to 100% takes approximately 39 minutes, while a more typical scenario from 10% to 80% takes 17 minutes with an average charging speed of 188 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 1% to 76%. This results in an effective charging speed, including time lost, of 149 kW, with each charging session taking about 22 minutes and 20 seconds. This efficient charging capability makes the Genesis GV60 AWD Performance a convenient option for long-distance travel.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 24 kWh/100 km, the trip would take approximately 9 hours and 27 minutes. This journey would require three charging stops from 1% to 76%, with a total charging time of 67 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 6 hours and 43 minutes using a home charging setup.

Charge Port

The location of the charge port is on the right rear side. This location makes it easy to use charge stations where you need to back up into the charger. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The Genesis GV60 AWD Performance features an all-wheel drive system powered by two motors, one on each axle. The motors used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers.

Brakes

Regenerative Braking

Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen.

The maximum regenerative power is 150 kW.

Exterior

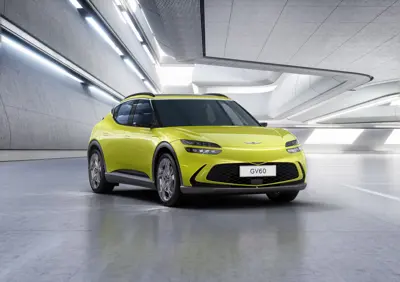

The Genesis GV60 AWD Performance, with dimensions of 4515 mm in length, 1890 mm in width, and 1580 mm in height, falls into the Compact SUVs category, also known as C-SUVs. These offer a balance between the practicality and maneuverability of smaller vehicles and the space and versatility of larger SUVs. The Genesis GV60 AWD Performance is available in a total of 10 paint colors, including several striking metallic options.

The Genesis GV60 AWD Performance offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

• 235/55 tires on 19" rims
• 255/45 tires on 20" rims
• 255/40 tires on 21" rims

Narrower wheels improve consumption and provide a longer range, while wider wheels offer better traction and handling.

The car has four regular doors and a hatchback-style liftgate.

There are two different roof options to select from. The standard is just a regular roof. As an option, you can order this model with a large panoramic roof extending over most of the areas from the front to the rear. This glass makes the car’s interior feel more spacious and bright, which can improve the mood and comfort of the occupant. It has an electric curtain that occupants can use to protect against the sun.

Additionally, you can order the car with tinted windows from the B-pillar backward, which enhances privacy and reduces glare and heat from the sun, making the interior more comfortable for passengers.

Interior

There is one seat type you can select in different materials.

Seats

The Genesis GV60 AWD Performance accommodates five passengers with two front seats and a three-seat bench in the rear.

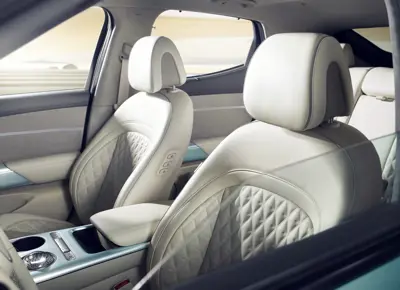

First Row Seats

The Genesis GV60 AWD Performance offers a single type of front seat.

The following functionalities are available on the **** seat:

• Fore-and-aft adjustment (electrically adjustable)
• Recline adjustment (electrically adjustable)
• Height adjustable headrest
• Heating
• Memory (standard for driver, not available for passenger)
• Adjustable lumbar support (electrically adjustable as an option)
• Ventilation (optional)

Available in:

• Black fabric/leatherette upholstering
• Black leather upholstering
• Black/White leather upholstering
• Gray leather upholstering
• Gray microfiber/leatherette upholstering
• Gray microfiber/leatherette upholstering

Second Row Seat

The second row features a standard three-seat bench with a 60:40 split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

• Recline adjustment (manually adjustable)
• Heating (standard for outer seats)

Climate System

There is one climate system available:

• 2-zone climate system: Supports different temperatures for the driver and passenger.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The Genesis GV60 AWD Performance includes several features to enhance comfort and convenience:

• Wireless Phone Charging

User Interface and Control

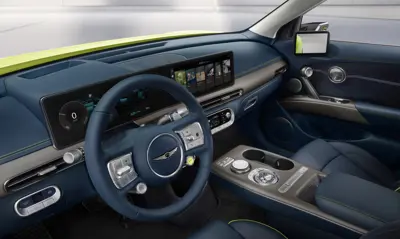

The Genesis GV60 AWD Performance has twin screens with information for the driver and passengers. Behind the steering wheel is a digital instrument cluster, and on the right part, there is an infotainment screen.

Key screen details:

• The screen behind the steering wheel on the left of the frame is 12.3 inches large
• The touch screen at the right part of the shared frame is 12.3 inches large

A head-up display is an optional system that projects speed and other important driver information onto the windshield.

Steering Wheel

The Genesis GV60 AWD Performance is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel features optional integrated heating for added comfort during cold weather. It also provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The Genesis GV60 AWD Performance supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The Genesis GV60 AWD Performance comes equipped with one sound system option:

• Bose Premium Sound System: Features eight speakers and delivers a maximum output of watts.

Additionally, the model includes 4 USB-C connections as standard. The model has 1 USB-A connections as standard.

Lights

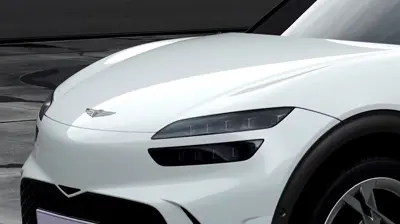

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The Genesis GV60 AWD Performance features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Anti-lock Braking System (ABS): Standard on the Genesis GV60 AWD Performance, this system prevents the wheels from locking during braking.

Electronic Stability Control (ESC): Standard on the Genesis GV60 AWD Performance, this system improves the vehicle’s stability and handling during sudden maneuvers or on slippery road conditions.

Lane-Keeping Assist (LKA): Standard on the Genesis GV60 AWD Performance, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Front Cross Traffic Assist (FCTA) : Standard on the Genesis GV60 AWD Performance, this driver assist system that helps drivers detect oncoming traffic when crossing an intersection or turning left or right from a stopped position.

Rear Cross Traffic Alert (RCTA): Standard on the Genesis GV60 AWD Performance, this system uses sensors to detect approaching vehicles from the side when backing out of a parking space or driveway.

Automatic Emergency Braking (AEB): Standard on the Genesis GV60 AWD Performance, this system autonomously applies the brakes to prevent or reduce the severity of a collision if the driver does not react in time.

Automatic Emergency Steering (AES): Standard on the Genesis GV60 AWD Performance, this system assists in avoiding collisions by automatically steering the vehicle in an emergency.

Blind-spot Monitoring (BSM) : Standard on the Genesis GV60 AWD Performance, this side assist system helps to detect traffic in blind spots.

Driving Automation

With the standard level 2 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.
• Automatic Lane Change (ALC)

Security and Access Technologies

The Genesis GV60 AWD Performance is equipped with essential security features to protect you and your vehicle, offering simplicity and reliability. These include:

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 432 liters (15.3 CU FT). On the roof, you can load up to 80 kg (176.4 lbs). Roof rails are standard for easy mounting of a roof box or rack.

The vehicle’s maximum weight is 2610 kg (5754 lbs), with a base weight of 2020 kg (4453 lbs). This allows for a maximum load of 590 kg (1301 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 1600 kg (3527 lbs), while for an unbraked trailer, it is 750 kg (1653 lbs).
