MG MG5 Electric Standard Range

MG MG5 Electric Standard Range is an all-electric station wagon with a WLTP range of up to 320 km (199 miles). EVKX.net has all the details.

We’ve organized this article into specific sections for easier navigation. Click the links below to jump to different areas or read on for the full article. Additionally, we offer an overview of the full specifications, an image gallery, detailed information about charging performance, and some online reviews. Our sections include:

• Performance
• Battery, Range, and Charging
• Drivetrain (suspension, brakes, steering)
• Exterior (paint colors, wheels ++)
• Interior (seats++)
• User interface and control
• Infotainment
• Lights
• Advanced driver-assistance systems
• Cargo Capacity and Towing Ability

Performance

The MG MG5 Electric Standard Range offers modest performance with a maximum power of 115 kW (156 hp / 154 bhp) and a total torque of 280 Nm (207 lb-ft). It accelerates from 0 to 100 km/h (0 to 62 mph) in 8.3 seconds and has a top speed of 185 km/h (115 mph), aligning more closely with traditional internal combustion engine vehicles.

Battery, Range, and Charging

The high-capacity battery has a gross capacity of 50.3 kWh and a net usable capacity of 46.0 kWh, providing a 4.3 kWh buffer (8.5%) for battery protection. This Lithium-Ion battery utilizes NMC (Nickel Manganese Cobalt) technology.

Under the WLTP (Worldwide Harmonized Light Vehicles Test Procedure) standard, the vehicle’s range varies between 320 to 310 km (199-193 miles), depending on the specific configuration and options, such as wheel size. Larger wheels can increase energy consumption and subsequently reduce the overall range. The vehicle’s energy consumption is rated at 14.4 kWh/100 km for the base model and 14.8 kWh/100 km for the top-tier model under the WLTP test cycle. For more details about the range, see real-world data and range listings on this model’s range and consumption page.

The vehicle supports fast DC charging with a maximum power of 87 kW. Charging from 0% to 100% takes approximately 62 minutes, while a more typical scenario from 10% to 80% takes 27 minutes with an average charging speed of 72 kW. Considering an additional 5 minutes for each charging stop due to driving interruptions, the optimal charging range is from 7% to 65%. This results in an effective charging speed, including time lost, of 63 kW, with each charging session taking about 26 minutes and 30 seconds.

In a theoretical 1000 km challenge, starting with a full battery and maintaining a constant speed of 120 km/h (75 mph) under ideal conditions with an assumed consumption rate of 23 kWh/100 km, the trip would take approximately 11 hours and 16 minutes. This journey would require eight charging stops from 8% to 58%, with a total charging time of 176 minutes.

Onboard Charger

The standard onboard charger supports up to 11 kW for Level 1 and Level 2 AC charging. This allows you to fully charge the battery from 0 to 100% in approximately 4 hours and 10 minutes using a home charging setup.

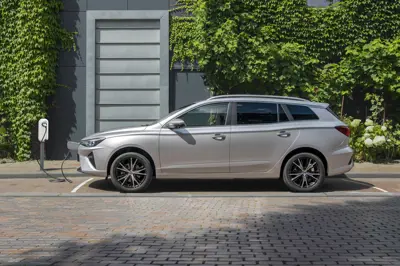

Charge Port

The location of the charge port is on the front. This location makes it easy to use charge stations where you need to park with the front in. Connector types vary by market: this model uses CCS Combo 1 in North America and CCS Combo 2 in Europe. For complete specifications for all markets, refer to the full specifications.

Drivetrain

The MG MG5 Electric Standard Range has a front-wheel drive system supported by one motor on the front axle. The motor used are Permanent Magnet Synchronous Motors.

Suspension

The front suspension is MacPherson Strut, and the rear suspension is Multilink. The standard suspension includes steel springs and hydraulic dampers. The suspension has a fixed height and damping. The ground clearance with this suspension is 115 mm.

Brakes

The MG MG5 Electric Standard Range is equipped with cast-iron disc brakes on both the front and rear.

Regenerative Braking

Regenerative braking is available in two modes. You can use one-pedal driving or you can coast and use the blended brakes to regen.

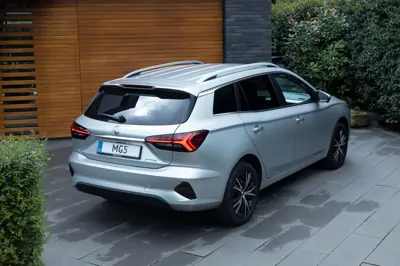

Exterior

The MG MG5 Electric Standard Range, with dimensions of 4600 mm in length, 1818 mm in width, and 1543 mm in height, falls into D-segment cars, also known as mid-size or family cars, offer more space, comfort, and features than smaller segments, making them suitable for a variety of drivers. The MG MG5 Electric Standard Range is available in a total of 4 paint colors, including several striking metallic options.

The MG MG5 Electric Standard Range offers multiple wheel options in different sizes, allowing you to customize your vehicle to suit your style and driving preferences. The available tire and wheel combinations include:

There is only one roof option for this model.

Interior

There is one seat type you can select in different materials.

Seats

The MG MG5 Electric Standard Range accommodates five passengers with two front seats and a three-seat bench in the rear.

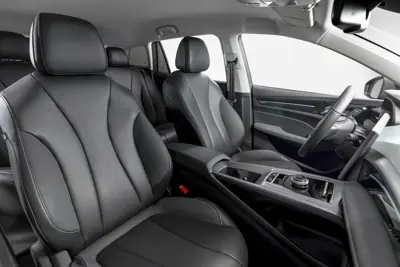

First Row Seats

The MG MG5 Electric Standard Range offers a single type of front seat.

The following functionalities are available on the standard seat:

• Fore-and-aft adjustment (electrically adjustable)
• Height adjustment (electrically adjustable)
• Seat cushion angle adjustment (electrically adjustable)

Available in:

• Black fabric upholstering
• Gray leatherette upholstering
• Black leatherette upholstering

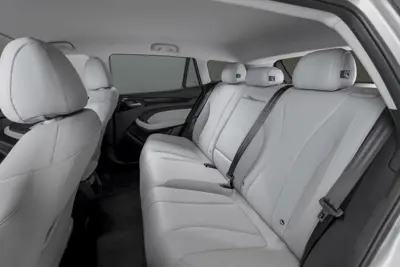

Second Row Seat

The second row features a standard three-seat bench with a split, allowing each section to fold separately to increase cargo space. Additional functionalities include:

Climate System

There is one climate system available:

• 1-zone climate system: Supports only controlling one shared zone for the whole car.

A standard heat pump is included, which can save significant energy that the EV would otherwise use for heating in cold weather.

Comfort Features

The MG MG5 Electric Standard Range includes several features to enhance comfort and convenience:

• Wireless Phone Charging

User Interface and Control

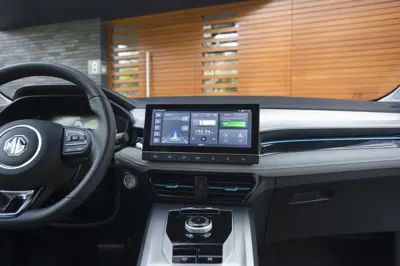

The MG MG5 Electric Standard Range has multiple integrated screens. Behind the steering wheel is a digital instrument cluster, and in the center console, there is one infotainment screen at the top of the center console.

Key screen details:

• The screen behind the steering wheel integrated into the dashboard is 7.0 inches large
• The touch screen at the top of the center console is 10.3 inches large

The model does not include a head-up display.

Steering Wheel

The MG MG5 Electric Standard Range is equipped with a single type of steering wheel:

• Circular Steering Wheel: This steering wheel provides intuitive control over the infotainment system, allowing you to easily adjust the volume, change music tracks, and manage other key functions.

Mirrors

Both the exterior and interior mirrors use conventional mirror technology to provide a clear view of the area behind the vehicle.

This model comes equipped with voice control as standard, allowing you to manage various functions through voice commands.

Infotainment

Navigation System

With the a standard in-car navigation system, you have all the assistance you need to reach your destination effortlessly.

Phone Mirroring

The MG MG5 Electric Standard Range supports Android Auto and Apple CarPlay, allowing you to mirror your phone’s screen on the car’s display. This functionality enables you to run apps like Google Maps or Waze directly from your phone.

Sound System

The MG MG5 Electric Standard Range comes equipped with one sound system option:

• : Features six speakers and delivers a maximum output of watts.

Additionally, the model includes 2 USB-C connections as standard. The model has 2 USB-A connections as standard.

Lights

Standard Headlights: These use advanced LED technology, providing bright and efficient illumination.

The taillights use LED technology, ensuring both high visibility and energy efficiency.

Advanced Driver Assistance Systems

The MG MG5 Electric Standard Range features a range of standard and optional advanced driver assistance systems (ADAS) designed to enhance safety and comfort.

Safety Systems

Lane-Keeping Assist (LKA): Standard on the MG MG5 Electric Standard Range, this system helps prevent the vehicle from drifting out of its lane. It also includes a Lane Departure Warning system to alert the driver if the vehicle veers out of the lane.

Driving Automation

With the standard level 2 system, you get the following driving automation features.

• Adaptive Cruise Control (ACC)
• Lane Centering Assist (LCA) /AutoSteer: keeps the car in your lane and slows down if needed in traffic. The system limits how long you can drive without touching the steering wheel.

Security and Access Technologies

The MG MG5 Electric Standard Range is equipped with essential security features to protect you and your vehicle, offering simplicity and reliability. These include:

Cargo Capacity and Towing Ability

The trunk offers a cargo capacity of 479 liters (16.9 CU FT). With the rear seat folded down, this expands to 1367 liters (48.3 CU FT). On the roof, you can load up to 75 kg (165.3 lbs).

The vehicle’s maximum weight is 2017 kg (4447 lbs), with a base weight of 1562 kg (3444 lbs). This allows for a maximum load of 455 kg (1003 lbs), including the driver and passengers. Note that some options may increase the base weight and reduce the maximum loading capacity.

A towbar can be added to the vehicle. The maximum permissible weight for a braked trailer is 500 kg (1102 lbs), while for an unbraked trailer, it is 500 kg (1102 lbs).
