BMW iX3 50 xDrive charging curve & performance
MY2026
Last modified: Aug 11, 2026
Below is the charging curve for BMW iX3 50 xDrive, illustrating the charging speed at various battery levels. Additionally, graphs for range and time provide comprehensive details on charging performance.
Charging Highlights
Peak DC Speed
400 kW
Battery Capacity
113.4 kWh
Architecture
699 V
113.4 kWh — 112.2 kWh
High Current Charging
The maximum charging speed of 400 kW requires more current than most chargers can deliver. Although many chargers are rated for power levels above BMW iX3 50 xDrive kW, they are often limited to 500 amps—insufficient to reach the full charging power, which requires 550 amps.
Charging Performance
Average charging speed 0 - 100%
146.9 kW
Average charging speed 10-100%
145.4 kW
Average charging speed 10-80%
241.0 kW
Advanced Metrics
Max C-Rate
3.54 C
Average C-Rate
2.08 C
Optimum charging area
5% – 61%
Time Analysis
Range Analysis
Key Insights
Optimum charging speed included 5 minutes loss
212.6 kW
Optimum charge stop time
17m 10s
Charging time 10-80%
18 m 56 s

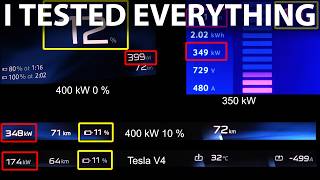

Charging Tests from Content Creators
Some of our favorite content creators have tested this model's charging performance. Watch their videos for detailed real-world charging analysis.
Charging Speed Analysis
| SOC Range | Charger output (kW) | Total Time | Energy Added |
|---|---|---|---|
| 0-100% | 146.9 kW | 44 m 24 s | 108.7 kWh |
| 10-100% | 145.4 kW | 40 m 21 s | 97.8 kWh |
| 10-80% | 241.0 kW | 18 m 56 s | 76.1 kWh |
Range Added Per Minute by Driving Cycle
| SOC Range | EPA | WLTP | 70 mph | 120 km/h |
|---|---|---|---|---|
| 0-100% | 15.2 km (9.4 mi) | 17.6 km (10.9 mi) | 12.6 km (7.8 mi) | 11.7 km (7.3 mi) |
| 10-100% | 15.1 km (9.4 mi) | 17.4 km (10.8 mi) | 12.4 km (7.7 mi) | 11.5 km (7.1 mi) |
| 10-80% | 24.9 km (15.5 mi) | 28.8 km (17.9 mi) | 20.6 km (12.8 mi) | 19.1 km (11.9 mi) |
Charging Curve Data (0–100% SOC)
| SOC | Charger output | Total time from 0% | Energy into battery |
|---|---|---|---|
|
0 |
50 kW | 00:00:00 | 0 kWh |
|
1 |
85 kW | 00:01:01 | 1.1 kWh |
|
2 |
120 kW | 00:01:41 | 2.2 kWh |
|
3 |
155 kW | 00:02:11 | 3.3 kWh |
|
4 |
190 kW | 00:02:35 | 4.3 kWh |
|
5 |
225 kW | 00:02:54 | 5.4 kWh |
|
6 |
260 kW | 00:03:11 | 6.5 kWh |
|
7 |
295 kW | 00:03:26 | 7.6 kWh |
|
8 |
330 kW | 00:03:39 | 8.7 kWh |
|
9 |
365 kW | 00:03:51 | 9.8 kWh |
|
10 |
400 kW | 00:04:02 | 10.9 kWh |
|
11 |
401 kW | 00:04:12 | 12.0 kWh |
|
12 |
402 kW | 00:04:23 | 13.0 kWh |
|
13 |
402 kW | 00:04:33 | 14.1 kWh |
|
14 |
402 kW | 00:04:43 | 15.2 kWh |
|
15 |
402 kW | 00:04:53 | 16.3 kWh |
|
16 |
400 kW | 00:05:04 | 17.4 kWh |
|
17 |
398 kW | 00:05:14 | 18.5 kWh |
|
18 |
395 kW | 00:05:24 | 19.6 kWh |
|
19 |
393 kW | 00:05:35 | 20.7 kWh |
|
20 |
391 kW | 00:05:45 | 21.7 kWh |
|
21 |
389 kW | 00:05:56 | 22.8 kWh |
|
22 |
388 kW | 00:06:06 | 23.9 kWh |
|
23 |
386 kW | 00:06:17 | 25.0 kWh |
|
24 |
384 kW | 00:06:28 | 26.1 kWh |
|
25 |
383 kW | 00:06:39 | 27.2 kWh |
|
26 |
378 kW | 00:06:49 | 28.3 kWh |
|
27 |
374 kW | 00:07:00 | 29.3 kWh |
|
28 |
370 kW | 00:07:11 | 30.4 kWh |
|
29 |
365 kW | 00:07:23 | 31.5 kWh |
|
30 |
359 kW | 00:07:34 | 32.6 kWh |
|
31 |
353 kW | 00:07:46 | 33.7 kWh |
|
32 |
347 kW | 00:07:57 | 34.8 kWh |
|
33 |
341 kW | 00:08:09 | 35.9 kWh |
|
34 |
340 kW | 00:08:21 | 37.0 kWh |
|
35 |
340 kW | 00:08:33 | 38.0 kWh |
|
36 |
340 kW | 00:08:46 | 39.1 kWh |
|
37 |
339 kW | 00:08:58 | 40.2 kWh |
|
38 |
341 kW | 00:09:10 | 41.3 kWh |
|
39 |
342 kW | 00:09:22 | 42.4 kWh |
|
40 |
338 kW | 00:09:34 | 43.5 kWh |
|
41 |
336 kW | 00:09:46 | 44.6 kWh |
|
42 |
331 kW | 00:09:59 | 45.7 kWh |
|
43 |
325 kW | 00:10:11 | 46.7 kWh |
|
44 |
307 kW | 00:10:24 | 47.8 kWh |
|
45 |
282 kW | 00:10:38 | 48.9 kWh |
|
46 |
269 kW | 00:10:53 | 50.0 kWh |
|
47 |
265 kW | 00:11:09 | 51.1 kWh |
|
48 |
263 kW | 00:11:24 | 52.2 kWh |
|
49 |
261 kW | 00:11:40 | 53.3 kWh |
|
50 |
260 kW | 00:11:56 | 54.4 kWh |
|
51 |
258 kW | 00:12:12 | 55.4 kWh |
|
52 |
253 kW | 00:12:28 | 56.5 kWh |
|
53 |
234 kW | 00:12:45 | 57.6 kWh |
|
54 |
245 kW | 00:13:02 | 58.7 kWh |
|
55 |
240 kW | 00:13:19 | 59.8 kWh |
|
56 |
239 kW | 00:13:36 | 60.9 kWh |
|
57 |
236 kW | 00:13:53 | 62.0 kWh |
|
58 |
232 kW | 00:14:11 | 63.0 kWh |
|
59 |
229 kW | 00:14:29 | 64.1 kWh |
|
60 |
226 kW | 00:14:47 | 65.2 kWh |
|
61 |
223 kW | 00:15:05 | 66.3 kWh |
|
62 |
221 kW | 00:15:24 | 67.4 kWh |
|
63 |
219 kW | 00:15:43 | 68.5 kWh |
|
64 |
216 kW | 00:16:01 | 69.6 kWh |
|
65 |
209 kW | 00:16:21 | 70.7 kWh |
|
66 |
200 kW | 00:16:41 | 71.7 kWh |
|
67 |
194 kW | 00:17:02 | 72.8 kWh |
|
68 |
195 kW | 00:17:23 | 73.9 kWh |
|
69 |
185 kW | 00:17:45 | 75.0 kWh |
|
70 |
172 kW | 00:18:08 | 76.1 kWh |
|
71 |
166 kW | 00:18:32 | 77.2 kWh |
|
72 |
159 kW | 00:18:58 | 78.3 kWh |
|
73 |
152 kW | 00:19:24 | 79.4 kWh |
|
74 |
147 kW | 00:19:52 | 80.4 kWh |
|
75 |
143 kW | 00:20:20 | 81.5 kWh |
|
76 |
138 kW | 00:20:49 | 82.6 kWh |
|
77 |
133 kW | 00:21:20 | 83.7 kWh |
|
78 |
127 kW | 00:21:51 | 84.8 kWh |
|
79 |
123 kW | 00:22:24 | 85.9 kWh |
|
80 |
117 kW | 00:22:59 | 87.0 kWh |
|
81 |
111 kW | 00:23:35 | 88.0 kWh |
|
82 |
107 kW | 00:24:13 | 89.1 kWh |
|
83 |
105 kW | 00:24:52 | 90.2 kWh |
|
84 |
105 kW | 00:25:31 | 91.3 kWh |
|
85 |
102 kW | 00:26:11 | 92.4 kWh |
|
86 |
99 kW | 00:26:52 | 93.5 kWh |
|
87 |
94 kW | 00:27:34 | 94.6 kWh |
|
88 |
87 kW | 00:28:20 | 95.7 kWh |
|
89 |
81 kW | 00:29:09 | 96.7 kWh |
|
90 |
74 kW | 00:30:02 | 97.8 kWh |
|
91 |
67 kW | 00:31:00 | 98.9 kWh |
|
92 |
63 kW | 00:32:04 | 100.0 kWh |
|
93 |
59 kW | 00:33:11 | 101.1 kWh |
|
94 |
55 kW | 00:34:24 | 102.2 kWh |
|
95 |
51 kW | 00:35:42 | 103.3 kWh |
|
96 |
46 kW | 00:37:07 | 104.4 kWh |
|
97 |
42 kW | 00:38:40 | 105.4 kWh |
|
98 |
38 kW | 00:40:22 | 106.5 kWh |
|
99 |
34 kW | 00:42:16 | 107.6 kWh |
|
100 |
30 kW | 00:44:24 | 108.7 kWh |
Charger output is the power the charging station delivers. Energy into battery is what actually arrives: around 5% is lost to heat and conversion along the way, and charging times are calculated from that reduced figure. Dividing energy by time therefore gives a value roughly 5% below the charger output column. The 5% is an estimate — real loss varies with temperature, state of charge and the charger used. Read more about charging loss
